3. FRONT PANEL DESCRIPTION

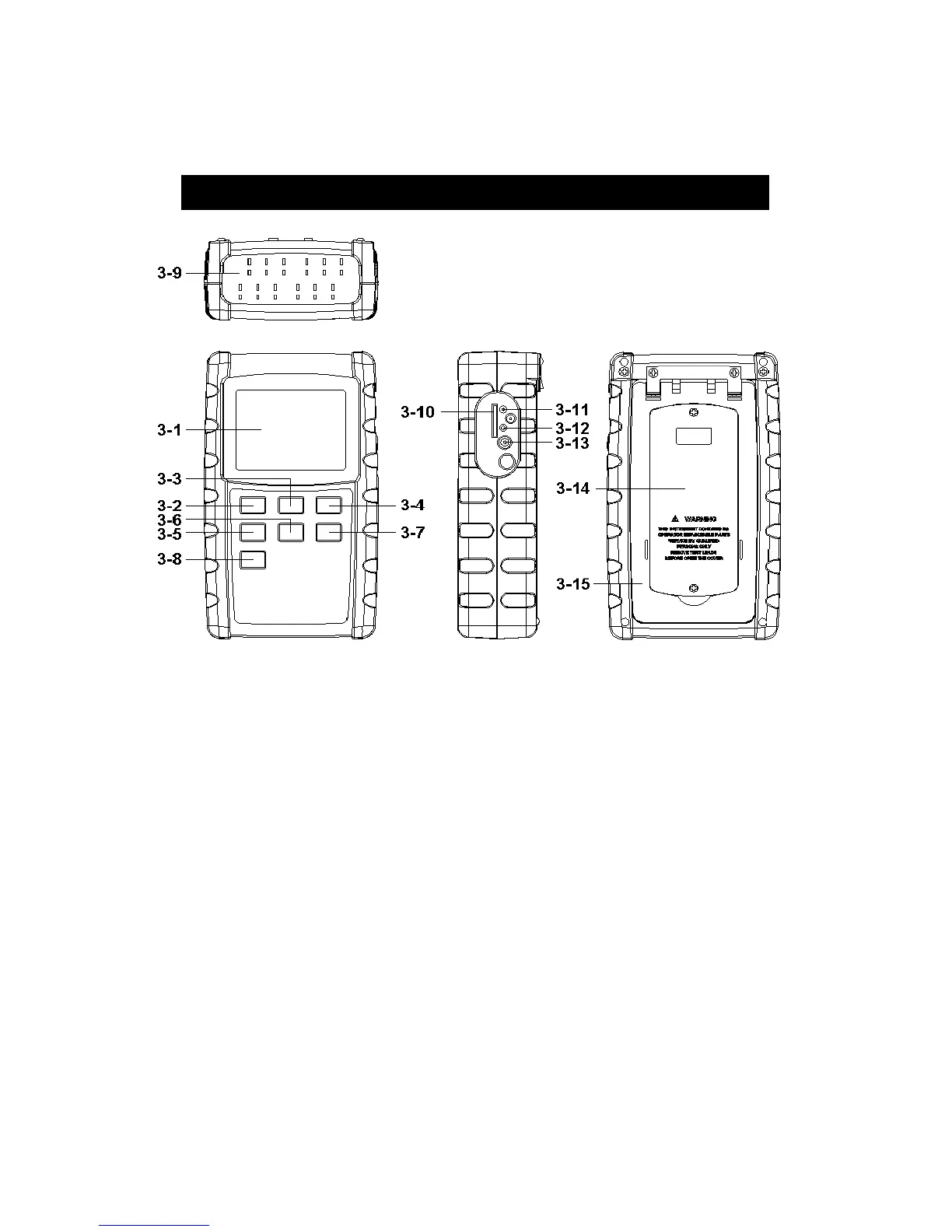

Fig. 1

3-1 Display.

3-2 Power Button ( ESC, Backlight Button )

3-3 Hold Button ( Next Button )

3-4 REC Button ( Enter Button )

3-5 Type Button ( Button )▲

3-6 Page Button ( Button )▼

3-7 Logger Button ( OFFSET Button, Sampling time check Button

3-8 SET Button ( Time check Button )

3-9 T1 to T12 input socket

3-10 SD card socket

3-11 RS232 socket

3-12 Reset button

3-13 DC 9V power adapter socket

3-14 Battery Cover/Battery compartment

3-15 Stand
