24/7 Technical Support—800.523.94664
|
Lutron®

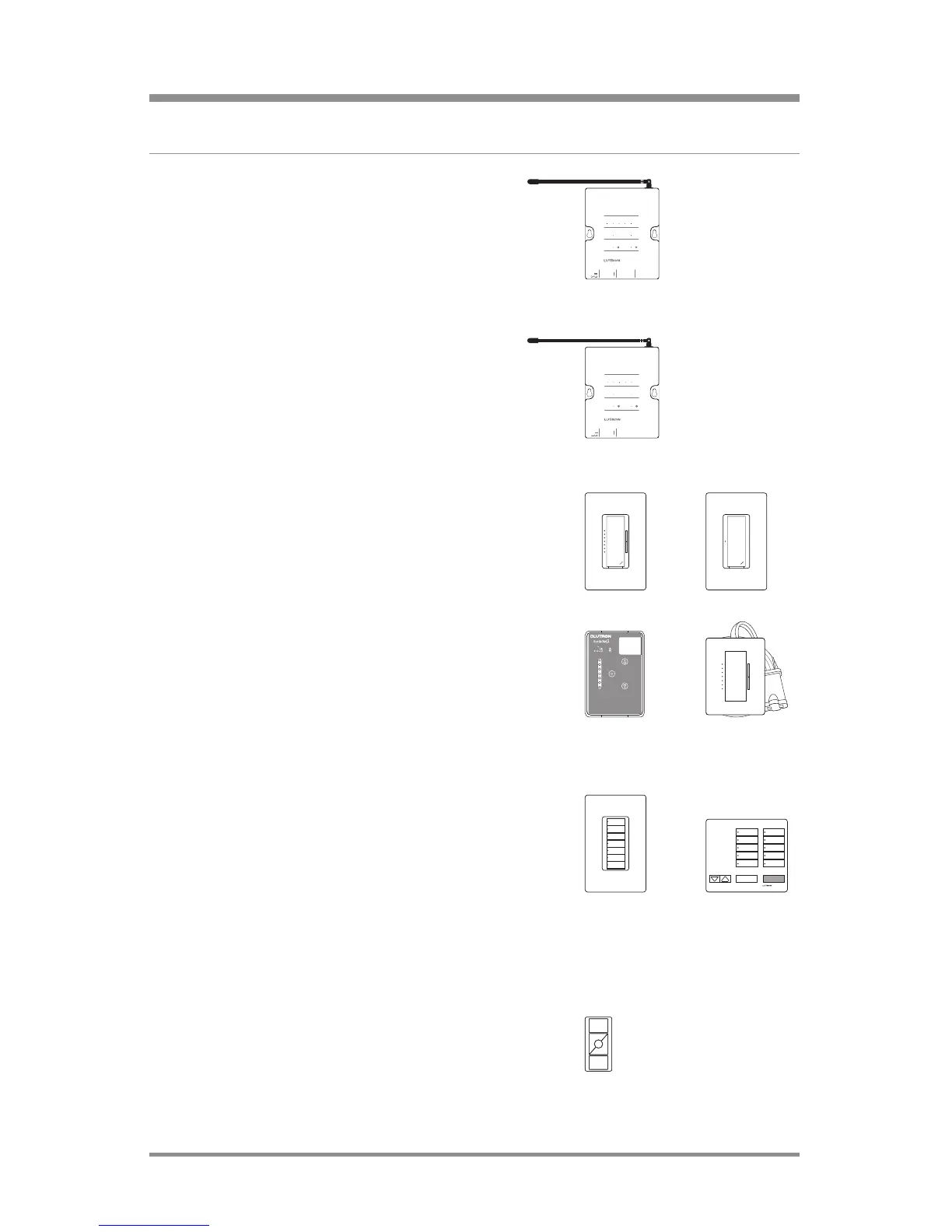

manual programming system components*
Main Repeater
Supports system setup, allows integration
and PC connectivity (ethernet, RS-232),
and ensures error-free communication
between system components.
Auxiliary Repeater
Extends RF coverage to ensure error-
free communication between system
components.
Dimmer/Switch
Replaces a standard light switch.
Dimmers allows smooth transitions
of light and create unique lighting
environments.
seeTouch
® Keypad
Wall-Mount—controls lights and
Shades / Draperies throughout the home.
Tabletop—convenient, portable control of
lights and Shades/Draperies throughout
the home.
Pico
® Wireless Control
Battery-powered, retrofit, portable Keypad
for convenient control of lights and
Shades/Draperies throughout the home.
Plug-In
Module
Lamp
Dimmer
overview
Dimmer
Main Repeater
Auxiliary Repeater
Switch
seeTouchR
Wall-Mount
Keypad
seeTouchR
Tabletop
Keypad
PicoR Wireless
Control
* some systems do not require every component listed
120 V 50 / 60 Hz
RR-3PD-1
®
COOPERSBURG, PA 18036 USA
I
H
300 VA /
200 W
300 W
LUTRON LUTRON
Setup
Wired
RF
Communication
Repeater Status
1
3
4
2
M
Power
Repeater Link
COM
9 V
1
N / C
MUX
MUX
2
3
4
AddTest
USB
Integrate
Program / Integrate
RS232
Ethernet
Main Repeater
Add
Test
Setup
Wired
RF
Communication
Repeater Status
1
3
4
2
M
Auxiliary Repeater
Power
Repeater Link
COM
9 V
1
N / C
MUX
MUX
2
3
4
Add
Test
Shade
Open
Close
