38
Mode gets converted to manual measurement mode when you press on the Auto button while in the
automatic measurement mode. It is possible to stop automatic measurement function when “Auto
Measurement” category is selected as “OFF” while in the user Setup mode. (Refer to “9.5. User SETUP
mode” part)
① Eye height adjustment.
② Measurement location and focusing
Outer line arrangement ring
Pupil
(Minimum pupilloscope
Φ2.0mm)
Manual/Automatic Iris

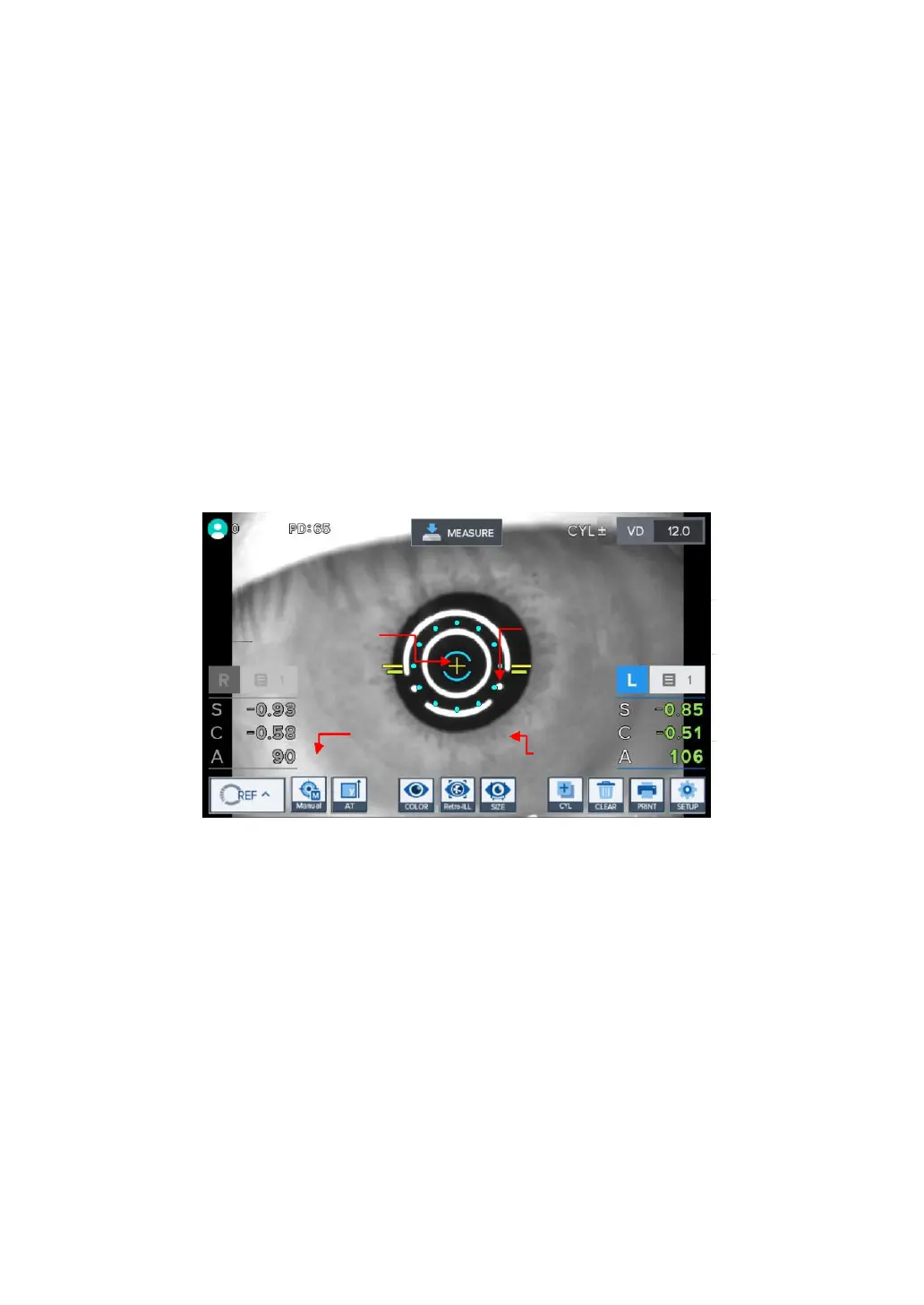

[REF manual measurement mode screen]
③ Measurement
- Press on the measurement button.
- Measurement is carried out continuously when measurement button is pressed on continually.
- Measurement result is indicated on the monitor when measurement is completed.
- Previous measurement result is indicated when carrying out continuous measurement.
To Next Page
