LX Era
Advanced operation
Document name: LX EUM
Document revision: R1
4.5 Airport navigation page
This page is intended exclusively for navigating towards a single airport, from the .af file loaded
into the Era. The navigation screen shows turnpoints, airports and airspaces on the map area.
The Airpor t navigation page is set up in much the same way as the Turnpoint navigation page,
so be sure to check the previous section for additional information.
The layout of the Airport navigation page is identical to the Turnpoint navigation page. At the
top, we have APT written, noting the page we’re currently on, and the name of the chosen
airport immediately below.
Below the name of the select airport is the steering course (relative bearing). All of the
mentioned parameters form the header of the navigation page, shared across all navigation
pages.

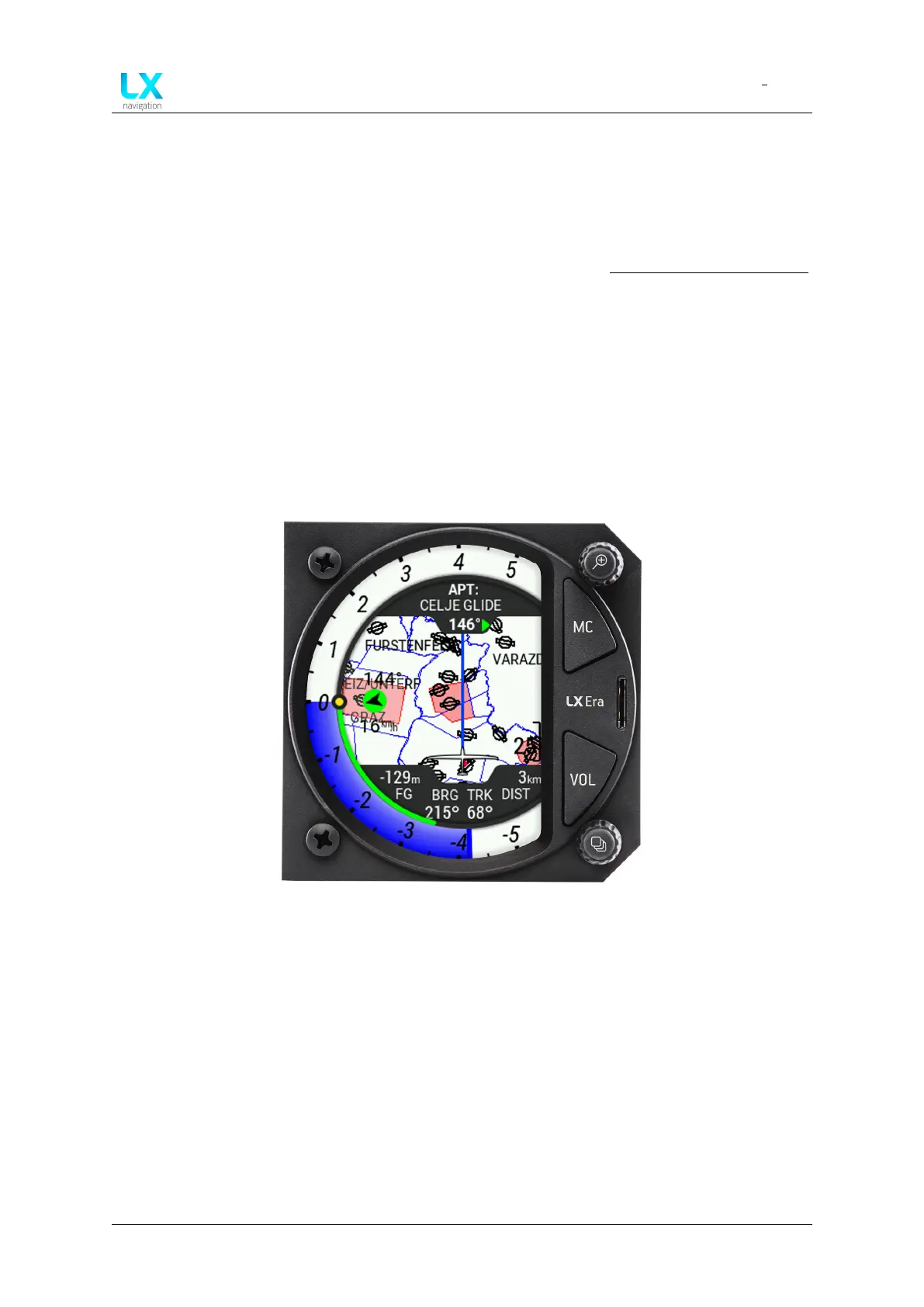

Figure 39. Airport navigation page overview
Below the central map display, the same NavBoxes are used as with the Turnpoint navigation
page, forming the footer of the navigation page, also shared across all navigation pages.
Pressing the upper push-rotary knob will open the APT info page, showing Bearing, Distance,
Frequency, Final glide, Elevation and Runway direction.
Pressing the lower push-rotary knob, you will enter the ’Select airport’ sub-page. Here, a
selection of airports will be shown, along with distance and bearing, as well as steering course
(relative bearing) as described earlier, with an arrow. These points can be sorted by either
Distance, Name, or ICAO code.
Device manual Public 33
