LX Era
Advanced operation
Document name: LX EUM
Document revision: R1
4.6 Task navigation page
This page is intended for task navigation. A task can be made using turnpoints, airports or a
combination of both. It can be uploaded from the Zeus, a third party device via Bluetooth as
a declaration, downloaded from the web, created on the device, or loaded from the .cup file.
On second seat devices, the task can be sent from the main (front seat) device.
In order to use this page to the fullest extent, be sure to have the latest .af and .cup files
available. This navigation screen shows turnpoints, airports and airspaces on the map area,
as well as the task, with task sectors and task lines, connecting the task sectors.

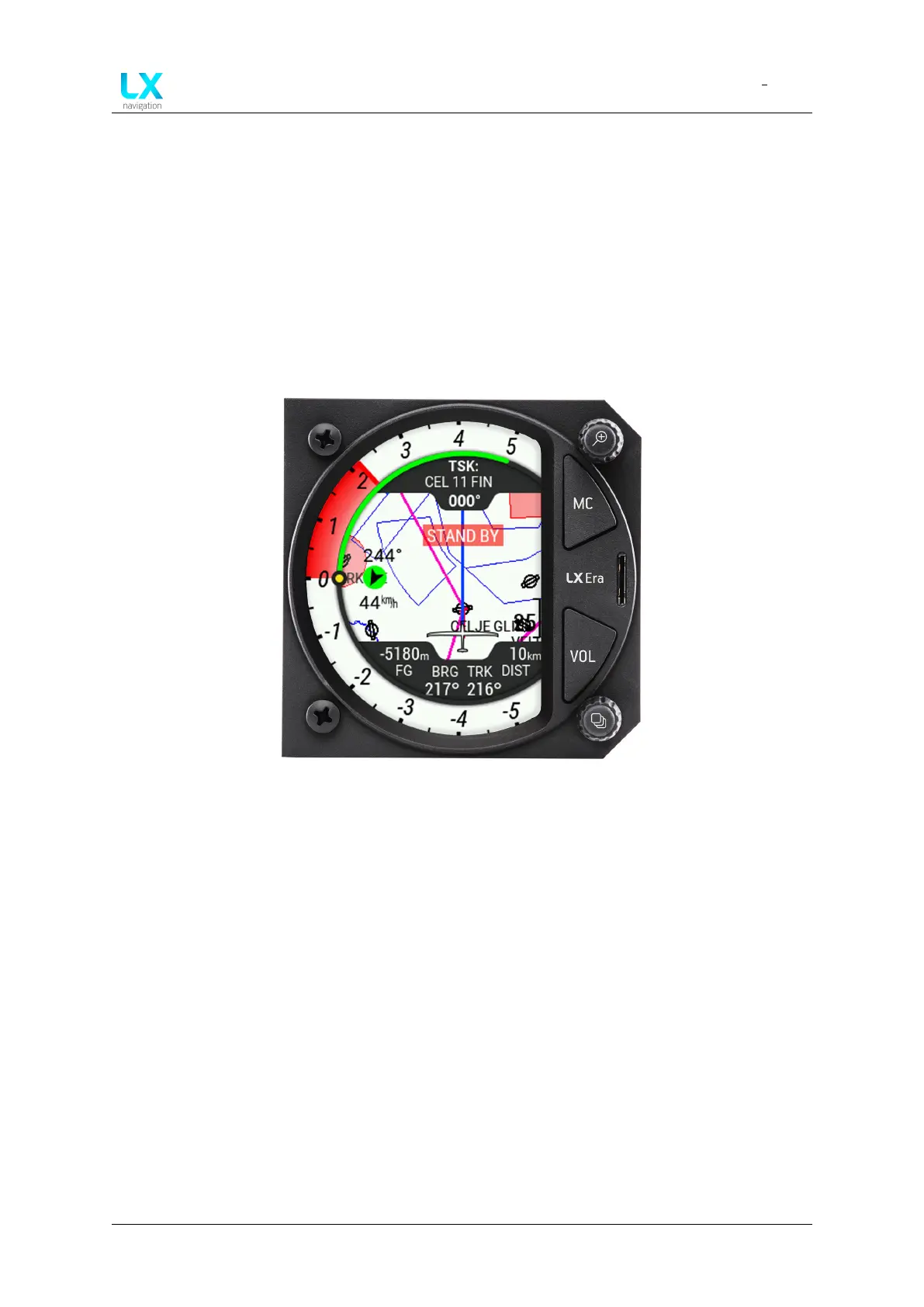

Figure 42. Task navigation page overview
Above the glider, on the map part of the screen, a box with either ’STAND BY’, ARMED’,
’FINISHED’ or no box can be shown. These show the current state of your task. ’STAND
BY’ denotes that the task is in stand by mode, meaning that if you cross the start line,
task navigation will not start. ARMED’ denotes that the task is armed, meaning task naviga-
tion will start, once the finish line is crossed. ’FINISHED’ indicates the task has been completed.
Pressing the upper push-rotary knob will open the ’Task options’ sub-page with the following
settings:
Edit task - Opens the ’Edit task’ sub-page, explained in detail below
Delete task - Deletes the task
Arm - Will arm the task. If the task is not armed, crossing the start line will not start the
task navigation
Reset - Will reset the task to the state prior to crossing the start line
Next turnpoint - Will change the navigation point to the next one in line
Previous turnpoint - Will change the navigation to the previous one
Load task - Will open the Load task setup menu
Device manual Public 35
