2. System Components
The system consists of the console, compression garment(s), and hoses that
deliver the air from the console to the garment.
2.1. Console and Accessories

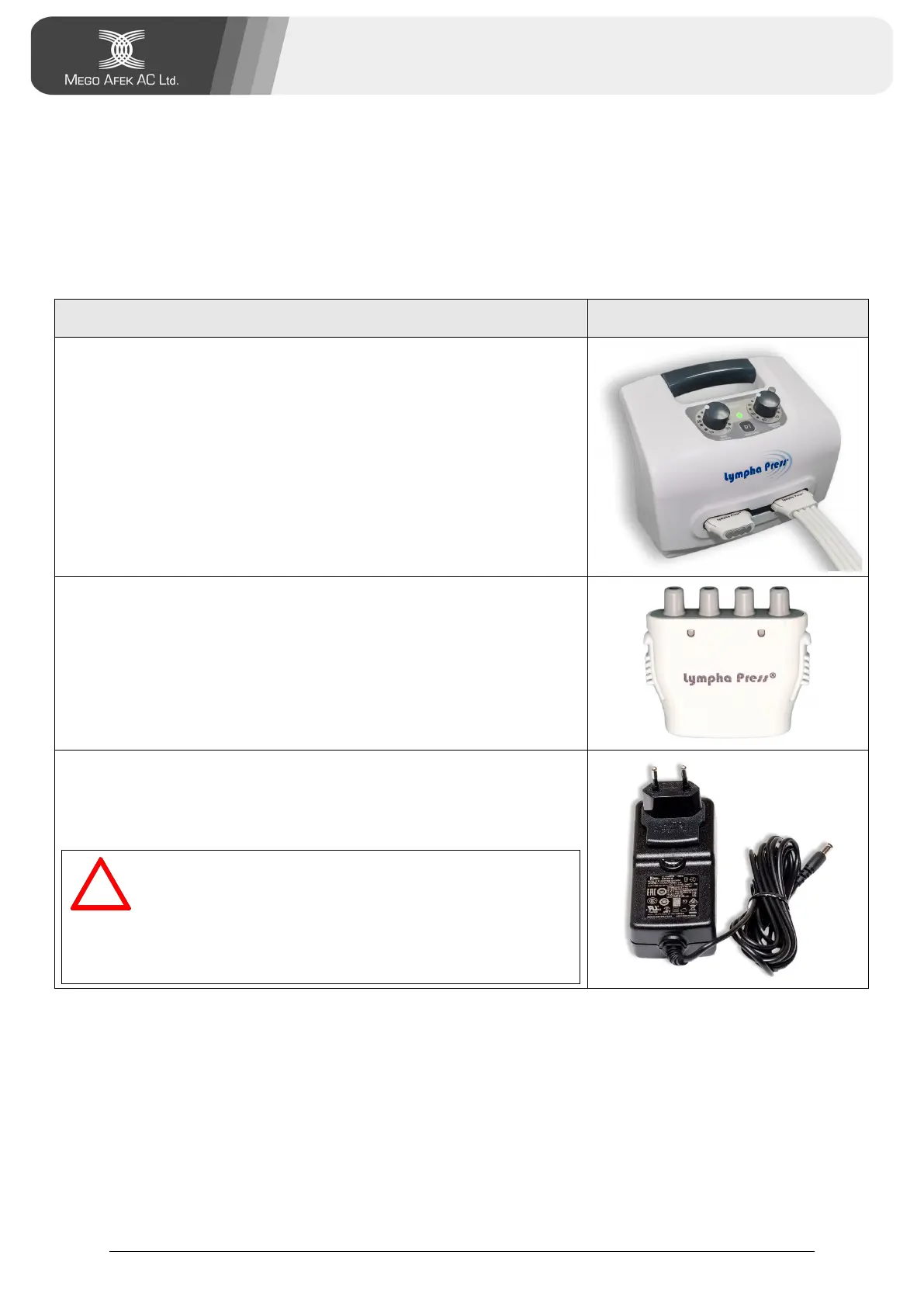

Table 1 - Console and Accessories
Component Illustration
The Console supplies air to the compression garments.
There are two air outlets on the front of the unit. The
Hose Bundles connect to these two outlets. The
console can operate one or two compression
garments simultaneously.
Plug
If using one garment only, you must seal the second
air outlet located on the front of the console to keep
air from escaping. Use the Plug to seal the unused
outlet on the front of the console.
DC Power Adapter
The DC power adapter receives 100-240 VAC, 50-60 Hz
power and supplies 12 VDC 3A to the console.
Caution:
For indoor use only.
Use only the DC power adapter provided
with the console.
