40
OPERATORS MANUAL
· With the coolant tank cap still removed start the engine and
let it warm up to reach its operating temperature. Refill more
coolant when needed a little by little. Close the cap and run
the engine a few minutes more. Stop the engine and check
the coolant level.
AIR COOLED ENGINES
There is a fan in the engine taking fresh air through the openings in
the hood. The air follows through the cooling ribs in the engine and
through special conduits out from the engine room.
All models have a fan belt rotating the cooling fan.

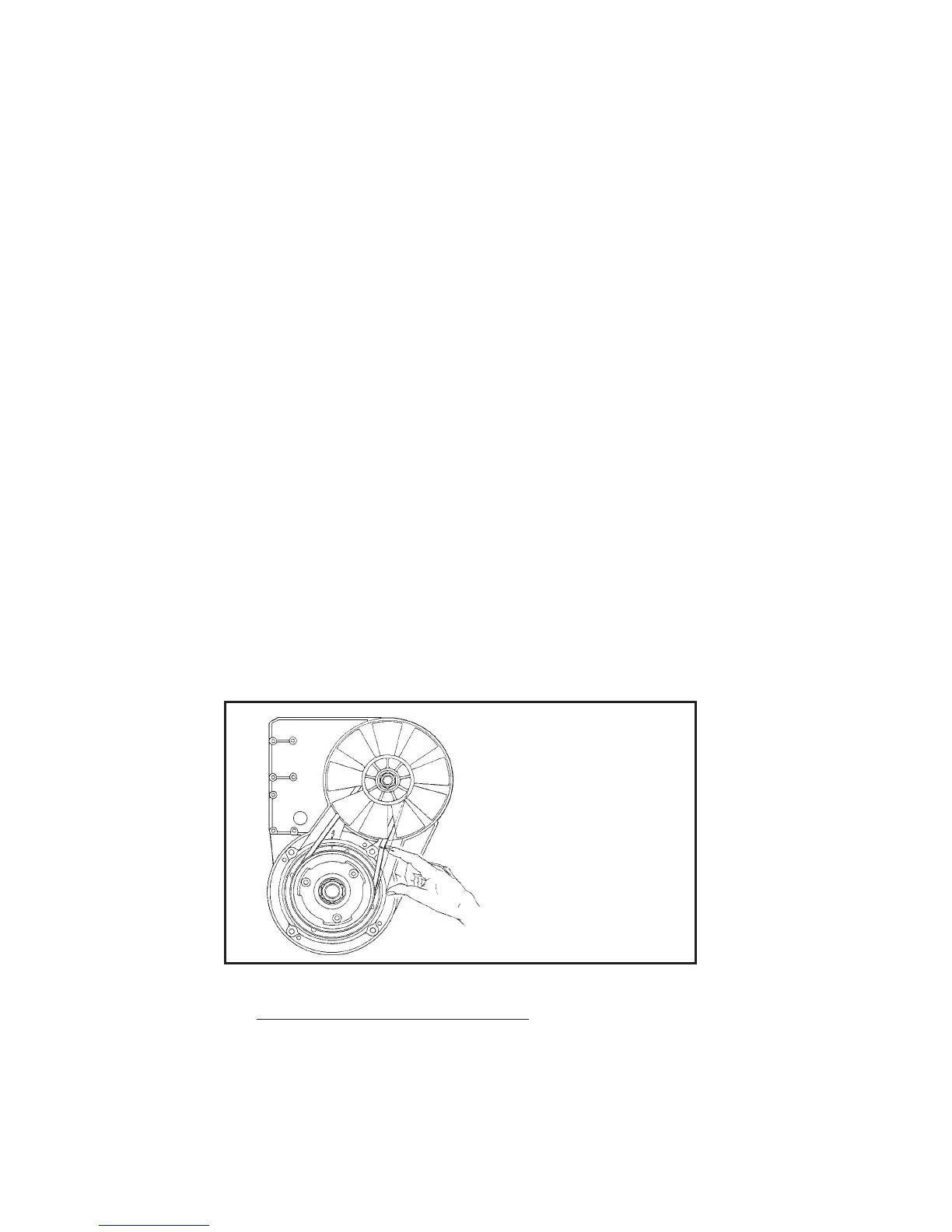

· Check the belt tension regularly once a week.
· The belt tension is right when the belt can be pressed down
89 mm with finger between the belt pulleys.
NOTE: The belt can be pressed e.g. with a chisel through the
protection net.
Adjusting the fan belt should be carried out by an authorized
LYNX dealer/work shop.
8 - 10 mm
Fan belt tension
