Lynx 2000 Forest Fox Syncro - Toe Out Adjustment; Ski Pressure Adjustment

52
OPERATORS MANUAL
TOE OUT
Toe out must be 38 mm in, so the distance between the skis is
bigger in front than at rear end. (Measure distance between 50 cm).
To adjust the toe-out the tie rod will be lenghten or cut down.
Adjustment is performed by turning manually tie rod (left- and
right hand ball joints).
· Check the lockings of tie rods.
· Fastenings of ball joints are secured with bilock-nuts and Loctite
242.
NOTE: Tighten the fastening nuts on the first time by 50 km and
then by 250 km service. (4550 Nm).
NOTE: Avoid opening the fastening nuts repeatedly.

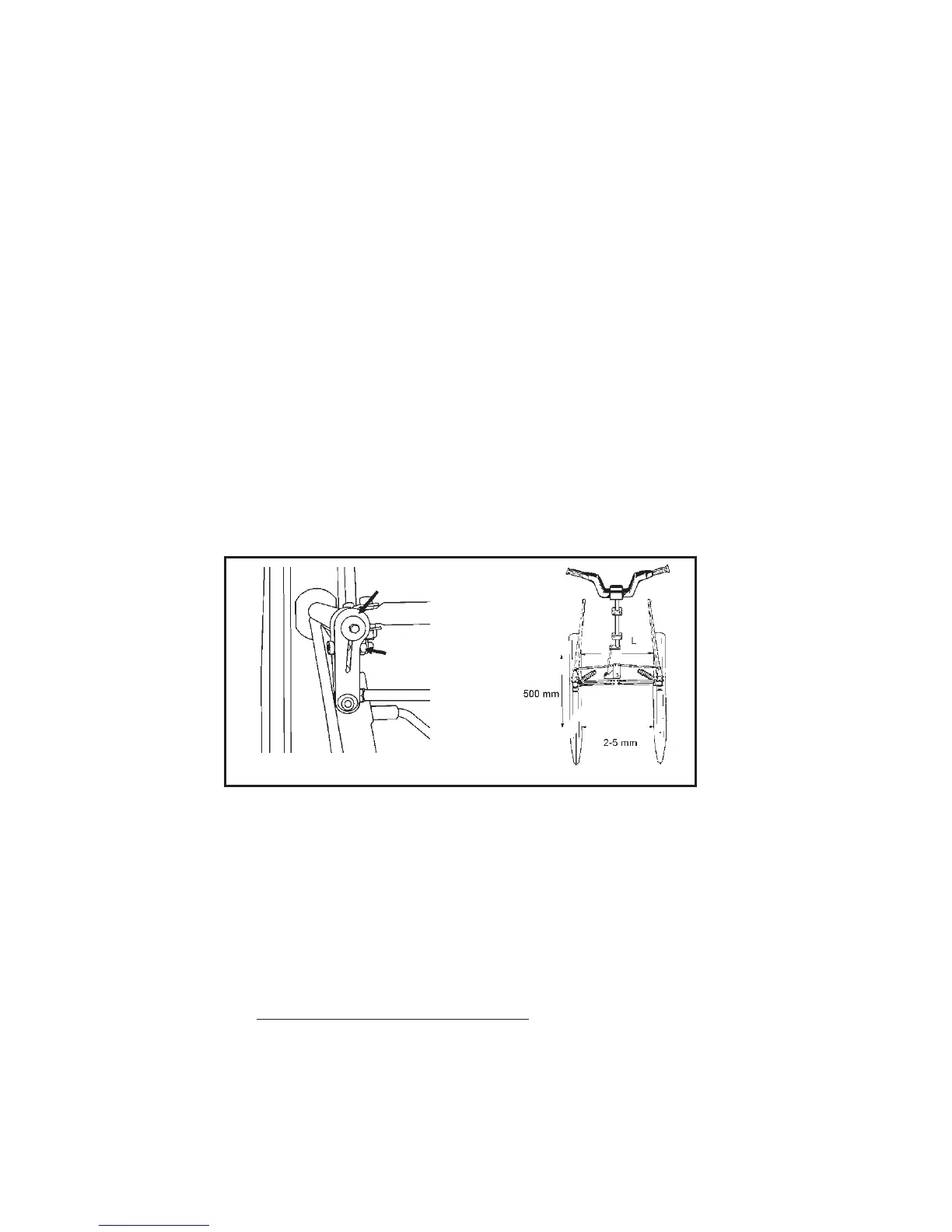

Toe-out
Steering lever
Fastening out
SKI PRESSURE
The ski pressure has on effect on proceeding on soft snow and on
the steerability on hard terrain. Low ski pressure helps proceeding
in soft snow, the snowmobile climbs easier the snow drifts.
High ski pressure helps the turning on hard terrain.
