To adjust tension:
· On some models, remove wheel cap.
· Loosen the rear idler wheel retaining screws.
· Turn adjustment screws to adjust.
If correct tension is unattainable, contact an authorized dealer.
Alignment
NOTE: Track tension and alignment are inter-related. Do not adjust
one without the other.
Start the engine and accelerate slightly so that track barely turns.
This must be done in a short period of time (1 to 2 minutes). Check
that the track is well centered; equal distance on both sides
between edges of track guides and slider shoes.

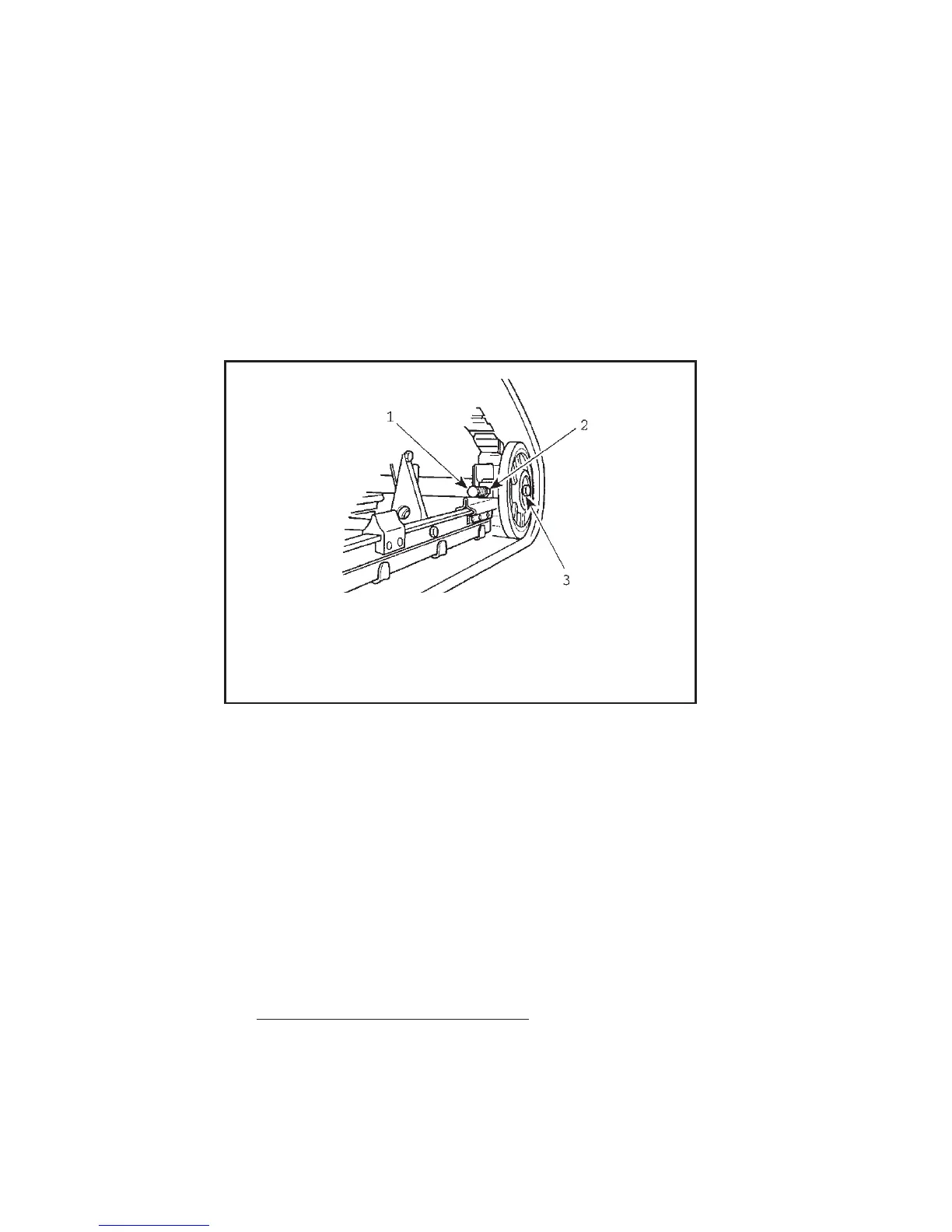

1. Adjustment screw
2. Loosen screw 3.
Remove wheel cap [some models)
