50
OPERATORS MANUAL

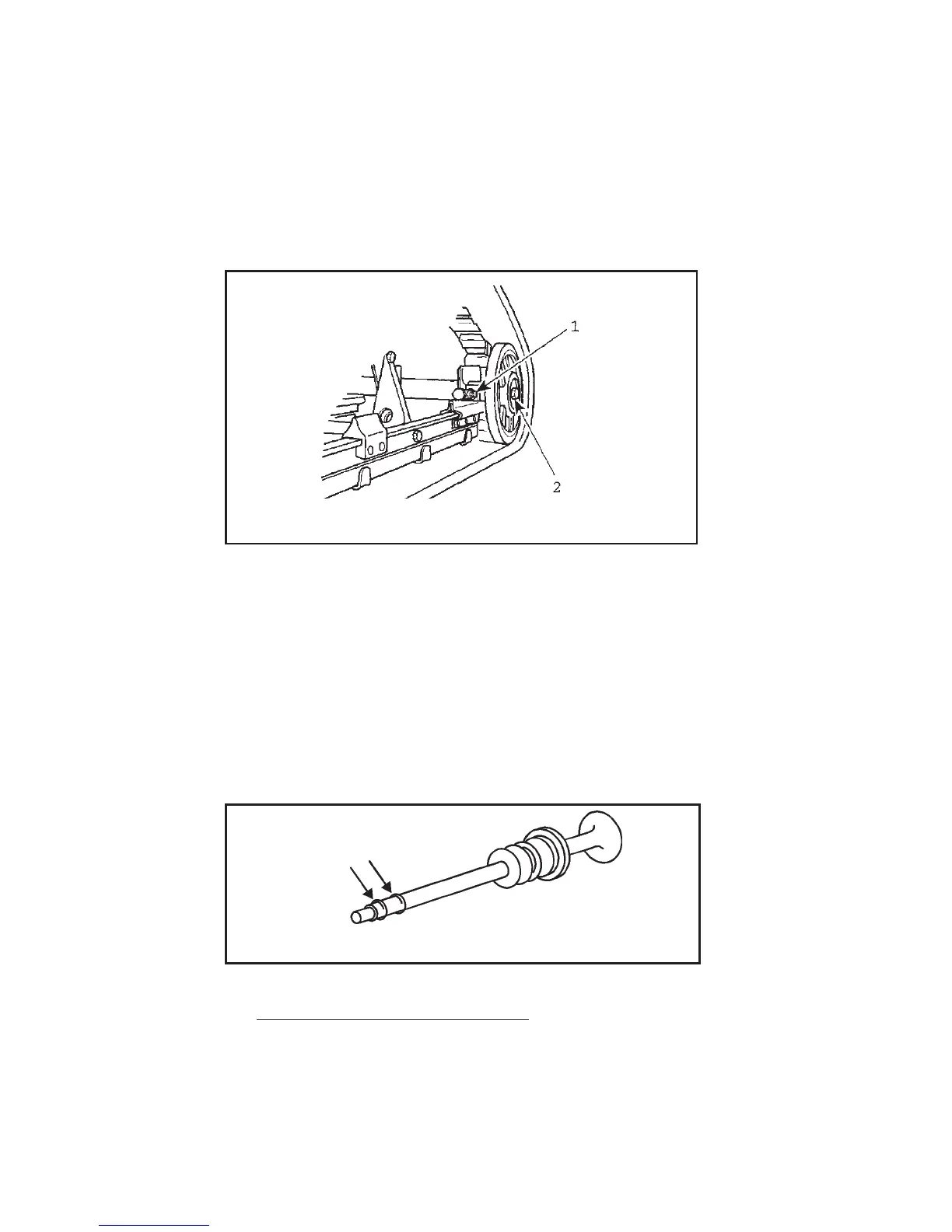

Retighten wheel screws to 48 Nm.
NOTE: Tighten properly the wheel screws.
Restart engine and rotate track slowly to recheck alignment.
Reposition snowmobile on the ground.
CHECKING THE OIL LEVEL
· Dismount inspection plug in the bottom part of the case.
· The level should then be measured to the edge of the inspection
hole.
· In models with gearbox there is dipstick for checking the oil
level.
1. Retighten to 48 Nm
max.
Oil stick
min.
