57
OPERATORS MANUAL

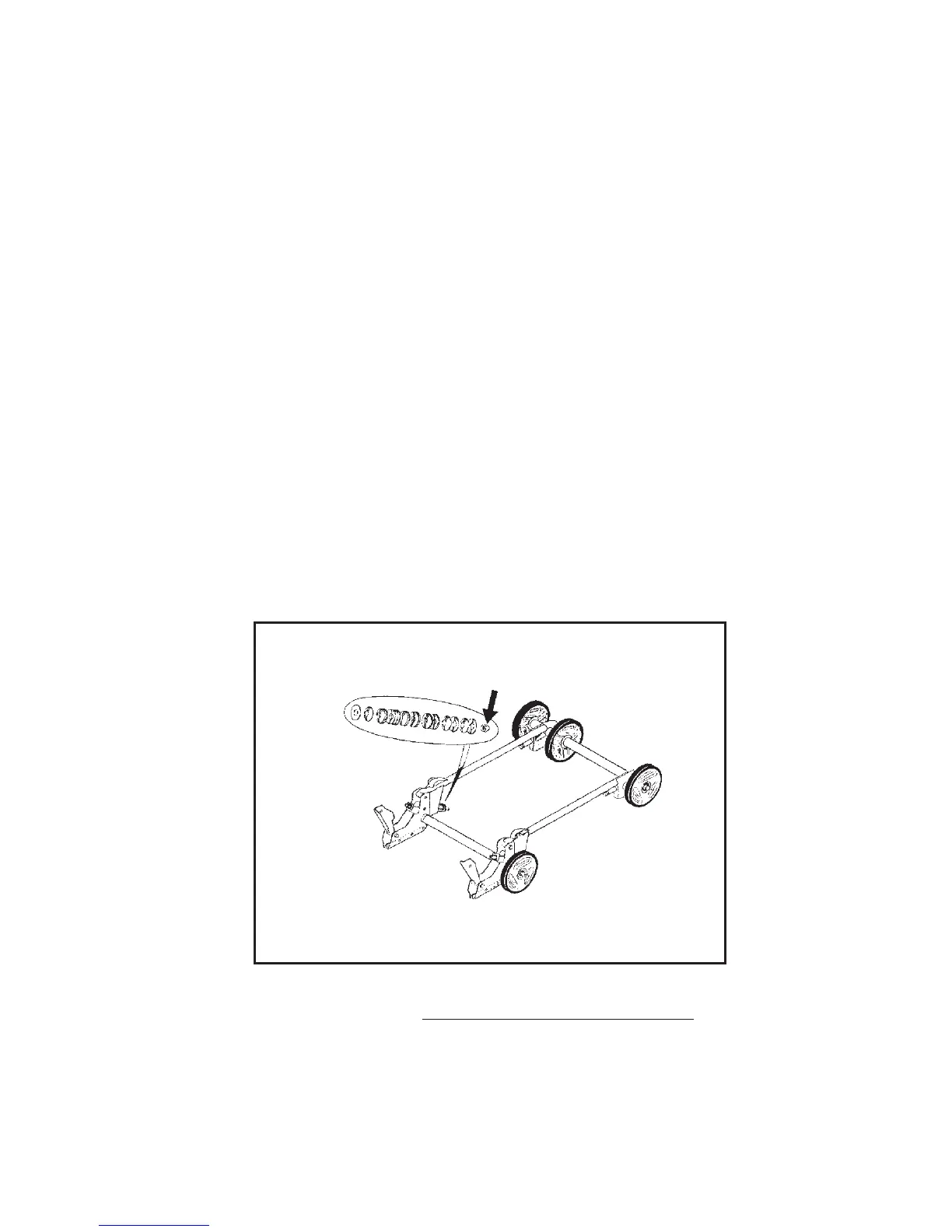

Adjustment
The suspension of the extension consists of elastic rubber pieces.
The extension becomes stiffer when the adjusting nut is screwed
down and loose when the adjusting nut is loosened. See the picture.
Adjustment for deep snow GLX 5900/6900
Remove the locking nut. Tighten the adjusting nut 3/4 round, after it
touches the spring plates.
Adjustment for driving loaded GLX 5900/6900
Tighten the adjusting nut three rounds, after it touches the spring
plates (this adjustment is done on the factory). It is possible to
add beetween the rubber extra springs some adjusting plates (
4 pieces in the tool box) to avoid the front of snowmobile lifting
up.
GLX 5900 / 6900 FC E
Adjusting nut
Rubber
