46 _____________________________________________ OPERATORS MANUAL
ENGLISH
Adjusting the ski pressure
On LTS-models the ski pressure can be changed by the spring of shock absorber.
The stiffness of spring can be changed by the tightening ring on shock absorber
(picture page 43). The tighter spring is the greater ski pressure.
The shock absorber have to remove for adjusting on LTS-models. The adjust have
to be done on predelivery service or on regular maintenance. The stiffness of
spring have to be chosen by the principal use.
Adjusting the ski pressure by adjusting the slide rail
See: Slide rail system, adjusting the slide rail.

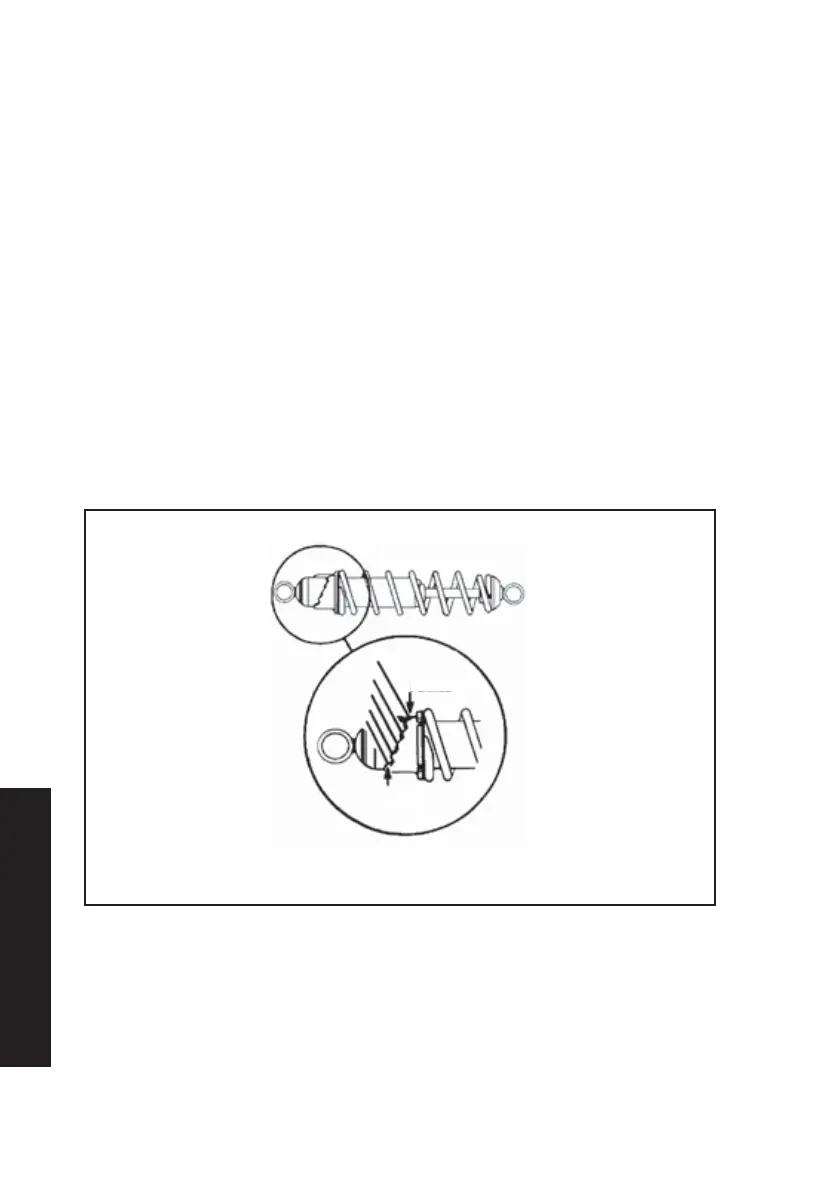

In shock absorber there is a tension ring with 5 positions (LTS: 3positions) with which the
tension of the spring can be changed in relation to the actual load. In the tension ring there
are 2 holes in which a steel pin can be inserted so that the ring can be turned. When the
tension ring is turned clockwise the spring is tensioned.
Tightening spring
Soft
Hard
