SKI PRESSURE
The ski pressure has on effect on proceeding on soft snow and on the steerability on hard
terrain.
Low ski pressure helps proceeding in soft snow, the snowmobile climbs easier
the snow drifts.
High ski pressure helps the turning on hard terrain.
STEERING SYSTEM
Among other things the skis steer the snowmobile, smooth the driving on bumpy terrain
and carry the front on soft snow.
TOE OUT
Toe out must be 38 mm in, so the distance between the skis is bigger in front than at rear
end. (Measure distance between 50 cm). To adjust the toe-out the tie rod will be lenghten
or cut down. Adjustment is performed by turning manually tie rod (left- and right hand ball
joints).
NOTE!
Check the lockings of tie rods.
Fastenings of ball joints are secured with bilock-nuts and Loctite 242.
Tighten the fastening nuts on the first time by 50 km and then by 250 km service.
(4550 Nm).
Avoid opening the fastening nuts repeatedly.

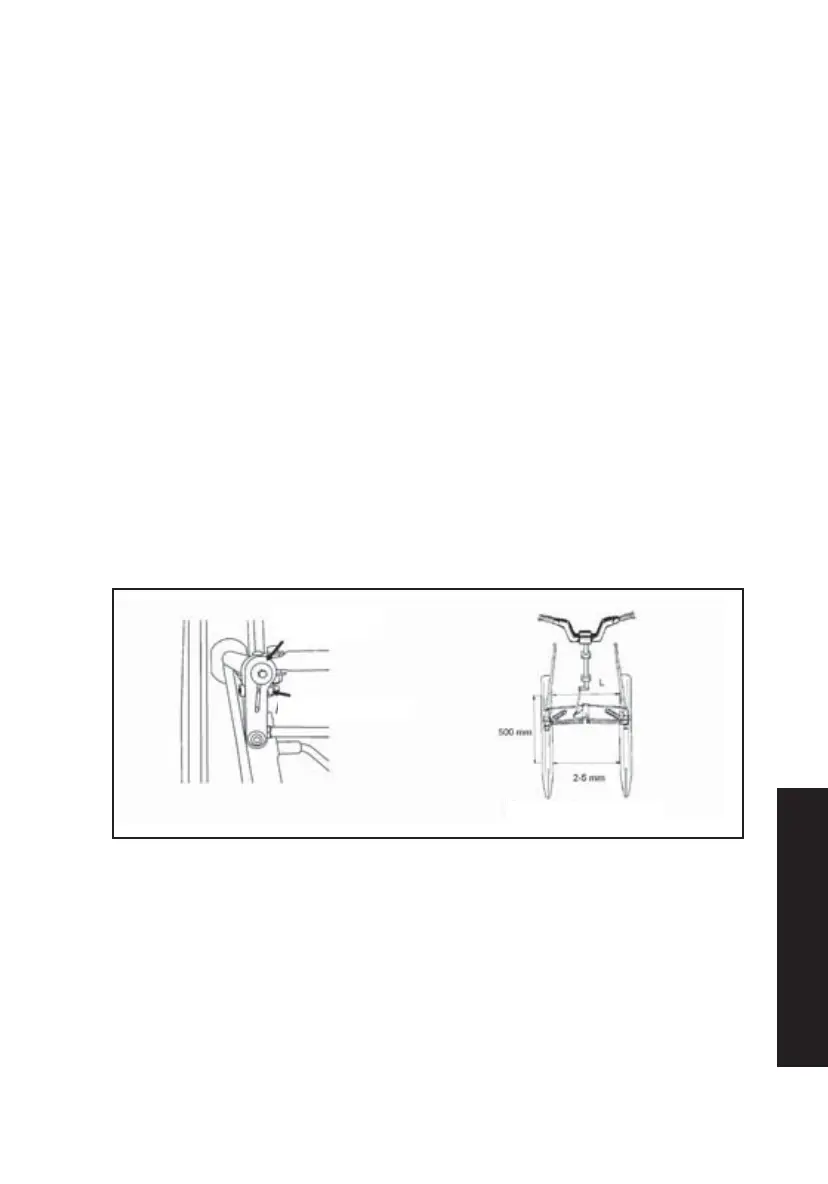

Toe-out
Steering lever
Fastening out
