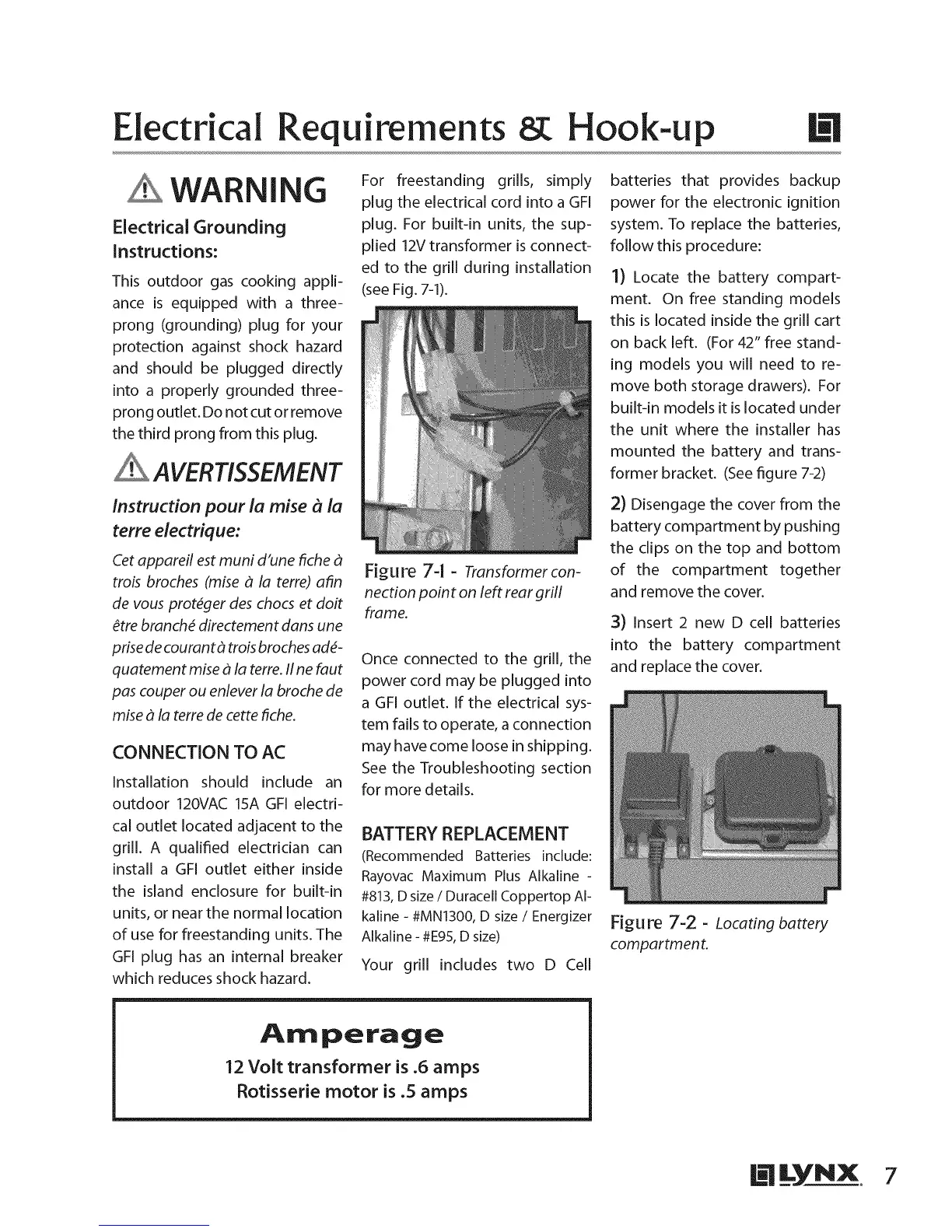

Electrical Requirements Hook-up
WARNING
Electrical Grounding
Instructions:
This outdoor gas cooking appli-
ance is equipped with a three-
prong (grounding) plug for your
protection against shock hazard
and should be plugged directly
into a properly grounded three-
prong outlet. Do not cut or remove
the third prong from this plug.
AVERTISSEMENT
Instruction pour la mise _ la
terre electrique:
Cet appareil est muni d'une fiche
trois broches (mise _ la terre) afin
de vous prot_ger des chocs et dolt
_tre branch_ directement dans une
prisede courant _ trois broches ad_-
quatement mise _ la terre, line faut
pas couper ou enlever la broche de
mise _ la terre de cette fiche.
CONNECTION TO AC
Installation should include an
outdoor 120VAC 15A GFI electri-
cal outlet located adjacent to the
grill. A qualified electrician can
install a GFI outlet either inside
the island enclosure for built-in
units, or near the normal location
of use for freestanding units. The
GFI plug has an internal breaker
which reduces shock hazard.
For freestanding grills, simply
plug the electrical cord into a GFI
plug. For built-in units, the sup-
plied 12Vtransformer is connect-
ed to the grill during installation
(see Fig. 7-1).
Figure 74 - Transformer con-
nectionpoint on left rear grill
frame.
Once connected to the grill, the
power cord may be plugged into
a GFI outlet. If the electrical sys-
tem fails to operate, a connection
may have come loose in shipping.
See the Troubleshooting section
for more details.
BATTERY REPLACEMENT
(Recommended Batteries include:
Rayovac Maximum Plus Alkaline -
#813,D size/Duracell Coppertop Al-
kaline - #MN1300,D size/ Energizer
Alkaline - #E95,D size)
Your grill includes two D Cell
batteries that provides backup
power for the electronic ignition
system. To replace the batteries,
follow this procedure:
1) Locate the battery compart-
ment. On free standing models
this is located inside the grill cart
on back left. (For 42" free stand-
ing models you will need to re-
move both storage drawers). For
built-in models it is located under
the unit where the installer has
mounted the battery and trans-
former bracket. (See figure 7-2)
2) Disengage the cover from the
battery compartment by pushing
the clips on the top and bottom
of the compartment together
and remove the cover.
3) Insert 2 new D cell batteries
into the battery compartment
and replace the cover.
Amperage
12 Volt transformer is .6 amps
Rotisserie motor is .5 amps
Figure 7-2 - Locating battery
compartmen t.
