WIRING INSTALLATION GUIDE
Lee’s Summit, MO 64086
sales@lynxspring.com
All Rights Reserved
Revised 1/10/2019
JENE-EG534-N4-V1
Page 2 of 5
Power Wiring
The JENEsys Edge 534 – N4 can be powered by wiring to a dedicated Class 2, 24 Vac transformer, or to a 24 Vdc power
source. As shown in Figure 1, the JENEsys Edge 534 – N4’s 3-position power connector (black) is located at the top corner of
the unit. Unplug the connector from the device and make connections to it as shown.
Note: Do not apply 24 Vac power
(reinsert connector plug into the JENEsys Edge 534 – N4)
until all other wiring is completed,
including JENEsys Edge 534 – N4 inputs and outputs.
Do not power other equipment with it.
Inputs
Each of the 16 universal inputs can support any one of the following:
Type-3 10 k ohm Thermistor
Resistive 0-100 k ohms
0-10 Vdc
4-20 mA
Binary Input
Thermistor
The inputs support 10 k Thermistor temperature sensors using a ThermistorInputPoint. Input accuracy is in the range of
±1% of span. By default, conversion is for a standard Type-3 thermistor sensor, with a sensor range of -10° to 135°F
(-23.3° to 57.2°C).
Using a conversion type of
Tabular Thermistor
, you can specify a different thermistor response curve,
by importing a thermistor curve .xml file.
Resistive 0-100 k ohms

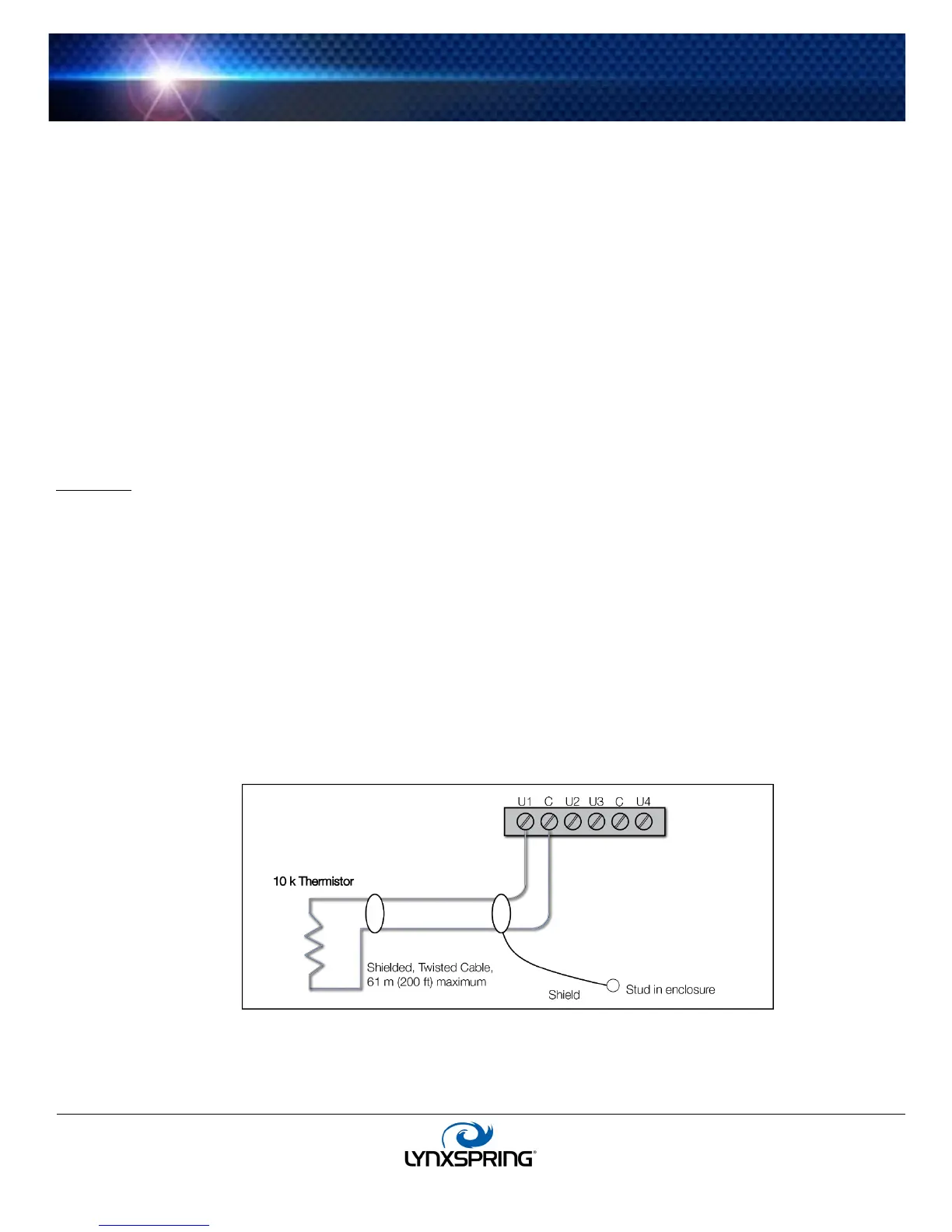

The inputs can read a resistive signal within a range from 0 to 100 k ohms. Wiring is the same as shown for a Thermistor
temperature sensor (
Figure 2). Resistive signals require a ResistiveInputPoint.
Note: The universal input option is optimized to provide the best resolution around the 10 k ohm range. For a sensor with a
range far from 10 k ohms
(such as a 100 ohm or 1,000 ohm type),
resolution will be poor. To use such a sensor, it is
recommended you install a transmitter that produces a Vdc or mA signal, and then wire the transmitter to the UI
according to the 0–10 Vdc or 4–20 mA instructions.
