Lytro Illum User Manual

Getting Started
Ch
arging the battery
Before using the camera for the first time, charge the lithium-ion battery. Place
the battery into the included quick charger, and plug the charger into a standard
110- or 220-volt, 50-60 Hz electrical outlet. When taking the camera out of the
box, the battery may be partially charged; a fully discharged battery may take
four hours or more to charge completely.
During charging, the LED on the charger will illuminate. When charging is
complete, the LED will turn off. A blinking LED indicates a power or connection
problem, such as the battery not being inserted properly.
Inserting the charged battery
The battery compartment is on the underside of the camera. Hold the camera
upside down and slide the thumb-latch to one side to open the door. Insert the
charged battery, hold the door fully closed, and slide the latch back to the locked
position.

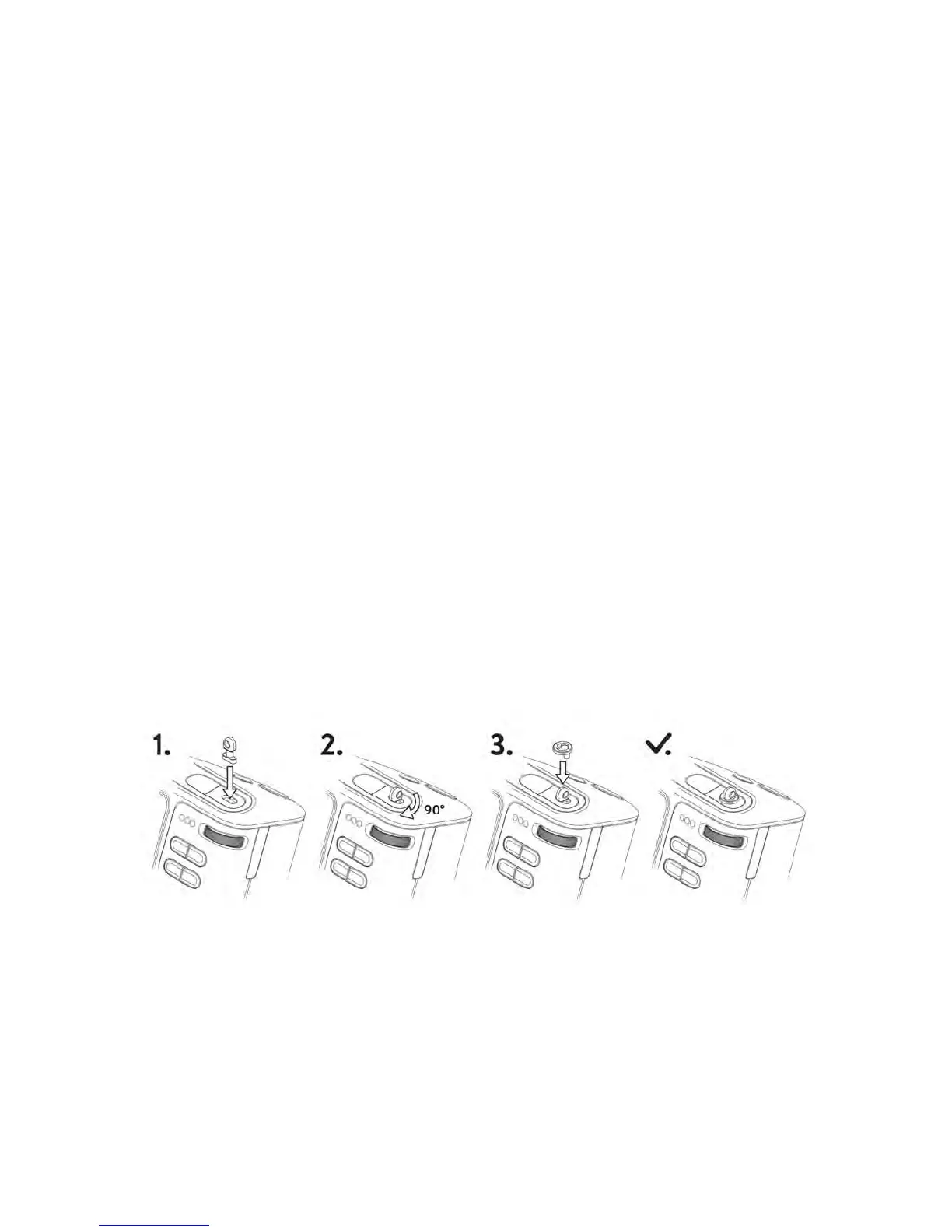

Inserting the strap rings
To prepare camera for use with a strap, install the included strap anchors. Insert
an anchor into the strap point on the top of the camera beside the power button.
Turn it 90 degrees to position it. Then place one of the included collars over the
strap anchor and press down until it snaps into place. Repeat theses steps for
the strap point on the side of the camera, below the port cover.
Once strap anchors are installed, attach the strap using the split-rings.
Inserting an SD card
Open the port cover and insert a SD, SDHC, or SDXC card into the SD card slot.
Close the port cover. For optimum performance, format an SD the first time it is
use it in the camera (see Settings, page XX).

Lytro Illum Specifications

General

Megapixel	- MP
Camera type	Bridge camera
Sensor type	CMOS
Image stabilizer	No
Image sensor size	1/1.2 \
Supported aspect ratios	3:2
Maximum image resolution	2450 x 1634 pixels
Image sensor size (W x H)	10.82 x 7.52 mm
Still image resolution(s)	2450 x 1634
Digital zoom	- x
Optical zoom	8 x
Focal length range	9.5 - 77.8 mm
Minimum aperture number	-
Maximum focal length (35mm film equiv)	250 mm
Minimum focal length (35mm film equiv)	30 mm
Focus adjustment	Auto
Light metering	Evaluative (Multi-pattern)
ISO sensitivity	80, 3200
Light exposure modes	Manual, Shutter priority AE
ISO sensitivity (max)	3200
ISO sensitivity (min)	80
Light exposure control	Program AE
Auto Exposure (AE) lock	Yes
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	32 s
HD type	Not supported
Maximum video resolution	- pixels
Memory slots	1
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Display diagonal	4 \
Display resolution	480 x 800 pixels
USB version	3.2 Gen 1 (3.1 Gen 1)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Self-timer delay	2, 10 s
Camera file system	RAW
Mac operating systems supported	Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Power source type	Battery
Battery voltage	3.7 V
Battery capacity	3760 mAh
Material	Aluminium, Magnesium
Product color	Black
Sustainability certificates	RoHS
Cables included	Micro-USB
Bundled software	Lytro Desktop
F-number (relative aperture)	2
Storage temperature (T-T)	2450 x 1634 °C

Weight and Dimensions

Depth	166 mm
Width	145 mm
Height	86 mm
Weight	940 g
Weight (including battery)	1029 g
