M/A-Com M7100 IP - Introduction; Standard Features

2 INTRODUCTION

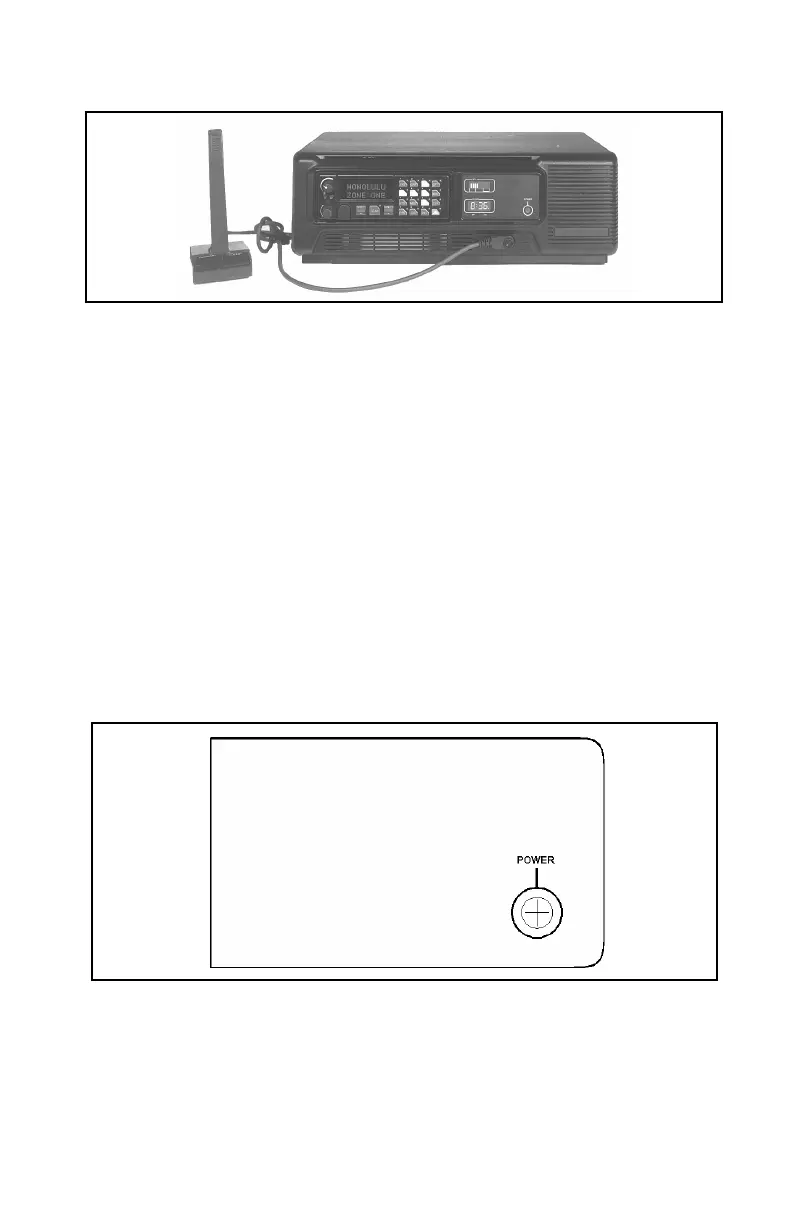

Figure 2-1: Desktop Station Front Panel with VU Meter/Clock
The M/A-COM
®
M7100
IP
Desktop Station is shown in Figure 2-1 This
Station combines the flexibility of a Local Control Station with a Remote
Control Station in one desktop package.
The M7100
IP
Wall Mount Station is designed specifically for Remote Control
applications with no user accessible controls. The Wall Mount Station
housing is equipped with a key lock to prevent unauthorized entry.
2.1 STANDARD FEATURES
The basic Desktop Station comes equipped with the Standard Control Panel as
shown in
Figure 2-2. The Standard Control Panel is equipped with a single
Power LED to indicate the status of the power being supplied to the station.
This indicator is present on all configurations.
Figure 2-2: Standard Control Panel
