2 NRV10 interFX User Interface Overview
The channel configuration of NRV10 interFX is identical to the NRV10 Mixer, providing
four mono channels and two stereo channels. Each channel of NRV10 interFX includes

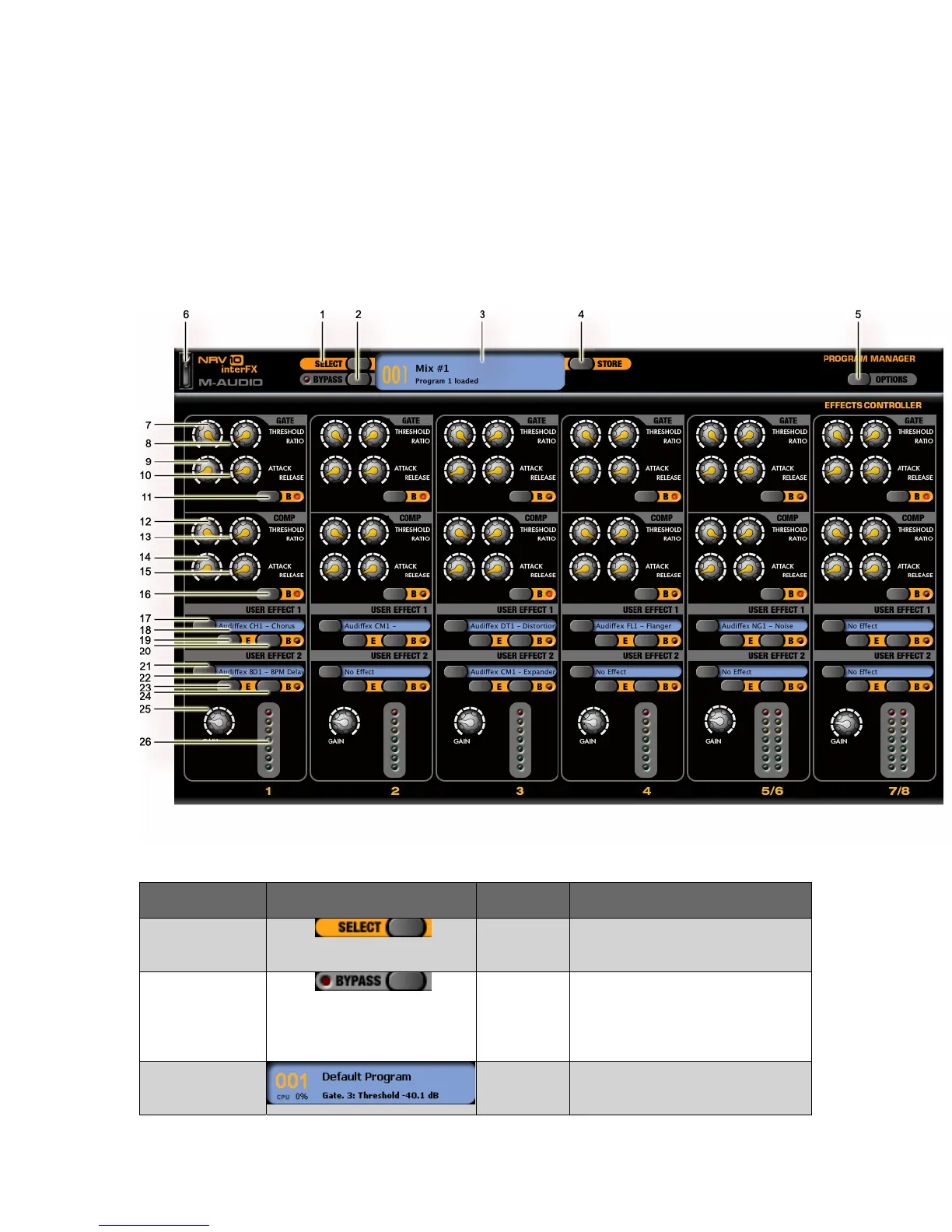

an integrated Gate, Compressor, and two User Effect Slots. Below is an image of the
NRV10 interFX user interface. Refer to the table below the graphic for details of each
control.
NRV10 interFX Controls
Control Call-out
#
Control Picture Control
Name
Control Description
1 Select ButtonTo load a Program, click the Selec
t
Button, and select the desired
Program from the resultant list.
2
Bypass
Button
The Bypass Button bypasses all
effects and gain settings of NRV10
interFX, allowing audio to pass
through NRV10 interFX
unchanged.
3 Program
Display
The Program Display displays the
name and Program Number of the
currently loaded Program.
