12
Ø
Venus 530 Ø150
Venus 530 CL/CR -DC Ø180
Venus 630 Ø150
Venus 630 CL/CR - DC Ø180
Venus 730 Ø180
Venus 700 Ø150
Venus 850 Ø180
Venus 850 CL/CR - DC Ø180
Venus 1000 Ø180
Venus 850D Ø 180
Ø 200 Ø 180 Ø 150
Venus 530 ≥ 3m (O) ≥ 4m (S)
Venus 530 CL/CR -DC ≥ 4m (S) ≥ 5m (O)
Venus 630 ≥ 4m (O) ≥ 6m (S)
Venus 630 CL/CR - DC ≥ 4m (O) ≥ 5m (S)
Venus 730 ≥ 4m (O) ≥ 5m (S)
Venus 700 ≥ 4m (O) ≥ 5m (S)
Venus 850 ≥ 4m (O) ≥ 5m (S)
Venus 850 CL/CR - DC ≥ 5m (O) ≥ 6m (S)
Venus 1000 ≥ 5m (O) ≥ 6m (S)
Venus 850D ≥ 4m (O) ≥ 6m (S)
MINIMUM HEIGHT OF THE CHIMNEY IN TERMS OF ITS REDUCTION
When using a fan, it MUST be ensured that there is insulation
between the chimney pot and the exhaust pipe, or a cover plate.
is provided, or a cover plate. If this is not done, the fan will, either
draw in smoke or draw odour from the chimney.
The construction of chimney must comply with strict conditions:
•The flue must be thermally insulated. The opening into the flue and its position are very important.
•One individual flue does not have more than two changes of direction. The angle of the corner of these changes of direction
may not be greater than 45 ° with the perpendicular.
•The existing obstacles in the vicinity of the opening into the flue must be taken into account.
•Do not connect more than one stove to a chimney.
3. Chimney

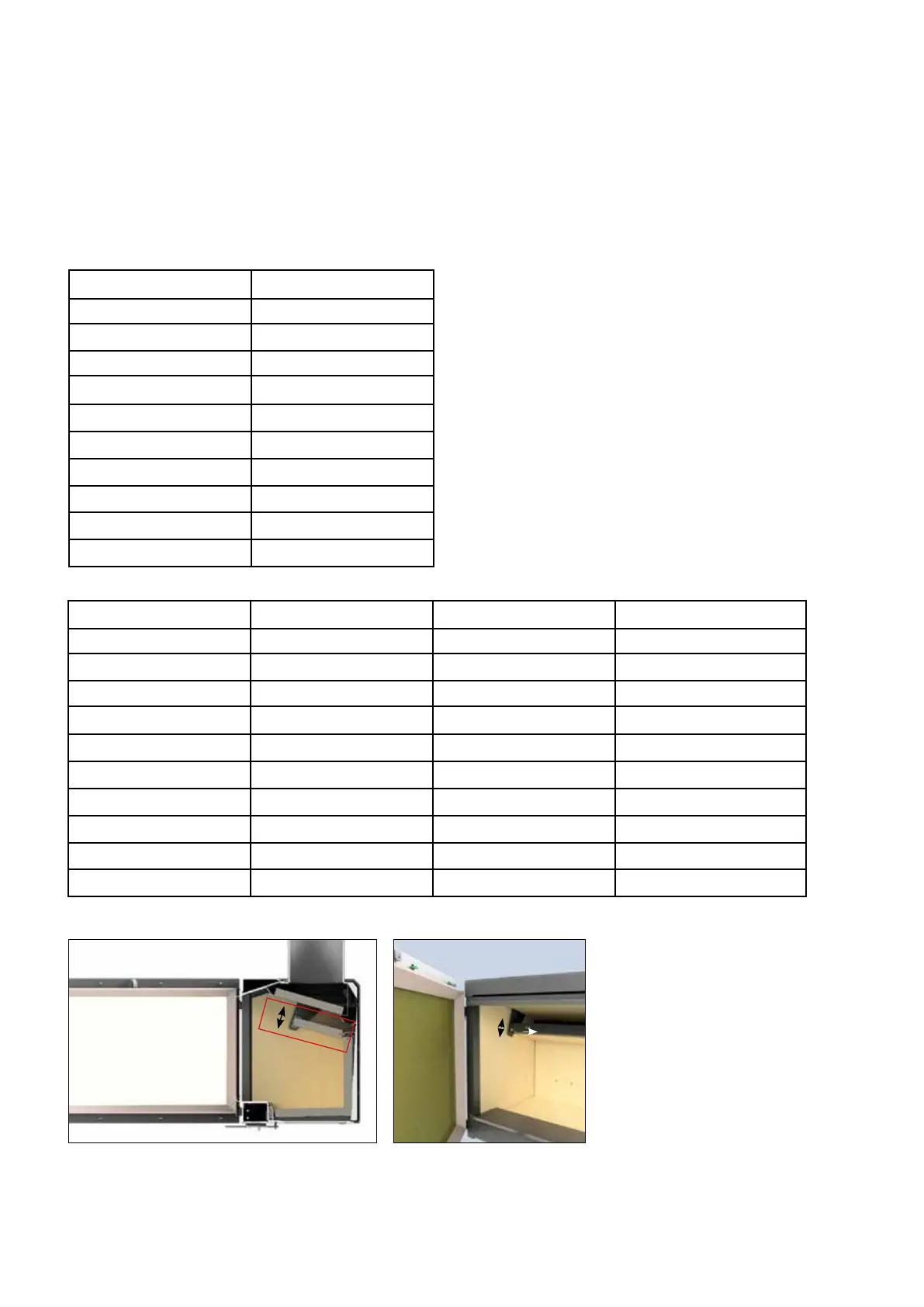

Standaarddiameter flue opening Venus V23
The VENUS stoves have a standard flue opening of 150mm or
180 mm. in diameter according drawings in chapter 8. Certain
chimney configurations may require dierent standard diameters.
In that case, look at table for the height of the flue and the possi-
bility of reducing the diameter with the help of a reduction piece.
Chimney connection is situated on the top of device.
S = standard O = option
Depending on the chimney draught, you can adjust the flame plate (damper) for optimum combustion.
The flame plate can be adjusted to 3 positions. If the chimney draught is too great, the exhaust gases can be slowed down
by moving the flame plate upwards or vice versa; if the chimney draught is insucient, the flame plate can be moved down-
wards. With a click system, slide the guides (in green) on both sides and move the flame plate up or down.
3.1 Flue damper adjustment
Note: per 45° change of
direction, one must keep to within 1m
of this table.
