3.2. Removing the ﬂue damper

Instructions for installation and use VENUS V23

- 7 -

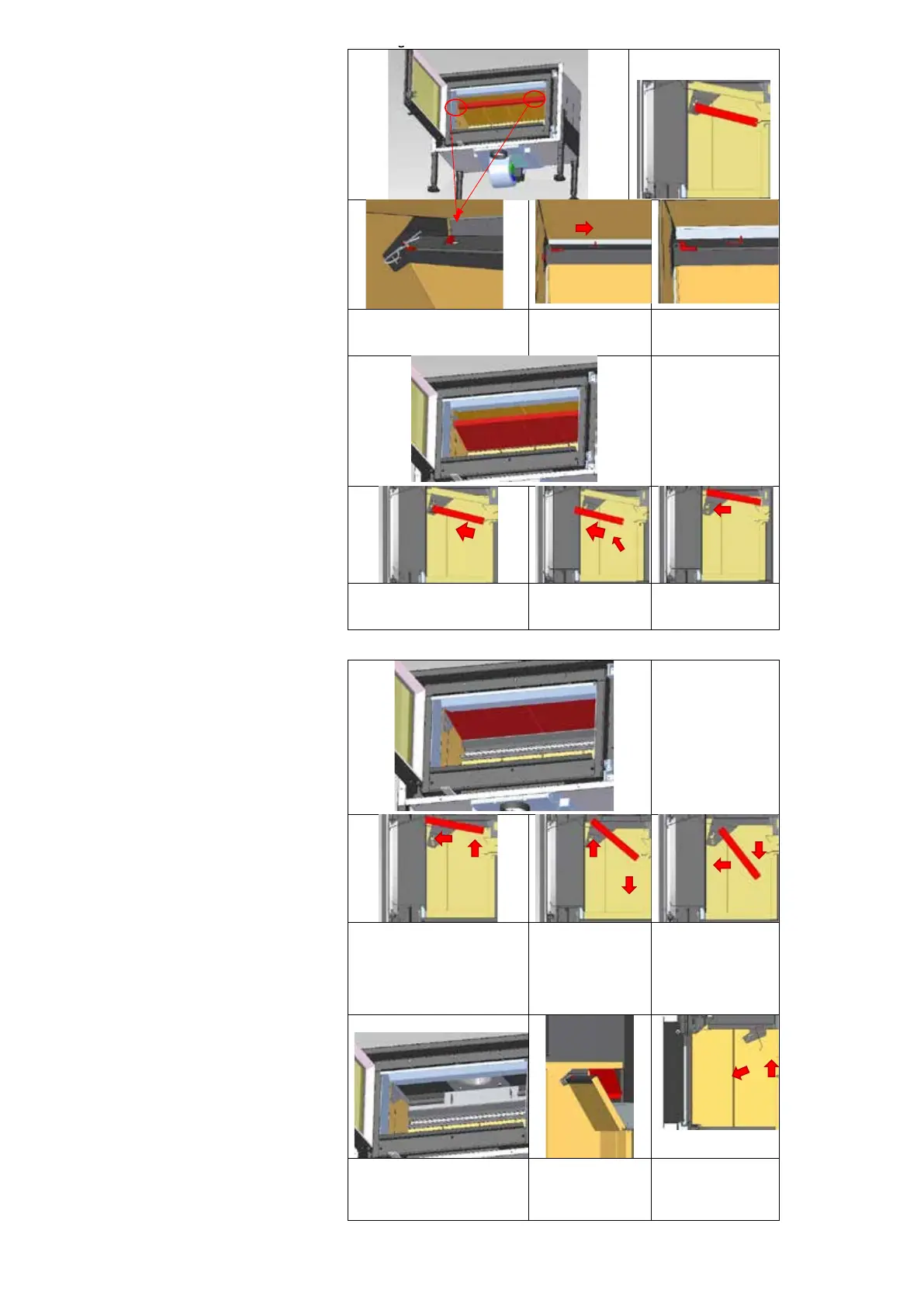

3.7. INSTALLATION AND REMOVING OF DEFLECTOR V23

Removing of the deflector: -

3 parts of deflector in the

cut view

Pull out the cotter pin

2A -Pull the fuse

towards the center

on both sides

2B - The first part of

the deflector has

been removed

3 A - Lift the first deflector a few

centimetres diagonally

upwards/ahead

3B - Now you can

take out the parts of

the first deflector

4A - Pull the back side

of the second

deflector the towards

At the same time lift the rear

part of the deflectos and move

it all to the front side of the

deflector

First, we take out the

back side of the

deflector moving

downwards

Now you can take out

the parts of the

second deflector

The third part of the deflector is

placed on the bar

The 3rd part of the

deflector in the cut

view

Lift the third part of

the deflector and

take it out if needed

INSTALLATION of deflectors has the opposite sequence to removing deflector. Start

with point 5 and continue with points 4, 3, 2, 1
