2.2 Positioning the fireplace on the floor
Foundation under the fireplace insert must be of non-combustible material, flat and must withstand thermal stress. Also,
the walls and ceiling material, with which the finishing fireplace insert, cannot be flammable or must be used with suitable
insulation.
The floor in front of fireplace insert must be from non-combustible material at least 100 cm in front of the front wall of
the fireplace insert. The device must be installed so that the front of it remained free space on a minimum ground plan of
about 1 x 1 m.
If you use fireplace Venus with feet, place the appliance on a stable surface using the adjustable feet. Adjust the height
of the appliance turning the bolt.
THE STOVE VENUS MAY NOT BE PLACED DIRECTLY ON THE FLOOR IN ORDER TO ALLOW NATURAL CONVECTION.
THE APPERTURES FOR THE AIR SUPPLY (IN) IS SITUATED UNDERNEATH THE APPLIANCES
Regulating the height of the appliance:
This can be made in two ways.

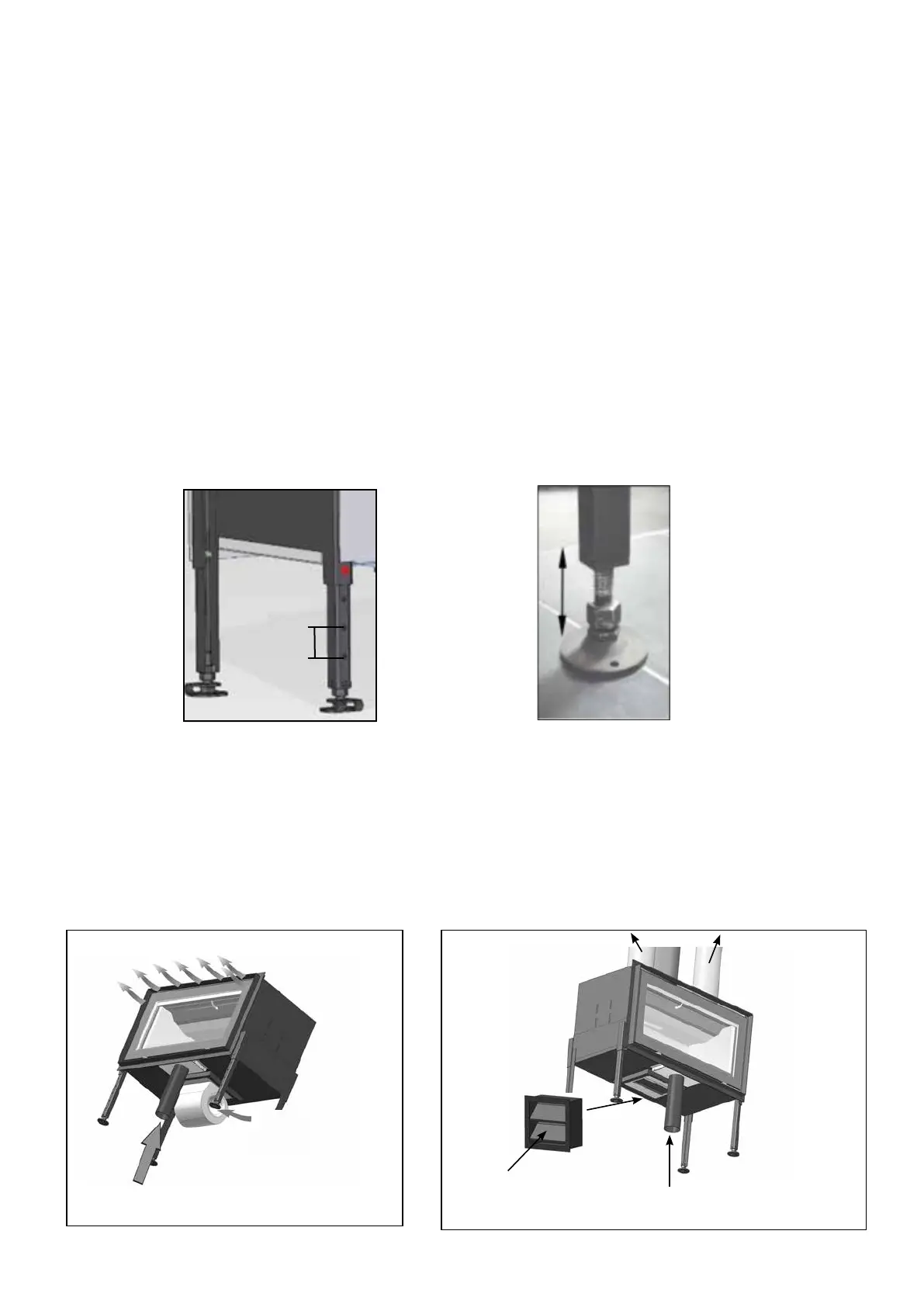

A regulation by 5 cm (Pic.1) and a fine regulation by screw (Pic.2 ).
Thanks to this fine arrangement, you can perfectly control the device pass.
2.3 Air Supply for combustion
Any combustion consumes air. In the case of a thermally sealed room, an additional air supply is necessary and you should use
the external air supply (pic. 3 and 4). If you cannot connect directly to the outside then there must be enough fresh air in the
living room to take this air out of the living room for combustion. However, a flexible must then be connected to the external
air supply. Connect this flexible somewhere to a grate in the chimney breast ( see 2.4).
In any case, avoid creating an underpressure in the room. If the presence of an extractor hood in an adjacent room is absolute-
ly necessary, a sucient air supply will be provided to avoid any underpressure.
Aansluiting met ventilator / Avec ventilateur
Aansluiting zonder ventilator / Sans ventilateur
External air inlet Ø100mm
External air inlet Ø100mm
convection
convection
convection
convection
