M Design VENUS - Page 54

700HT
850HT/DHT
1000HT
+/- 5c
m
54
A
Detail A

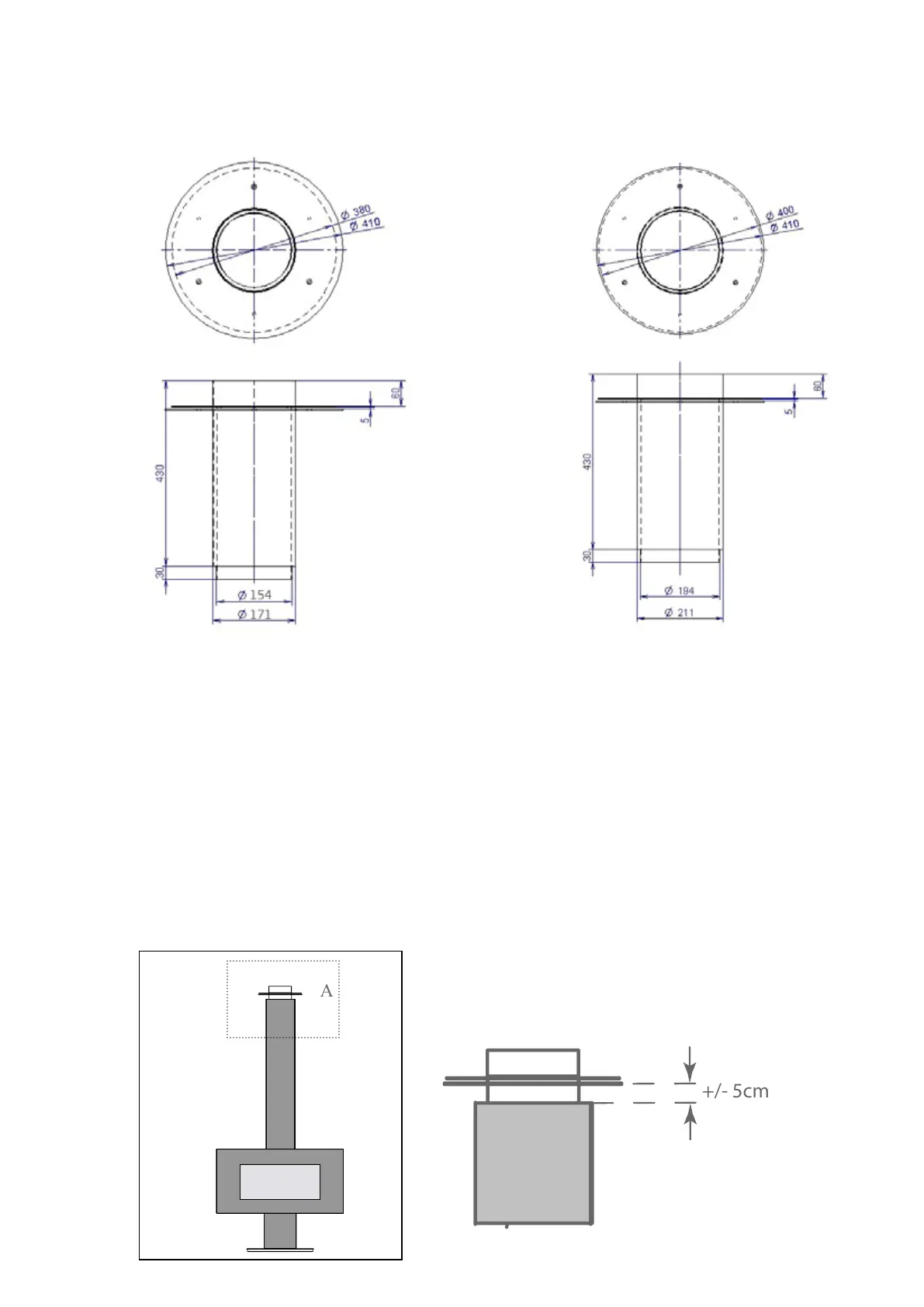

2.5 Ceiling piece
2.6 CONNECTION
We recommend a solid stainless steel pipe for the connection. The device is supplied without this tube. As a result, you will have
to provide a tube yourself.
2.6.1 Ceil Cing connection
A minimum distance of 5 cm must be maintained between the ceiling connection and the decorative pipe. This is to guarantee
a convection current.
