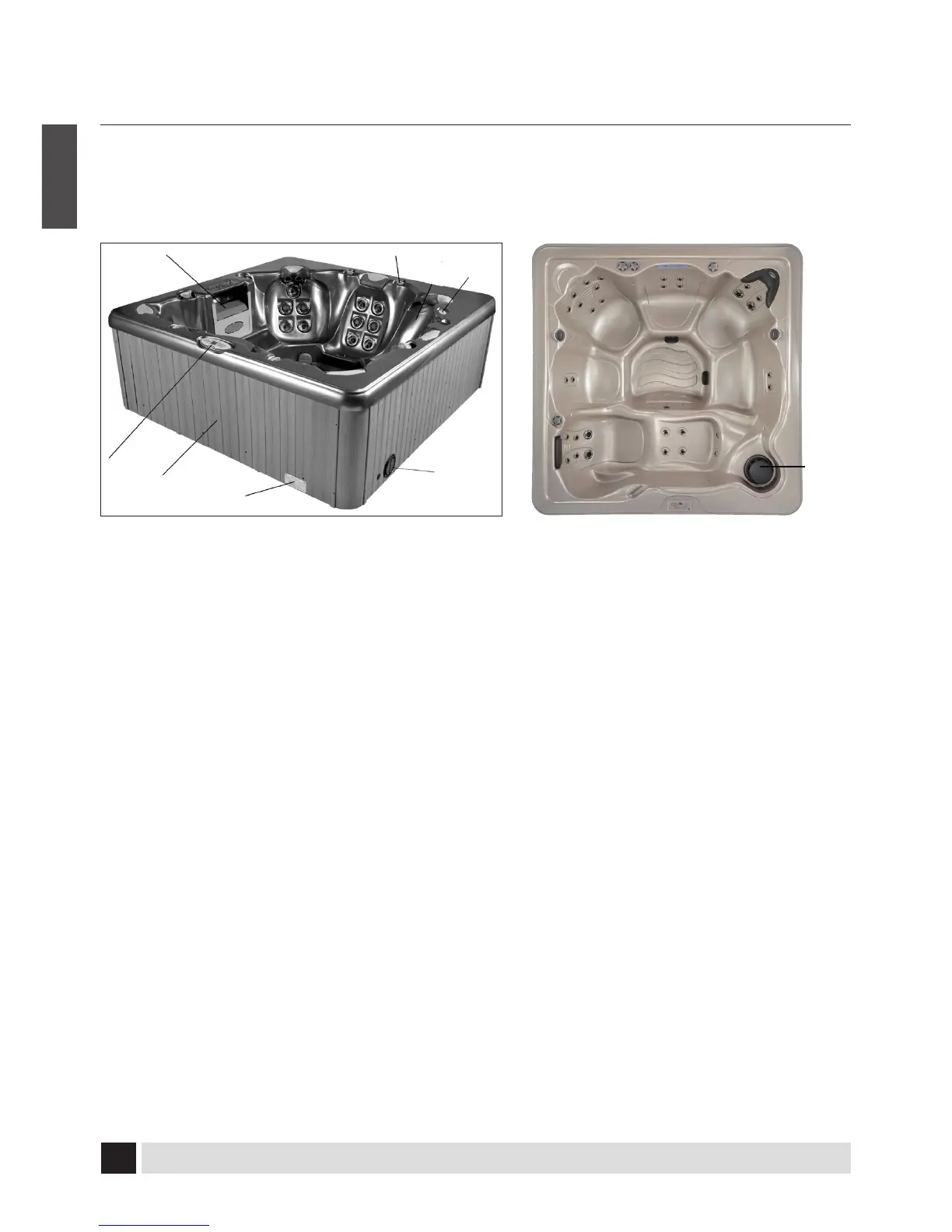

SPA SYSTEM COMPONENTS
A. Filter Skimmer/Weir: Removes
oating debris from the water surface,
provides a water return path to equipment,
and houses water lter element.
B. Topside Control Panel: Used to control
temperature setting, pump for jets,
and light.
C. Air Controls: Increases or decreases air
entering the jets. Close during heating for
maximum eciency.
D. Equipment Pack Service Panel (no user
serviceable parts): Spa support system
consisting of 2-speed pumps, heater, and
associated electrical controls are inside
this front panel (not shown).
E. Drain Access: (Adjacent to the equipment
service panel) Spa drain faucets.
F. Digital/Fiber Optic Lighting: Lighting
system that displays multiple coloured
lights in pre-programmed random, solid or
alternating colors (not shown).
G. Manufacturer’s Identication Label:
Contains identication information
for warranty service (serial number, model
number, etc.) and electrical information
(ampere rating and ampere requirements).
H. Auxiliary Control: Used to control jet
pumps or stereo functions.
I. Stereo/Speakers (not shown).
A
B
D
G
E
H
C
A
(Filter
Skimmer)
