4.Tighten the hex screw clockwise to secure the half of the connector connect to
the track. (Refer to Fig. 7)
5.Now repeat this procedure, threading the second connector into the lower clamp
channel (on the underside of the track).
6.Again, ensure the heads of the hex screws are accessible, and secure the second
connector in position by tightening the hex screw anti-clockwise (Refer to Fig. 7).
Hex screw
Hex key
d1
d2

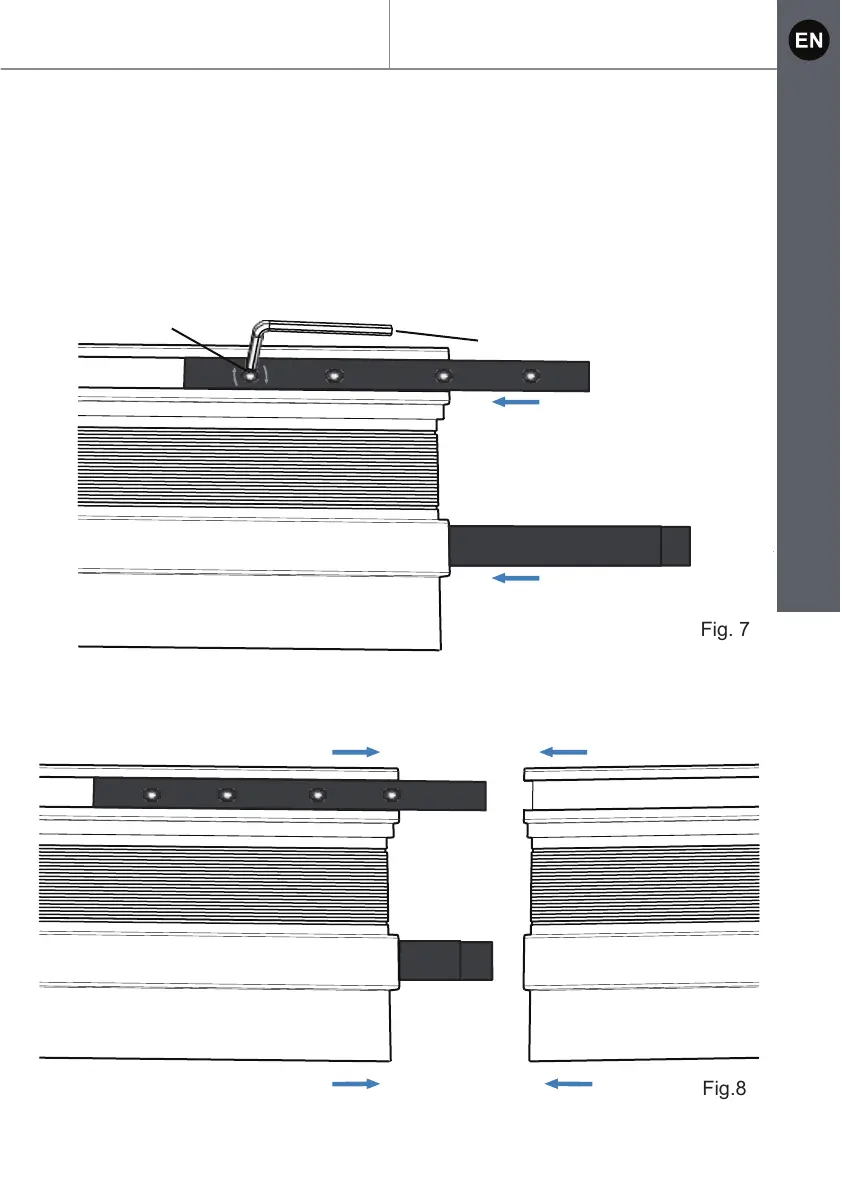

Fig. 7
7.Guide the free ends of the two track connectors into the clamp channels of the
se
cond track.(Refer to Fig. 8)
d1
d2
Fig.8
