MacDon 1000 - Frame Bracing and Roll Bar Installation

12

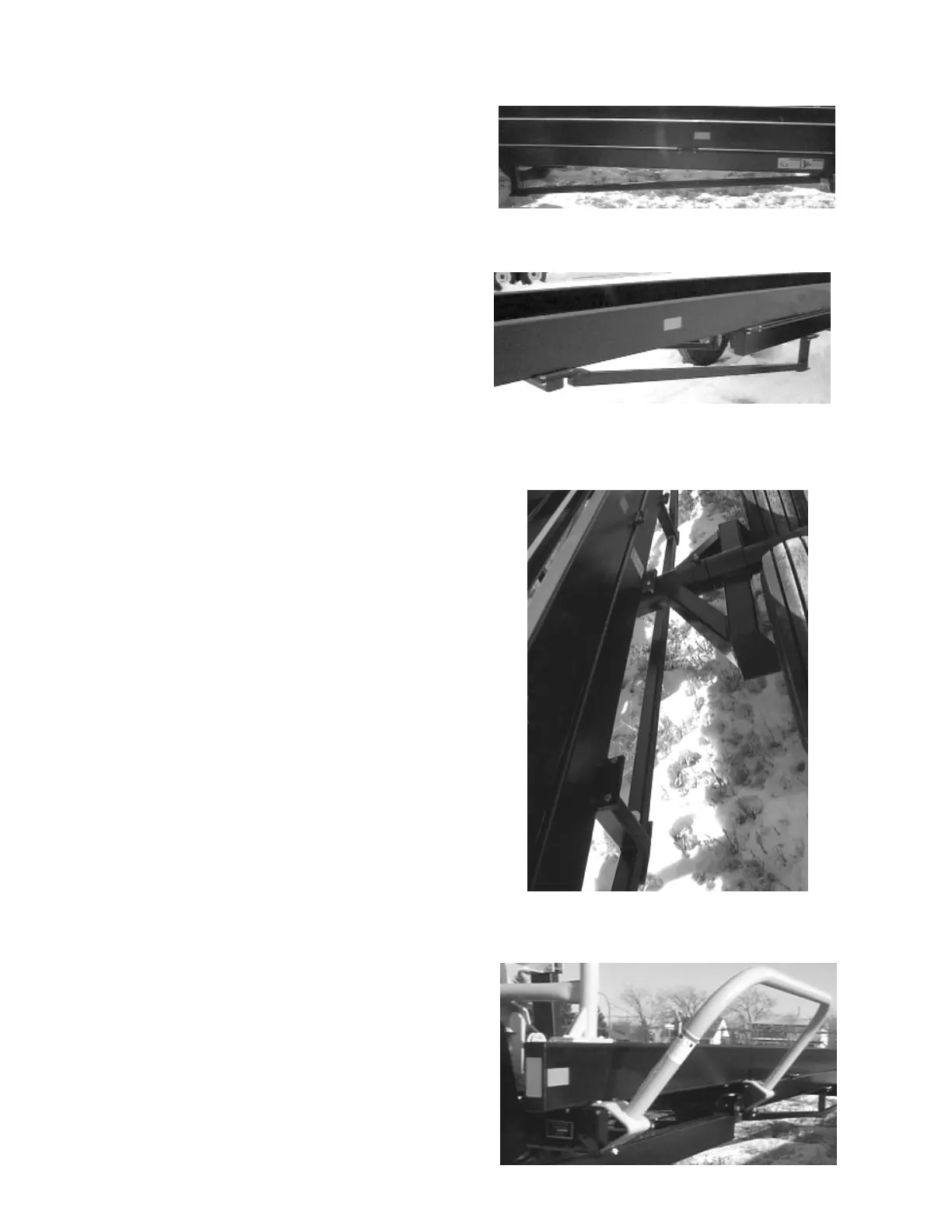

4. Bolt FRONT BRACES to the underside of
SUBFRAME using 1/2” x 1-1/2” grade 5
bolts.
5. Bolt REAR BRACES to the underside of
SUBFRAME and REAR
CROSSMEMBER using 1/2” x 1-1/2”
grade 5 bolts.
6. Bolt CENTER BRACES to FRONT &
REAR BRACES using 1/2” x 3-1/2” grade
5 bolts with flat washers on top of
CENTER BRACES.
7. Bolt ROLL BAR to left side of FRONT
CROSSMEMBER and SUBFRAME using
1/2” x 1-1/2” bolts.
BOLT FRONT BRACES TO SUBFRAME
BOLT CENTER BRACE TO
FR
O
NT
&
REAR BRA
C
E
BOLT ROLL BAR TO SUBFRAME &
FR
O
NT
C
R
OSS
MEMBER
BOLT REAR BRACES TO SUBRFRAME
A
ND RE
A
R
C
R
OSS
MEMBER
