13

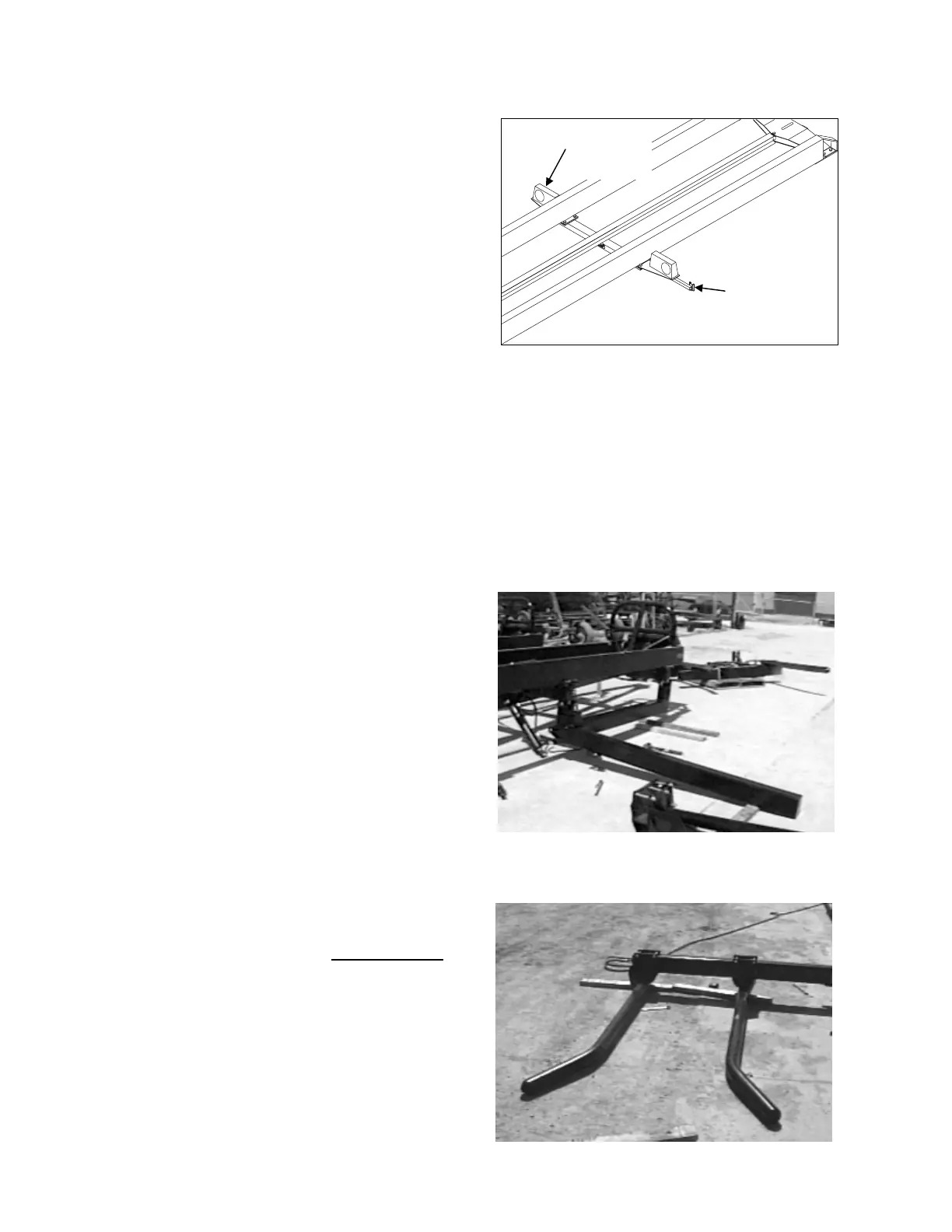

8. Bolt DUAL LAMP LEFT HAND
ASSEMBLY to the topside of the left side
of REAR CROSSMEMBER, NOTE: The
red lamp is to be visible from the rear.
Connect HARNESS coupler to
CROSSMEMBER HARNESS.
9. Bolt DUAL LAMP RIGHT HAND
ASSEMBLY to the topside of the right
side of REAR CROSSMEMBER, NOTE:
Red lamp to be visible from rear. Connect
HARNESS coupler to CROSSMEMBER
HARNESS.
LOADING ARM ASSEMBLY
Model 1000 Bale Carriers can be equipped
with either a “Fixed Loading arm” or the fully
hydraulic “Rotating Pick Up arm” (RPU).
FIXED ARM
NOTE: The “Fixed Loading arm” may also be
equipped with the optional 1/4 turn bale
deflector.
1. Connect RIGHT BALE LIFT ARM to right
side of FRONT CROSSMEMBER and
SUBFRAME using LIFT ARM PIN and
secure with 3/8” x 2-1/2” bolt. Use
SHORT CYLINDER PIN to attach rod end
of LIFT CYLINDER to BALE LIFT ARM
(secure with 3/8” x 2” bolt).
2. Slide a LEFT and RIGHT BALE FORK
onto BALE LIFT ARM and secure with
5/8” x 6” bolts with the heads forward
.
Position FORKS to suit bale. It is
recommended that the outside BALE
FORK be positioned at the end of BALE
LIFT ARM and the inner BALE FORK
about 36” (91 cm) from the end.
STANDARD BALE LIFT ARM
BALE FORKS
DUAL LAMP
LEFT HAND
ASSEMBLY
DUAL LAMP
RIGHT HAND
ASSEMBLY
INSTALL LAMP ASSEMBLIES
