14

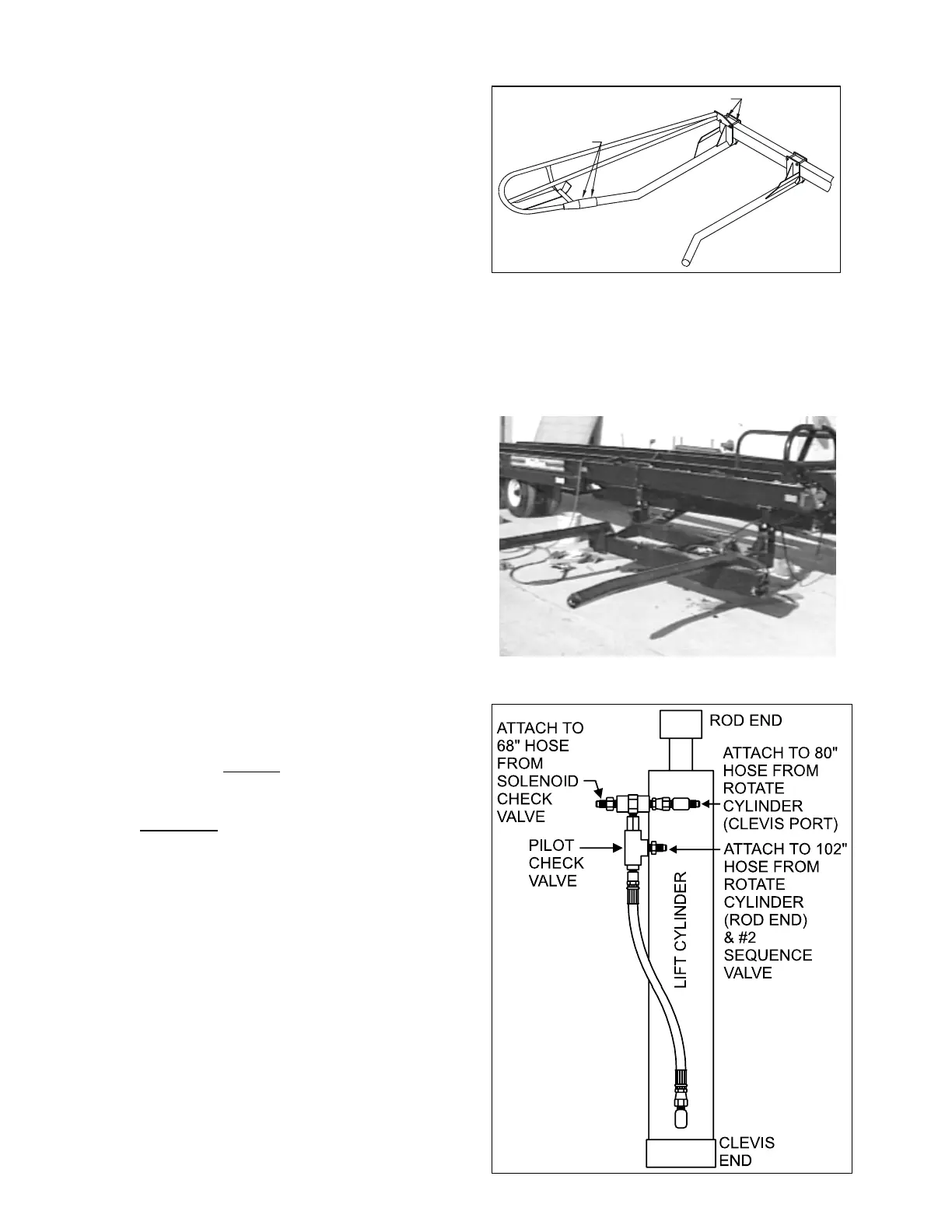

3. 1/4 Turn Deflector assembly: Attach the
RIGHT BALE DEFLECTOR to the outside
BALE FORK with 5/16” x 6-1/2” bolts
(heads forward) and 1/2” x 1-1/2” set
screws.
ROTATING PICK UP ARM (RPU)
The Rotating Pick Up arm is designed to
automatically pick up the bale, rotate it 90°
and load it onto the carrier. This allows the
operator to follow the baler around the field.
1. Remove the RPU from its shipping pallet
and connect ROTATING BALE LIFT ARM
to front and second crossmembers using
LIFT ARM PIN supplied. Secure with 3/8”
x 2-1/2” bolt. Use SHORT CYLINDER PIN
to attach rod end of LIFT CYLINDER to
BALE LIFT ARM (secure with 3/8” x 2”
bolt).
2. Detach hoses from the couplings installed
on the LIFT CYLINDER. Remove elbow
fitting from rod end
port and install a male
tee. Install pilot check valve assembly (the
hose end should connect to elbow in the
clevis end
port and the female swivel to
tee fitting).
PILOT CHECK VALVE ASSEMBLY
1/2" X 1-1/2"
SET SCREWS
5/16" X 6-1/2"
BOLTS
INSTALL BALE DEFLECTOR
ROTATING PICKUP UNIT
