15

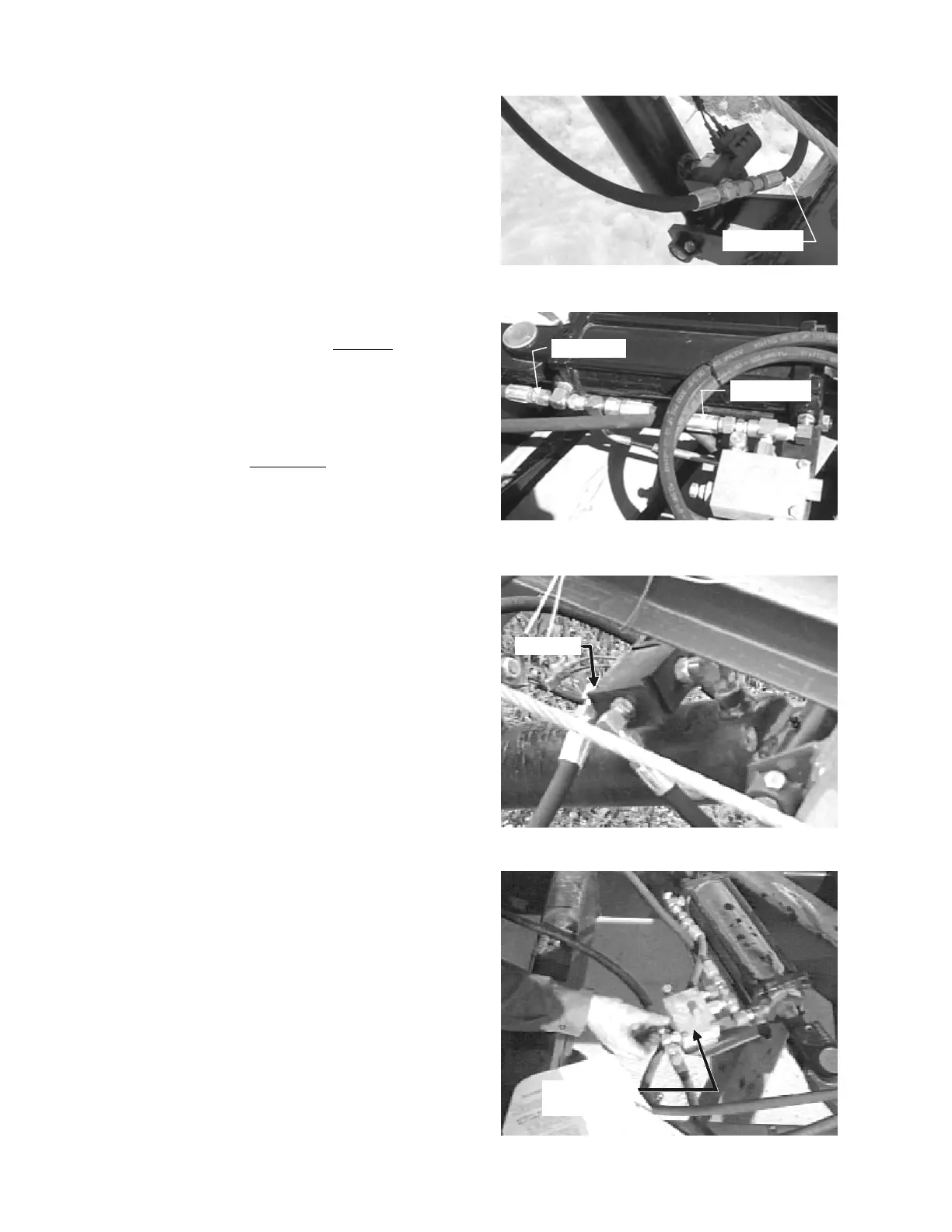

3. Connect 68” hose from tee on SOLENOID
CHECK VALVE to male connector on
pilot check valve assembly.
4. Connect 102” hose from rod end
port of
the ROTATE CYLINDER and #2 port of
the sequence valve to straight male
adapter on the pilot check valve. Remove
80” hose from elbow fitting in port #2 of
the SOLENOID VALVE. Connect one end
of 80” hose to clevis end
of the ROTATE
CYLINDER and the opposite end to tee
fitting on LIFT CYLINDER. NOTE: Make
sure both hoses are inserted through
hose loops along the top of the BALE
LIFT ARM.
5. Connect 60” hose to elbow fitting in port
#2 of the solenoid valve. Connect
opposite end to male tee in port #1 of
sequence valve.
PORT #2
SOLENOID VALVE
80" HOSE
102" HOSE
ROTATE CYLINDER HYDRAULICS
SOLENOID CHECK VALVE
68" HOSE
ATTACH HOSE TO SEQUENCE VALVE
SEQUENCE
VALVE
