OPERATION
TRANSPORTING THE HEADER
See "Transporting the Windrower" in Windrower Tractor Operator's Manual for recommended procedures for:
· Driving the Windrower on Roads
· Towing the Windrower on a Trailer
· Towing the Windrower without a Trailer
NOTE: For headers with divider rods, when transporting on a side-mount trailer, remove divider rods to narrow
the transport width.
LIFTING HEADER IN WORKING POSITION
If it is necessary to lift header once it has been lowered from shipping position to working position, see "Lifting
Vehicle Requirements" and "Chain Requirements" in Unloading & Assembly section before proceeding.

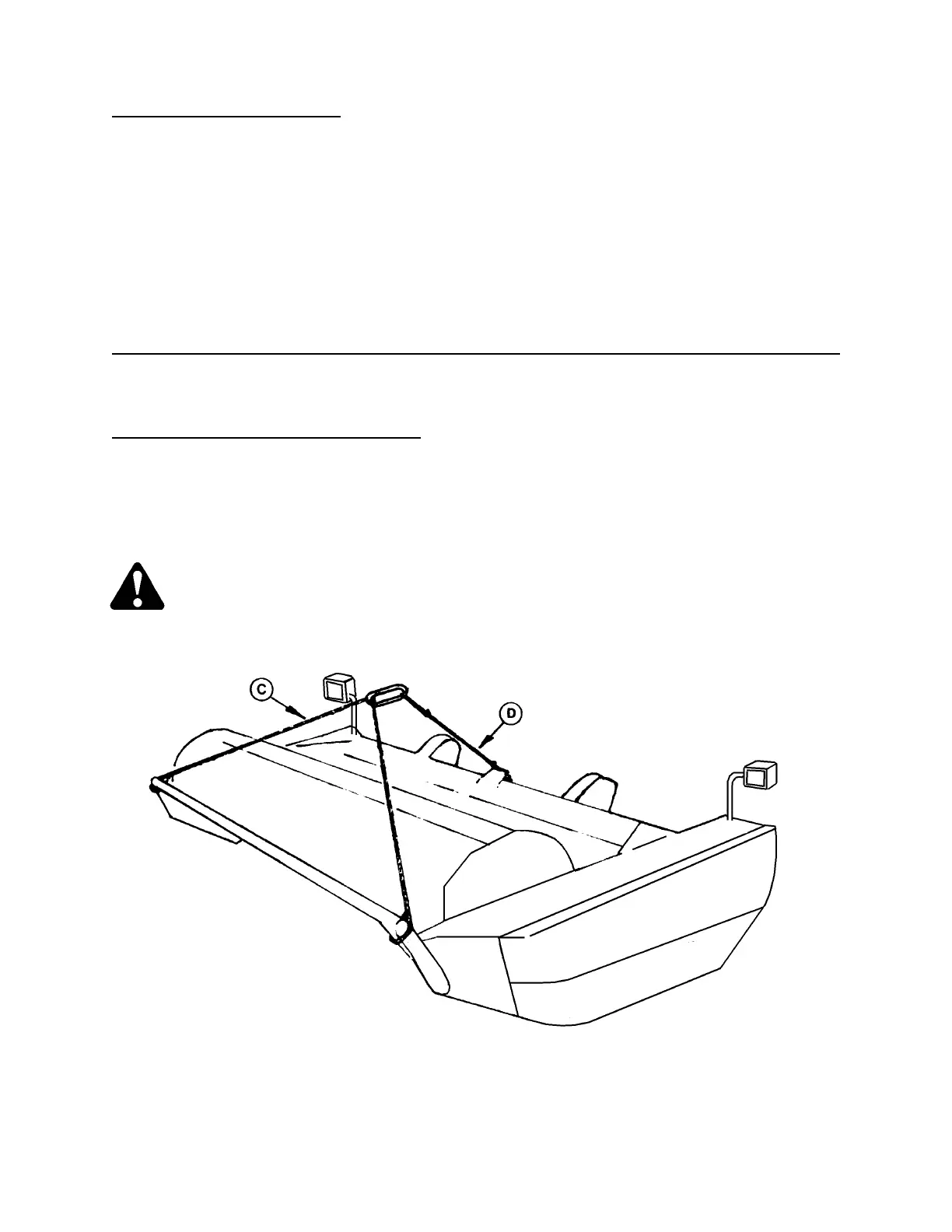

Attach one chain (C) from lifting vehicle to both ends of lean bar. Attach a second chain (D) from lifting vehicle
to center link anchor on frame tube as shown.
CAUTION: Be sure hooks are secure before lifting header. Stand clear when lifting, as
machine may swing.
