Form # 46620 Issue 01/06
75
UNLOADING & ASSEMBLY

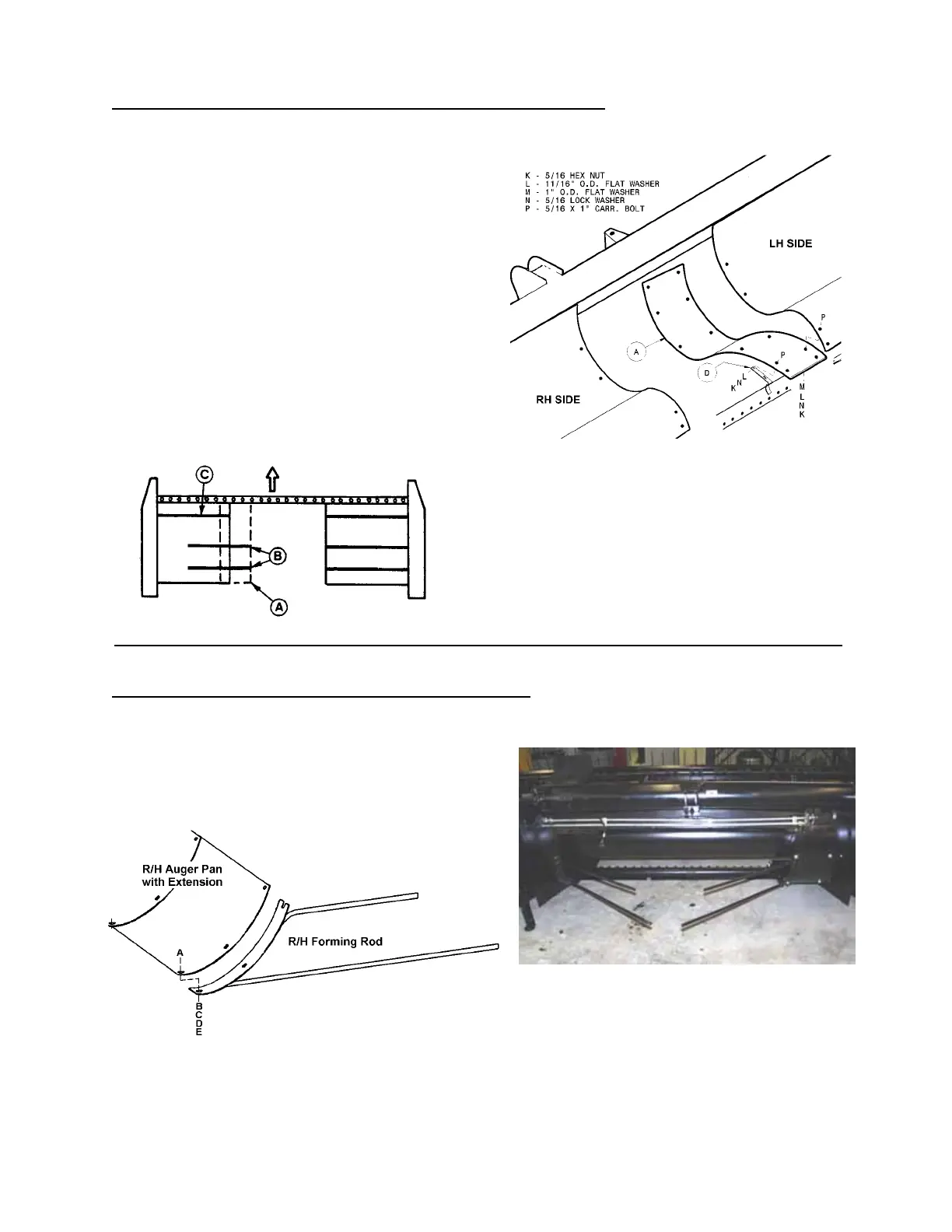

AUGER PAN EXTENSION INSTALLATION – GRASS SEED HEADER
One pan extension is provided to reduce delivery
opening from the maximum 68 inches (1720 mm)
to 59 inches (1490 mm). A second pan extension
may be ordered to further reduce opening to 50
inches (1260 mm).
NOTE: When installing the factory provided pan
extension (A):
1. The pan is factory assembled to be installed
on the left side of the delivery opening, with
cutterbar support (D) at inboard side. Install
hardware supplied as shown.
2. Move the two upper stripper bars (B) so end of
stripper is flush with edge of pan extension.
The lowest (most forward) stripper bar (C)
should remain in standard pan position as
shown. Re-adjust the upper stripper bars to
provide 1/8” (3 mm) clearance to auger. See
page 34.
FORMING ROD INSTALLATION – GRASS SEED HEADER
Install forming rods, placing hardware as shown. (3
places per side)
NOTE: Longer rod goes to bottom.
FORMING RODS
A – 5/16 NC x 1” Carriage Bolt
B – 13/32” I.D. Flatwasher
C – 11/32” I.D. Flatwasher
D – 5/16” Lockwasher
E – 5/16 NC Hex Nut
INSTALLING AUGER PAN EXTENSION
GRASS SEED HEADER
