SECTION 2 SAFETY

Form 169000 / 169040 12 Revision D

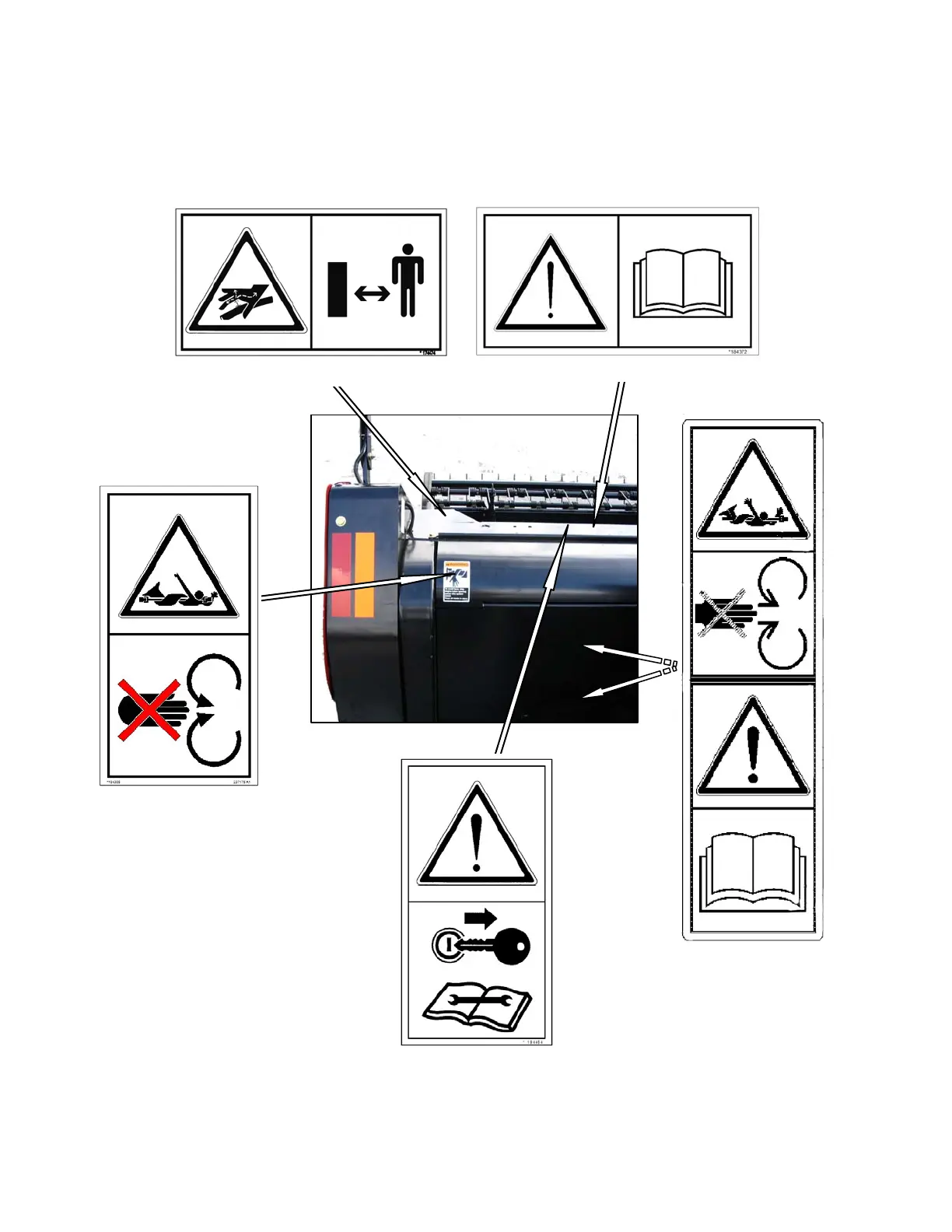

2.3.4 2-Panel Safety Sign Locations: Self-

Propelled

#184372

#194521

DRIVELINES

#184385

#174474

#194464
