MAINTENANCE AND SERVICING - M150 ENGINE
Form 169017 / 169087 / 169095 141 Revision C

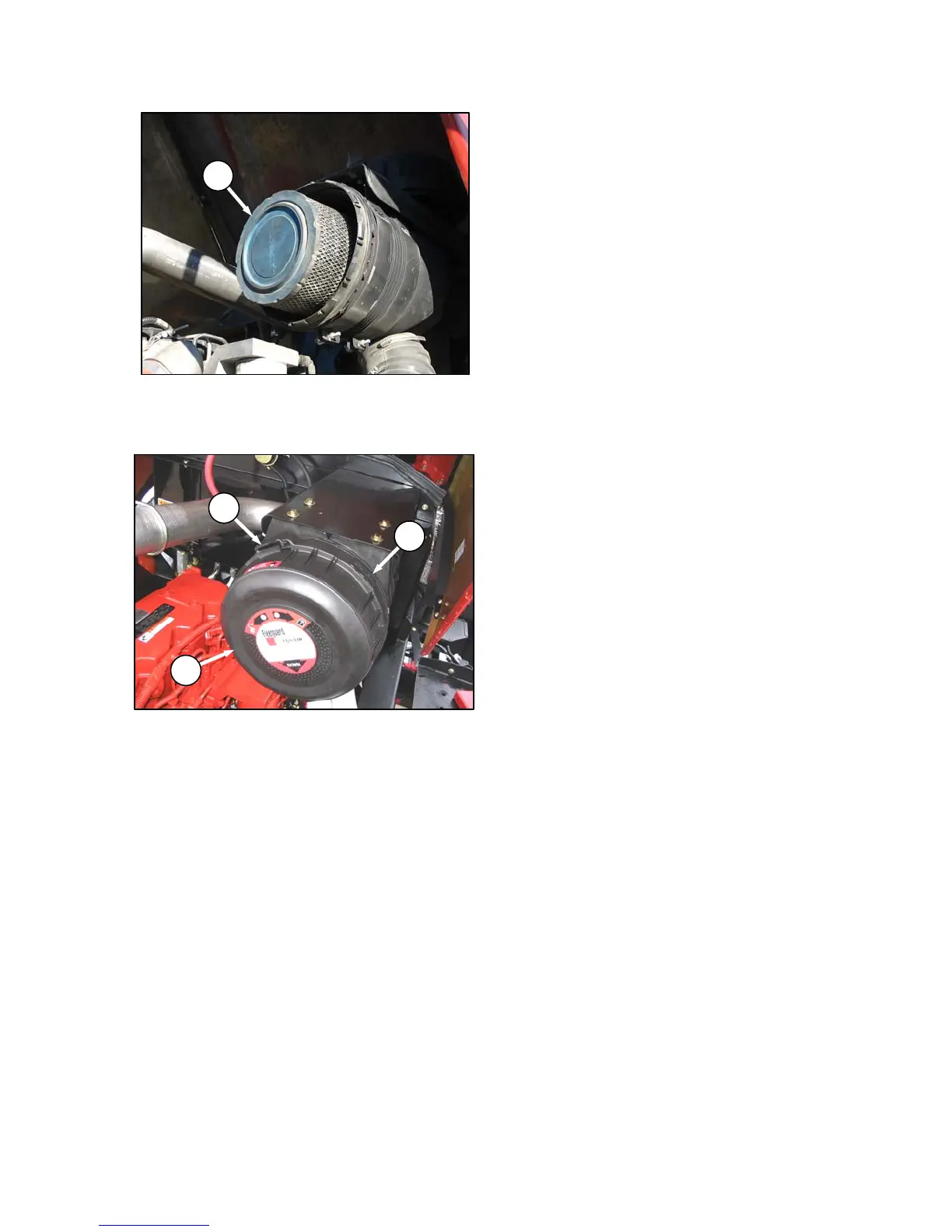

o. Insert primary filter element (J) into canister over
secondary element, and push into place, ensuring
that element is firmly seated in canister.
p. Position end cap (F) onto filter housing, with
vacuator valve pointing approximately “down”.
q. Align arrow (H) to unlock position on end cap, and
push end cap fully onto housing.
r. Rotate end cap clockwise until catch (G) engages
housing to prevent end cap from turning.
s. Close engine compartment hood.
7.8.5.2 Charge Air Cooling
After the intake air passes through the air filter, it
passes through the turbocharger which boosts the
pressure.
This process heats the air so it is passed through
a cooler before entering the engine intake.
The cooler is located in the cooling box behind the
radiator, and should be cleaned daily with
compressed air. Refer to Section 7.10.2 Cooling
Box Maintenance.
