SPECIFICATIONS
Form 169017 / 169087 / 169095 14 Revision C
4 SPECIFICATIONS

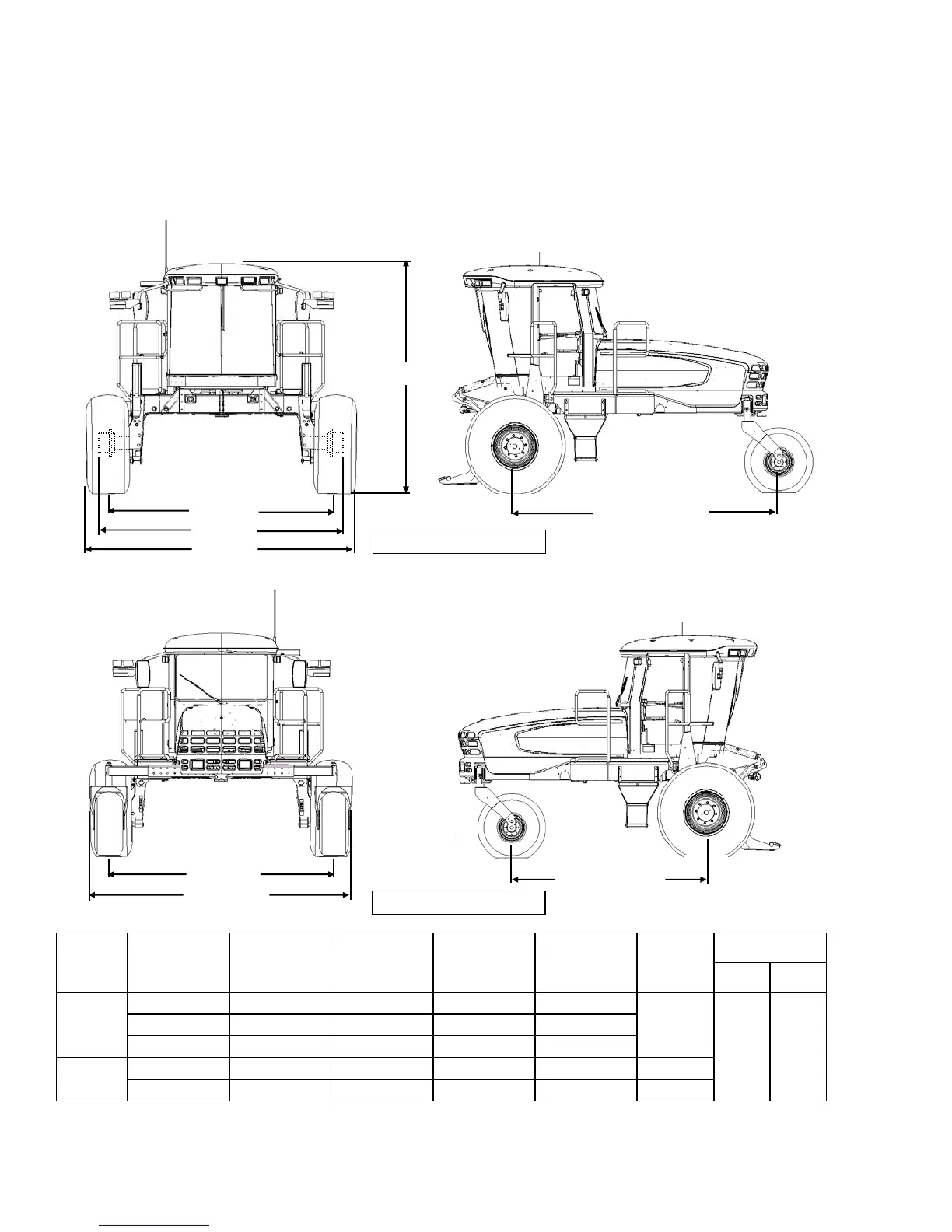

4.1 WINDROWER DIMENSIONS
Dimensions are with 18.4 - 26 drive tires and forked casters.
WHEEL
POSITION
TREAD
Inch (mm)
HUBS
Inch (mm)
CASTERS
Inch (mm)
TIRES
Inch (mm)
SHIPPING
Inch (mm)
WHEEL BASE
Inch (mm)
CAB
FWD
ENG
FWD
DRIVE
TIRE
Inner / Outer - 138.7 (3522) - -
142.9
(3630)
158.3
(4021)
120.7
(3066)
Outer / Outer 134.2 (3410) 146.1 (3712) - 157.1 (3990)
Inner / Inner 120.1 (3050) 131.6 (3342) - 150.0 (3810)
CASTER
TIRE
Minimum 93.2 (2367) - 115.4 (2932) - -
Maximum 135.8 (3448) - 158.0 (4013) - -
ENGINE - FORWARD
TREAD
CASTERS
CAB - FORWARD
45.7 in. (1160
TREAD
HUBS
TIRES
WHEEL BASE
WHEEL BASE
133 in. (3378 mm)
