OPERATOR’S STATION
Form 169017 / 169087 / 169095 27 Revision C
5.15 ENGINE CONTROLS/GAUGES
All engine controls and gauges are conveniently
located on the Operator’s console.

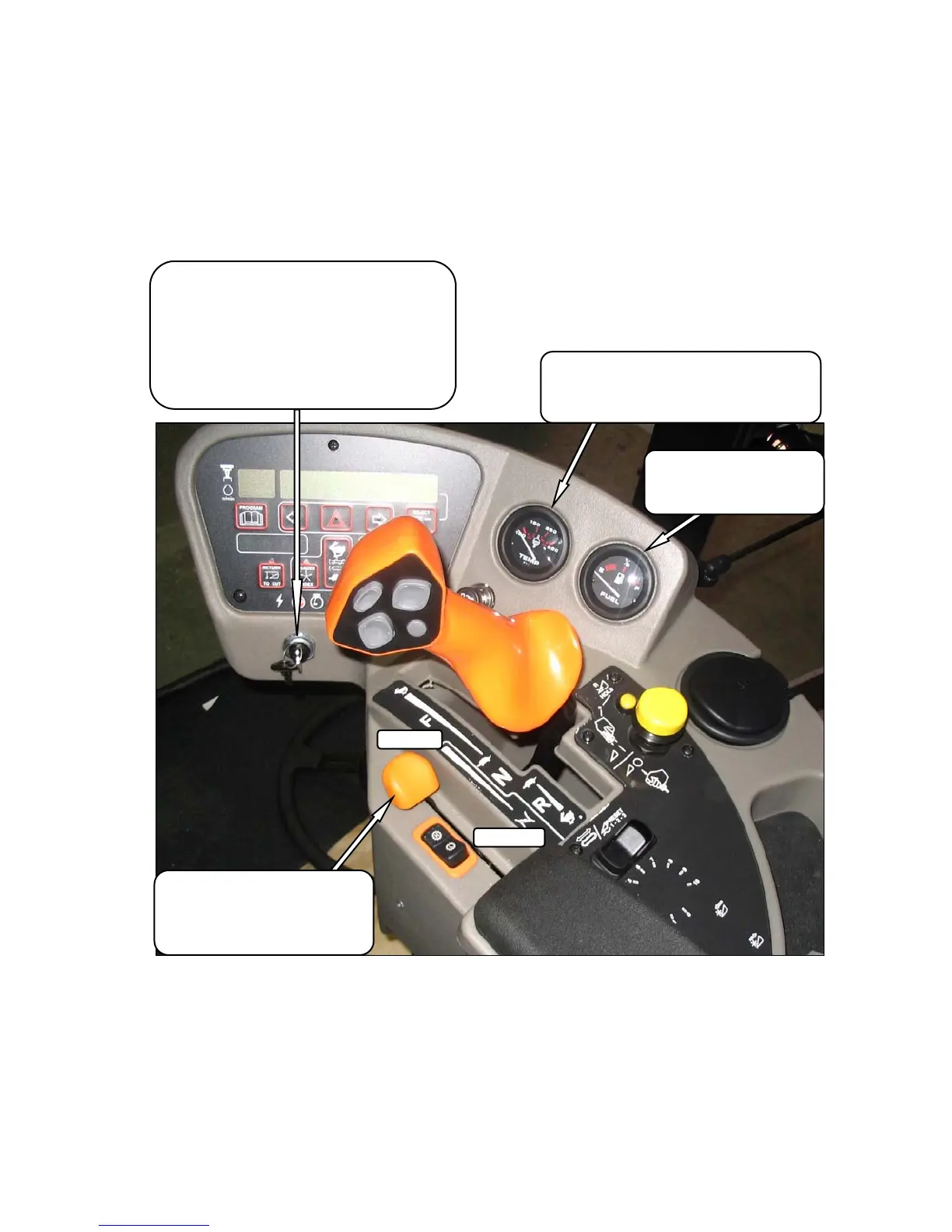

Refer to the following illustration for the location
and a description of each.
THROTTLE
Controls Engine RPM.
FULL - Push Lever Forward
OPERATING - See Section 6.3.6
CLOSED - Pull Lever Back
IGNITION SWITCH
ACC - Fully Counter Clockwise
OFF - All Electrical Systems Off
RUN - Clockwise
START- Fully Clockwise To Crank Engine
Release and Switch Returns to RUN
REMOVE KEY WHEN WINDROWER NOT IN USE.
KEY ALSO LOCKS DOORS.
FUEL
Indicates Fuel Level In Tank
E - Empty
F - Full
ENGINE TEMPERATURE
Indicates Engine Coolant Temperature
Normal Running 180°- 225°F (82°-107°C).
Warning Tone Over 230°F (110°C).
FULL
CLOSED
