OPERATOR’S STATION
Form 169017 / 169087 / 169095 41 Revision C
5.18.4 CAB DISPLAY MODULE (CDM) WARNINGS/ALARMS
The CDM displays warnings and sounds alarms to notify the operator of abnormal windrower status at
startup when the ignition is turned on, and at engine operating speeds above 500 rpm.

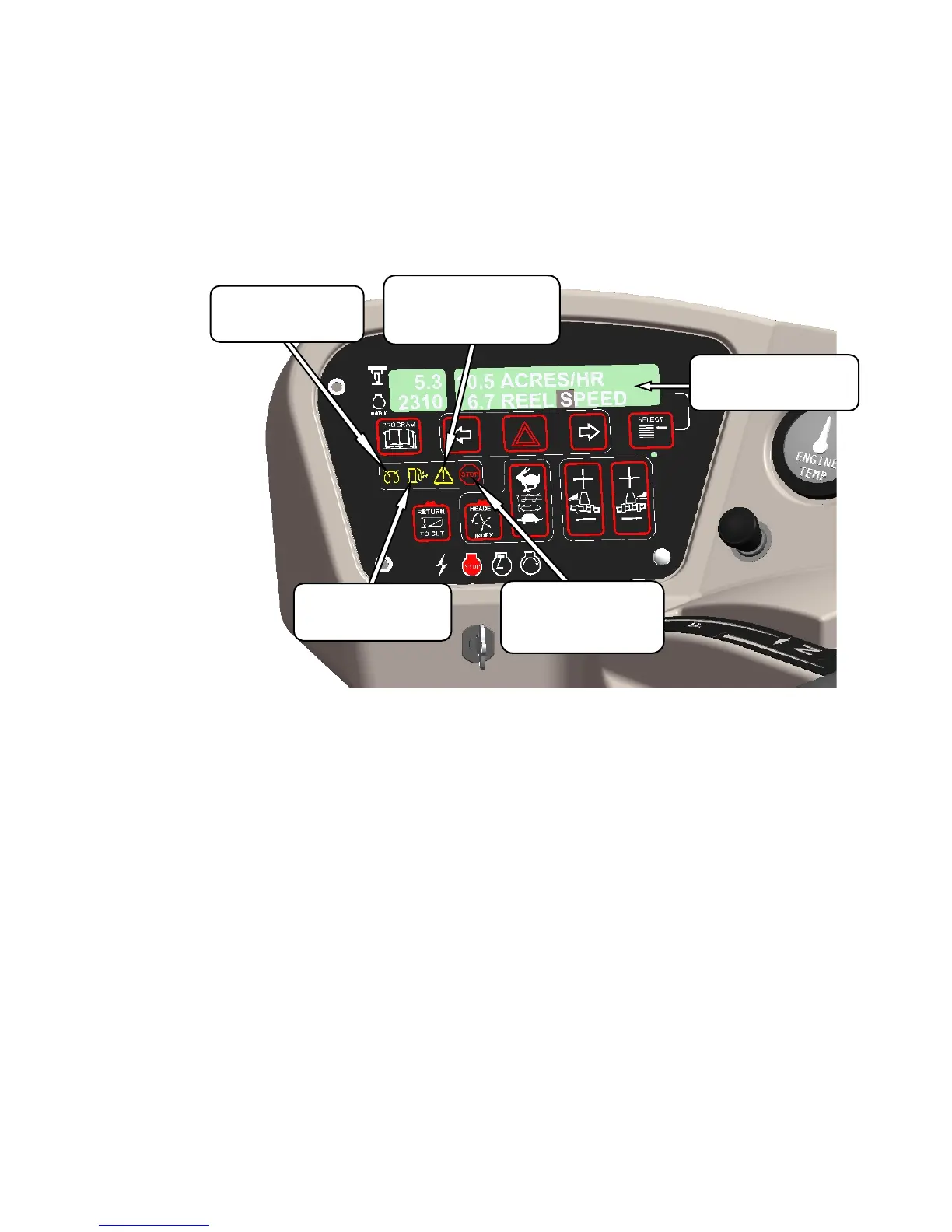

5.18.4.1 Engine Warning Lights
WATER IN FUEL
Illuminates Yellow
Service Recommended
CAUTION
Illuminates Yellow
Prompt Attention Is Required
Refer to Display Code
DISPLAY
Displays Malfunction Code
Refer to Pages 226 - 232.
ENGINE PREHEAT
Illuminates Yellow
Wait To Start Engine
STOP
Illuminates Red
Stop Engine Immediately
Refer to Display Code
To Next Page
