HEADER OPERATION - D SERIES
Form 169017 / 169087 / 169095 92 Revision C

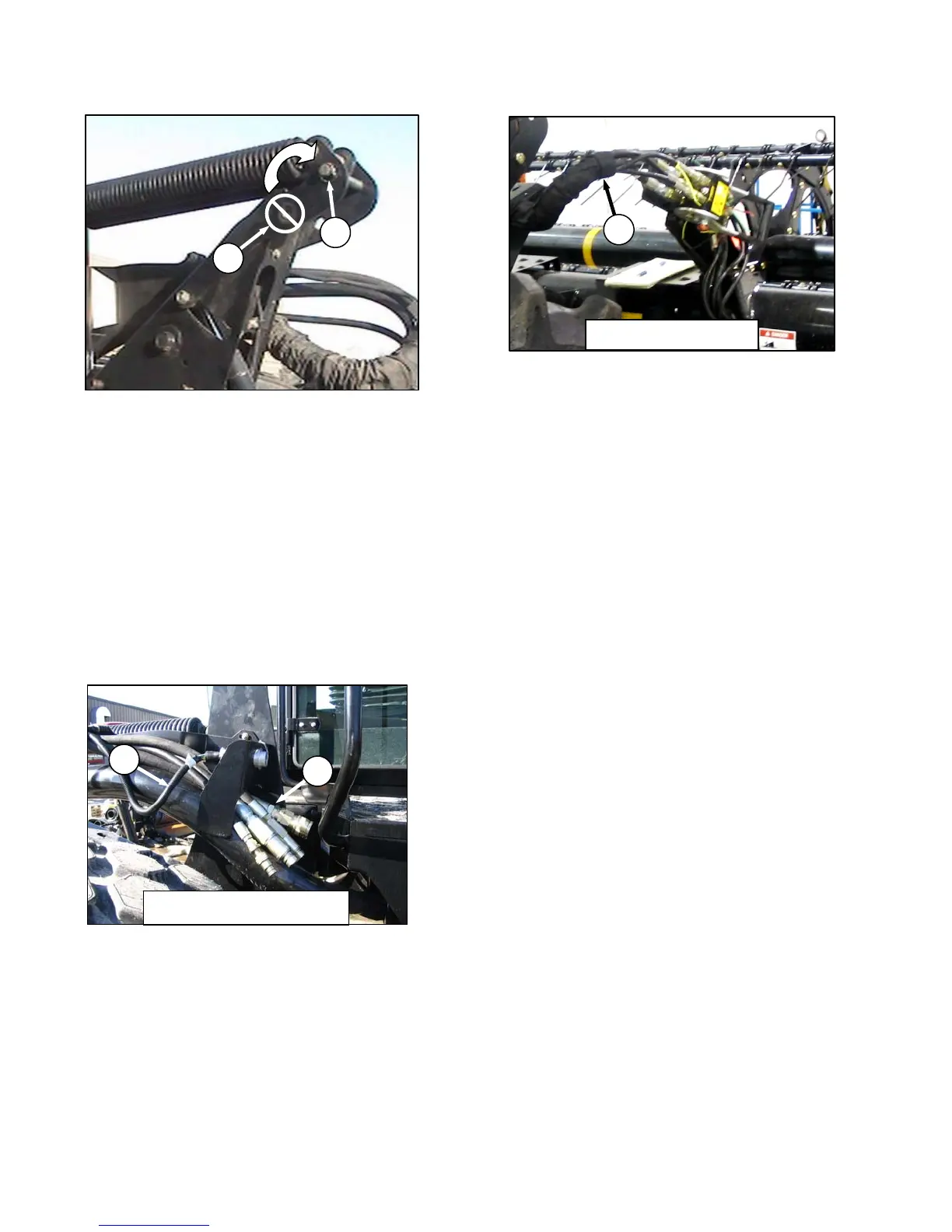

e. Remove pin from location (D) to disengage float
springs, and insert in storage hole (E). Secure
with lynch pin.
IMPORTANT
To prevent damage to the lift system when
lowering header lift linkages without a
header or weight box attached to
windrower, ensure that float engagement
pin is installed in storage location (E), and
not installed at hole location (D).
f. Disengage lift cylinder stops.
g. Start engine, choose a level area, and lower
header to the ground. Stop engine, and remove
key.
h. Disconnect header drive hydraulics (F) and
electrical harness (G) from header. Refer to the
Draper Header Operator’s Manual.
i. Disconnect reel hydraulics (H), and store on
bracket at windrower LH side.
(continued next page)
