4. If equipped with the earlier Centri-Max
®
design oil filter (Figure 78):
a. Loosen drain hose assembly (4) from
the Centri-Max
®
filter housing
assembly by loosening hose clamp (3)
at the Centri-Max
®
housing.
b. Remove two nuts (6) and two washers
(5) from studs (1) securing hose
adapter (7) at the cylinder block.
Discard O-ring (8).
c. Remove drain hose assembly (4).
d. Using tool J 24783, remove the
centrifugal oil filter housing (9).
Apply the filter wrench to area labeled “WRENCH
HERE” on the Centri-Max
®
filter housing.
Application outside of the labeled area will result
in damage to the Centri-Max
®
housing.
e. Remove and discard the filter seal (2)
and the centrifugal cartridge (10).
Clean the filter housing.
78

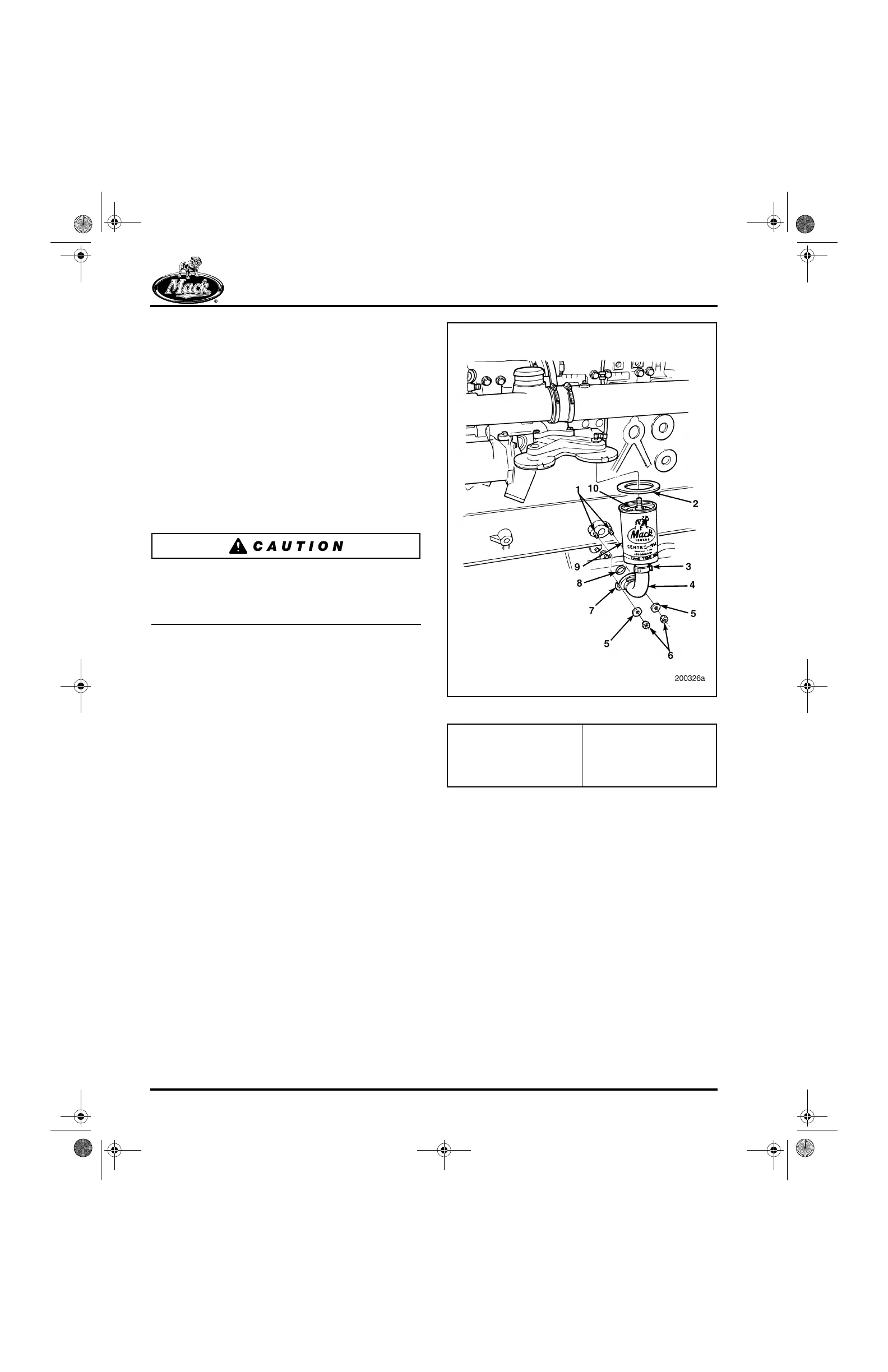

Figure 78 — Centri-Max
®
Housing
1. Studs
2. Seal Ring
3. Clamp
4. Drain Hose Assembly
5. Washers
6. Nuts
7. Adapter
8. O-Ring
9. Centri-Max
®
Housing
10. Centri-Max
®
Element
