REPAIR INSTRUCTIONS
Crankshaft Front Seal Installation
[211 JB]
SPECIAL TOOLS REQUIRED
r Crankshaft Front Seal Installer J 37715-A
r Crankshaft Front Seal Adapter J 37715-2
INSTALLATION PROCEDURE
Installation depth of the E-Tech™ engine front
crankshaft seal, relative to the front crankshaft
stem, is controlled by the installation tool adapter.
Ensure that the correct adapter, J 37715-2, is
used.
Refer to Figure 269.
1. Position the lip-type seal on the seal installer
(J 37715-2 adapter in combination with
J 37715-A), with the solid portion of the seal
outward (toward the tool).
2. Position the tool over hub and into the seal
opening.
269

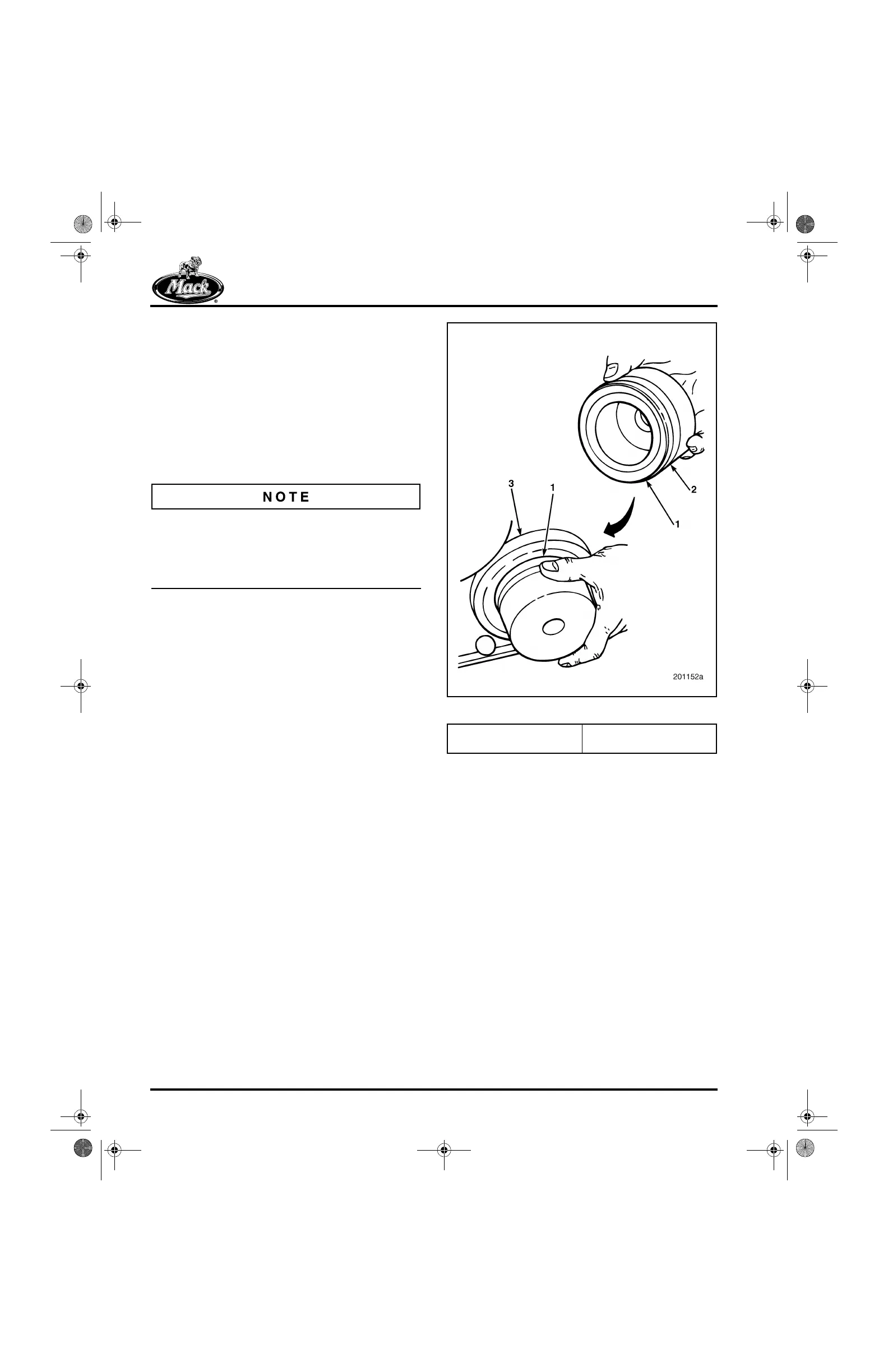

Figure 269 — Crankshaft Front Seal Installation
3. Insert the hub capscrew into the hole in the
seal installation tool and draw the seal in
until the tool bottoms out on the face of the
crankshaft.
4. Remove the tool and check the seal to
ensure it has been evenly installed.
1. Front Cover Seal
2. Seal Installer J 37715-A
3. Front Cover
