REPAIR INSTRUCTIONS
SPECIAL TOOLS REQUIRED
r Engine Stand J 29109
r Adapter Plate J 38048
PROCEDURE
Refer to Figure 82.
1. Using three mounting capscrews (2), secure
adapter plate J 38048 (1) to the left side of
the engine.
2. Secure adapter plate (1) to engine stand
J 29109 (3) with six mounting capscrews (4).
3. Remove lifting device from the engine.
82

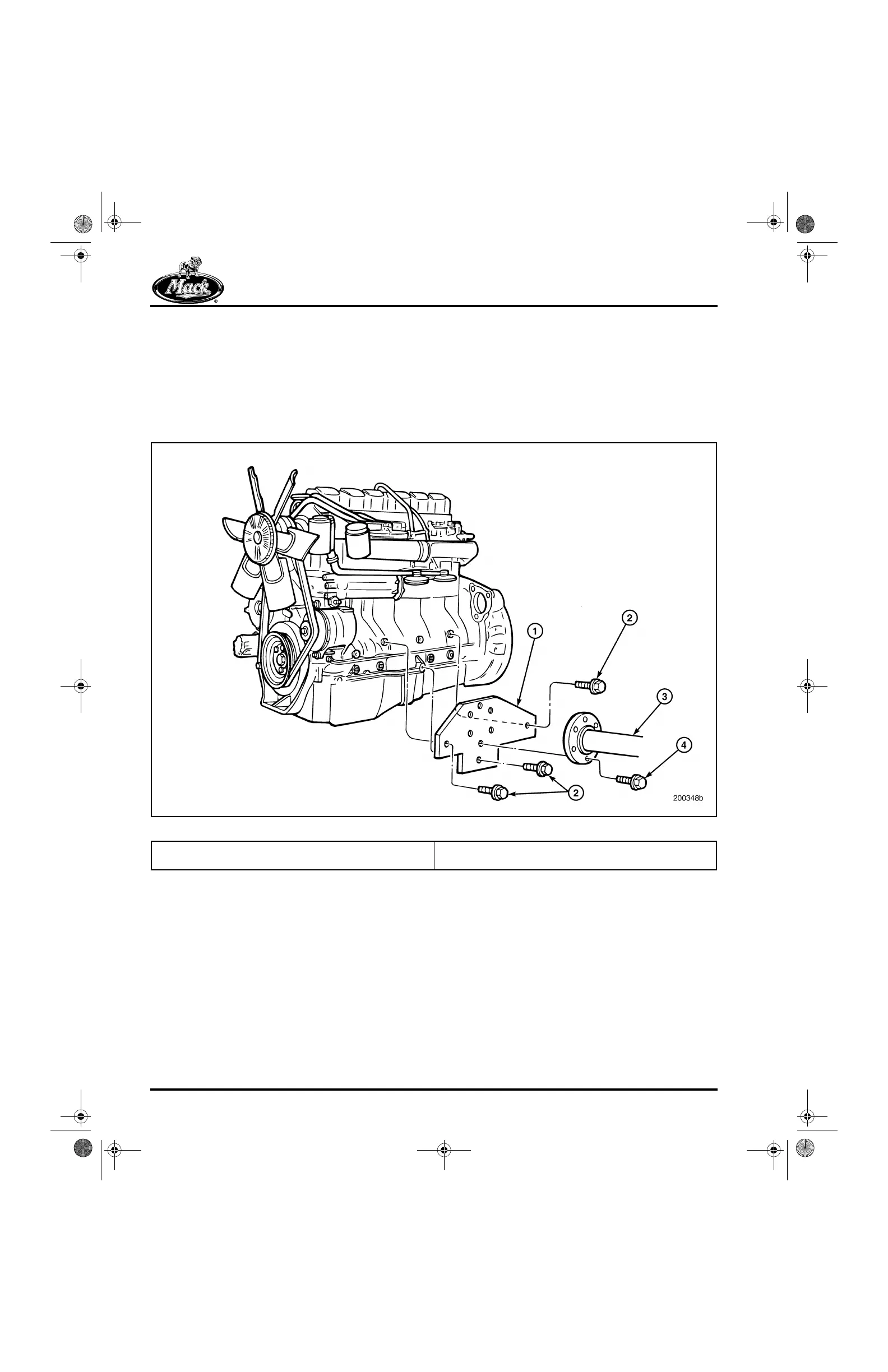

Figure 82 — Engine Mounting in Stand
1. Adapter Plate J 38048
2. Capscrews
3. Engine Stand J 29109
4. Capscrew
