Page 124
REPAIR INSTRUCTIONS
Oil pans with isolating gaskets are secured with a
combination of shouldered bolts and shouldered
studs with separate nuts (two piece) or integral
hex-head shoulder studs (one piece) along the
pan rails. Some early engine versions used an
additional washer between the nut and the
isolator.
109

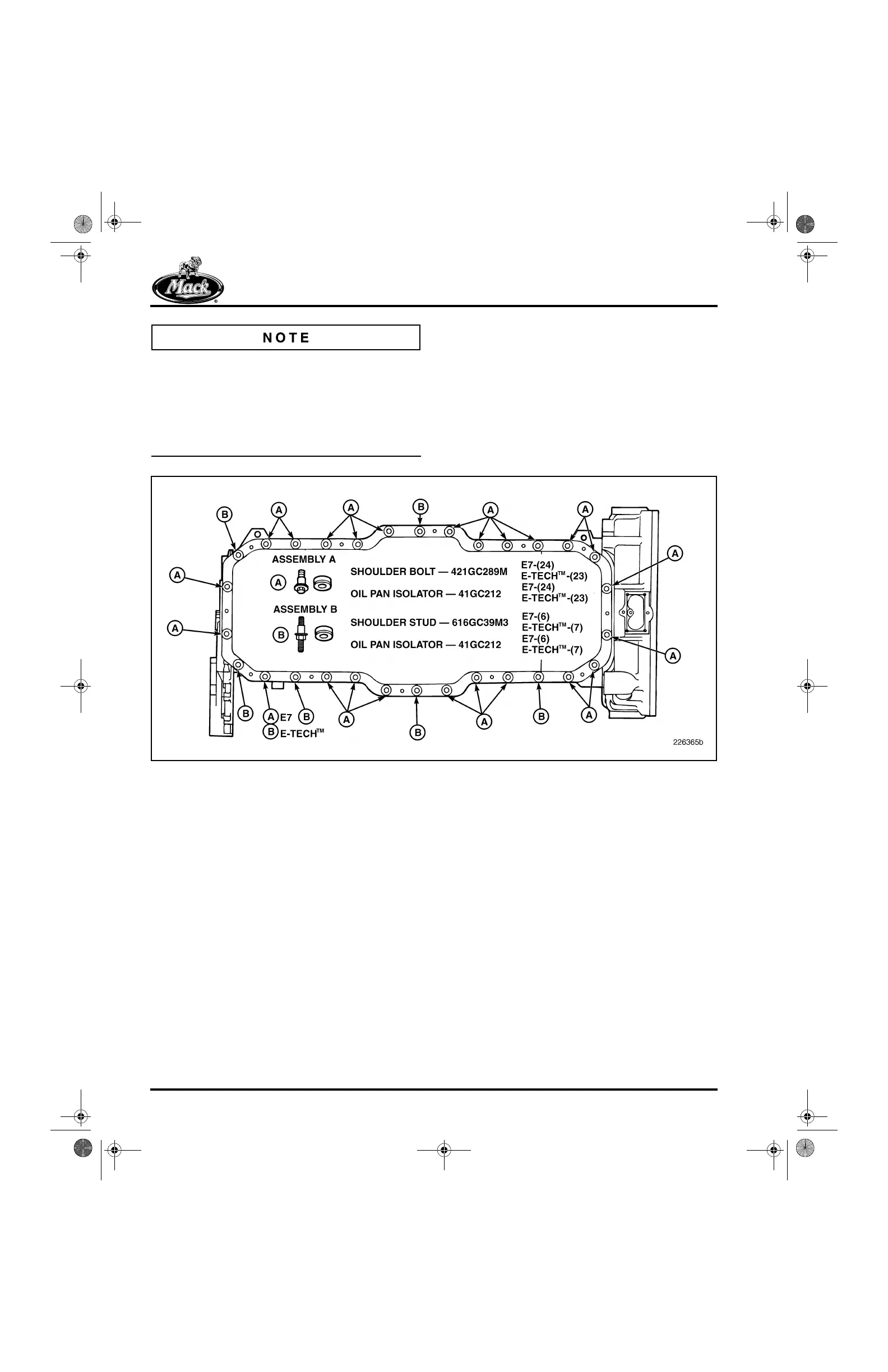

Figure 109 — Isolating Oil Pan Hex-Head Shoulder Bolt (A) and Shoulder Stud (B) Locations
