REPAIR INSTRUCTIONS
Page 149
Oil hole alignment of the front bushing-to-cylinder
block oil holes must be checked prior to, and at
the completion of, installation. The cylinder block
rear bushing bore has no oil holes to align with
the bushing oil holes, so simply install the
bushings with the indexing notches at the 5:30
and 10 o’clock positions. Refer to Figure 141 and
Figure 142.
141

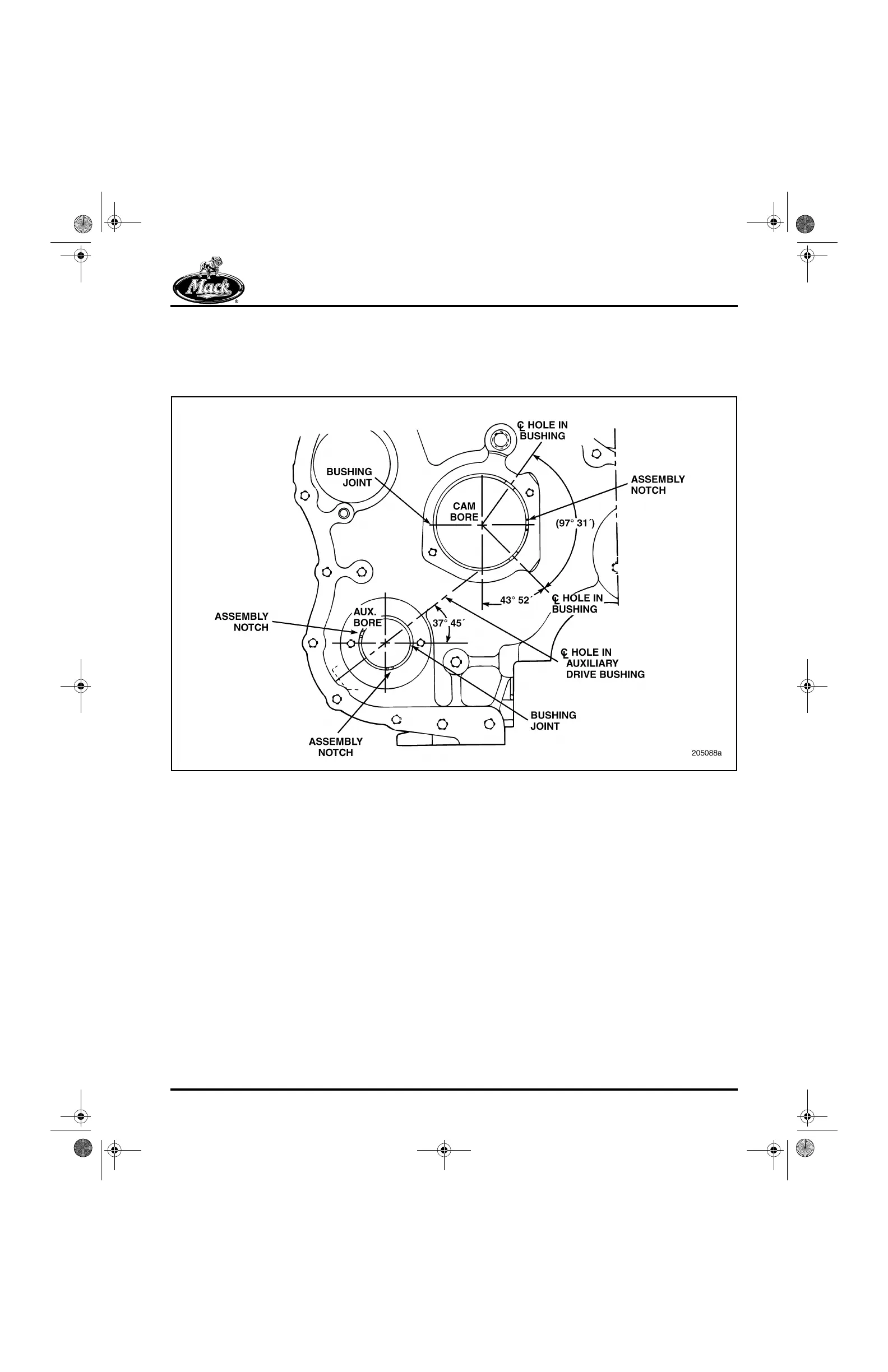

Figure 141 — Front Camshaft and Auxiliary Shaft Assembly Notch Locations
