REPAIR INSTRUCTIONS
Page 205
212

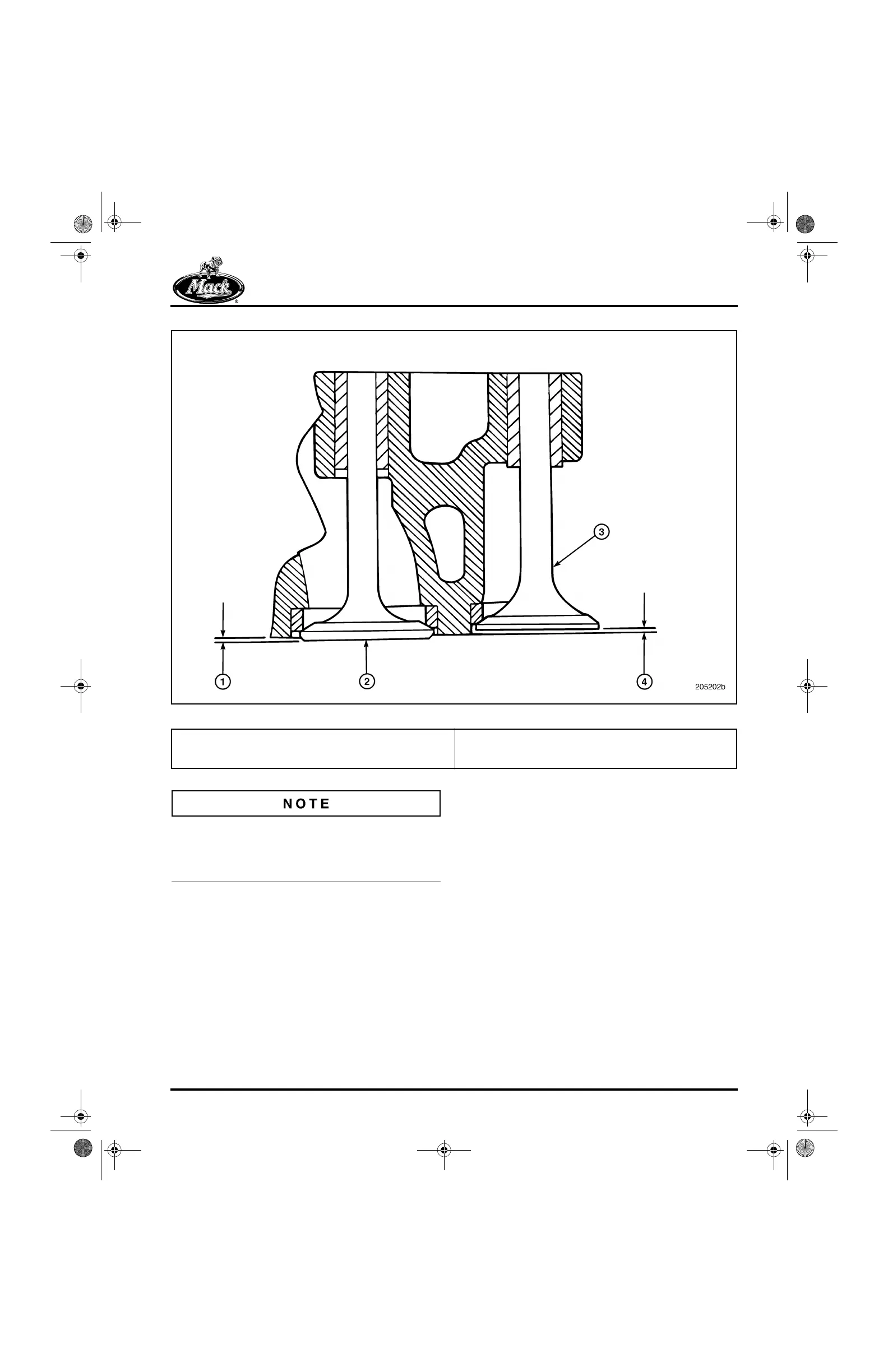

Figure 212 — Inlet/Exhaust Valve Head Depth Measurement
If the dimensions are not within specification,
machine the valve seat insert and/or valve face
as necessary. Refer back to the Valve Seat Insert
Installation procedure in this section.
1. Inlet Protrusion Above Deck: 0.0425 inch
+0.009/−0.007 inch (1.0795 +0.229/−0.178 mm)
2. Inlet Valve
3. Exhaust Valve
4. Exhaust Valve Depth Below Deck: 0.021 inch
+0.009/−0.007 inch (0.553 +0.229/−0.178 mm)
