DESCRIPTION & OPERATION
Page 51
Ports for the V-MAC III oil pressure and oil
temperature sensors are located on this mounting
assembly. Remote oil supply ports are provided
for the turbocharger, and also to supply oil
pressure for other items such as a turbo-
unloader, REPTO, a mechanical oil pressure
gauge or a remote-mounted centrifugal oil filter.
57

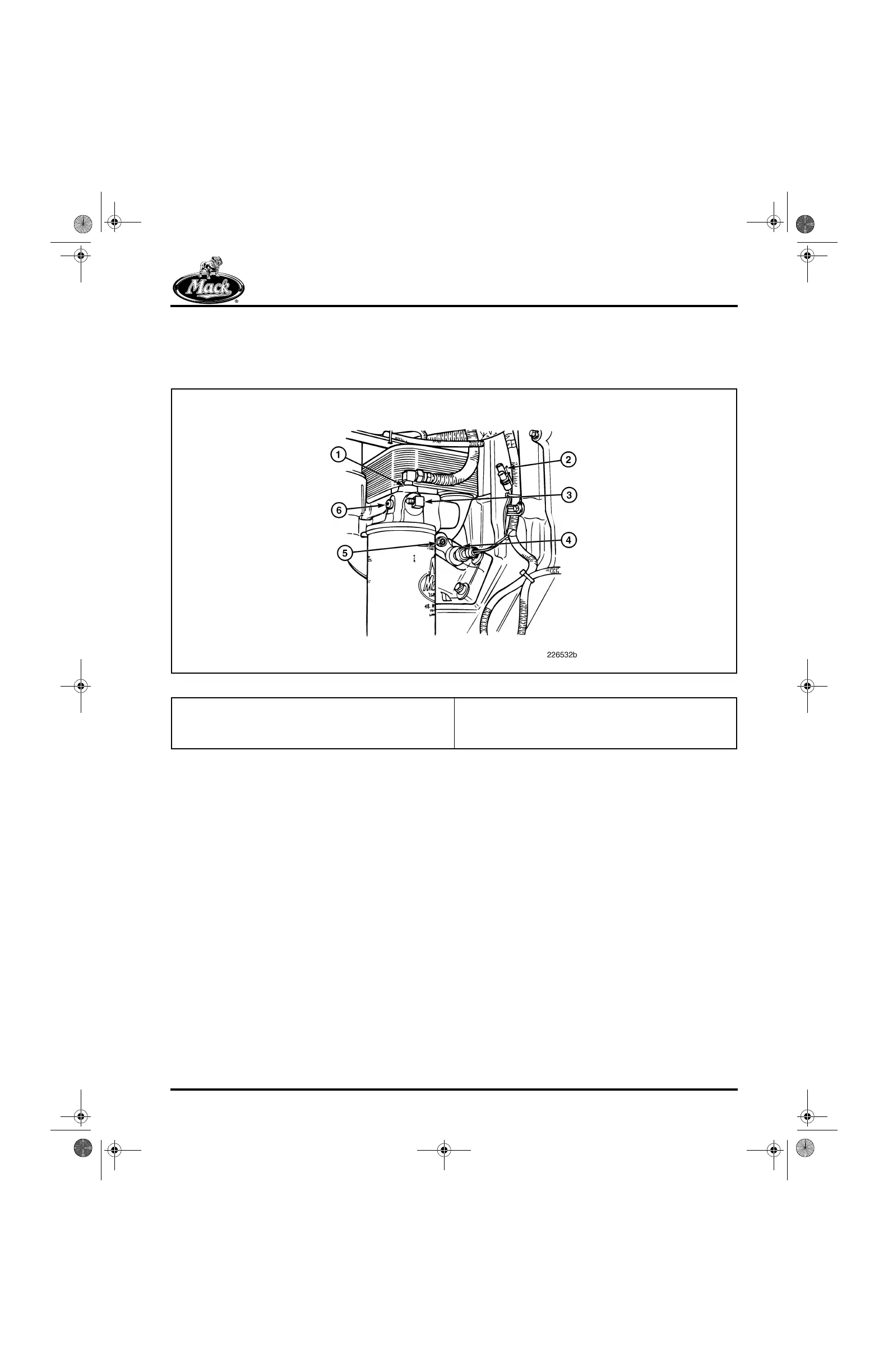

Figure 57 — Oil Supply Ports
1. Turbocharger Oil Supply Port
2. Oil Temperature Sensor Harness Connectors
3. Oil Supply Port for REPTO, Turbo Unloader, Remote-
Mounted Oil Filter
4. Oil Pressure Sensor
5. Oil Temperature Sensor Port
6. Oil Supply Port for Mechanical Oil Pressure Dashboard
Gauge
