Mackie SRM-Flex User Manual

SRM-Flex Portable Column PA System
8
SRM-Flex Portable Column PA System
Small Club System
Hookup Diagrams continued...

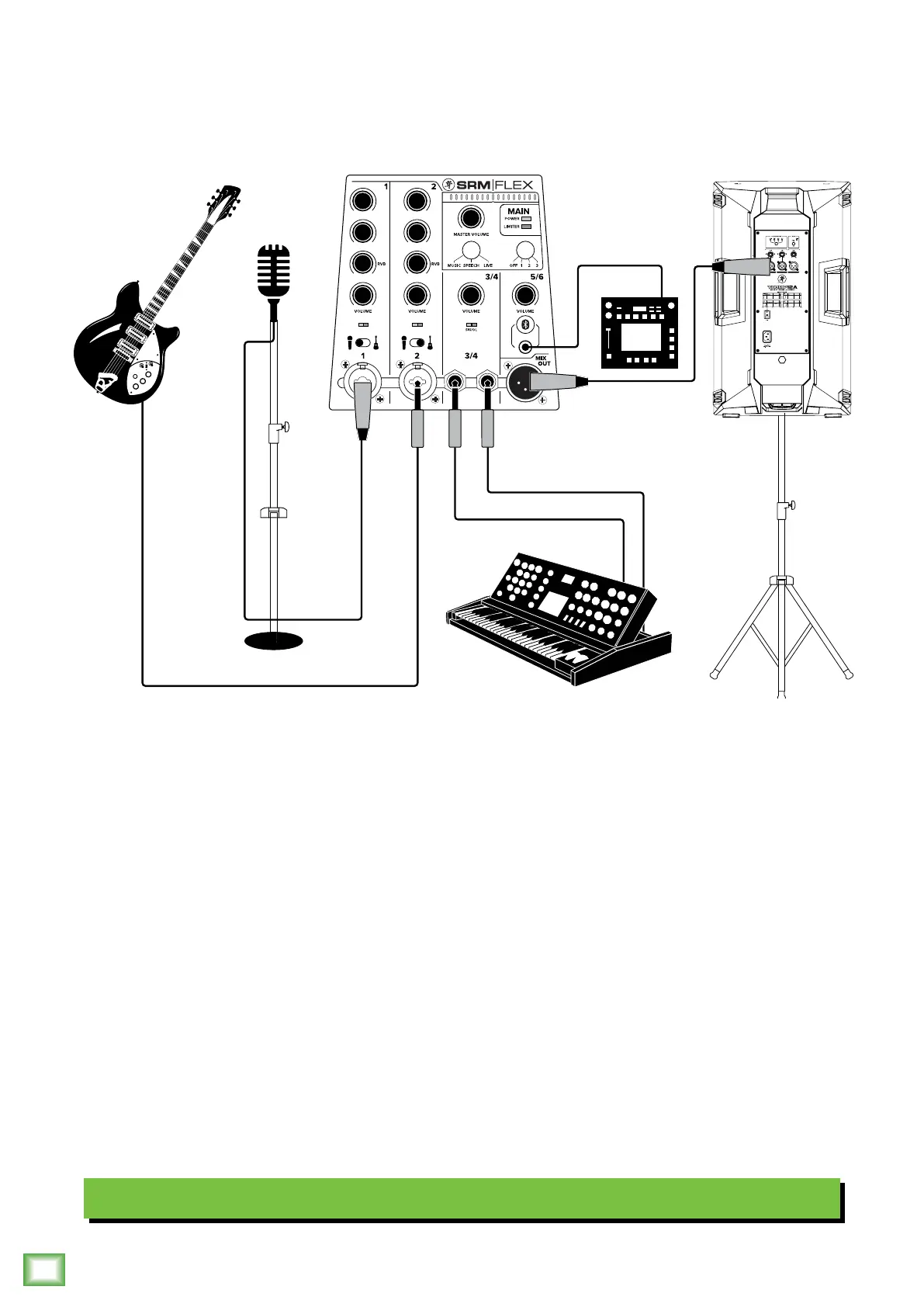

Now we’re on to the small club system. SRM-Flex is great because it breaks down into a smaller, more portable system,
leaving room in your ride for all of the other necessary gear.
Here we hooked up a mic to channel  [mic-line / Hi-Z switch is set to “mic” (switch lef)] and a rad guitar to channel 2
[mic-line / Hi-Z switch is set to “Hi-Z” (switch right)]. An analog synthesizer is plugged directly into stereo inputs 3/4
and a drum machine into the /8" stereo input 5/6.
The last connection is an XLR cable from the mix out jack of the SRM-Flex to the channel  input of a Mackie Thump2A
loudspeaker. This can deliver the sound to people who aren’t near the stage or SRM-Flex.
The speaker mode may be set to live. There’s a crowd waiting to hear your music, go break a leg!
EQ RVB
LOW
HI
LOW
HI
SIG/OL SIG/OL

Mackie SRM-Flex Specifications

General

Woofer	Yes
Speaker type	-
Woofer diameter	254 mm
Tweeter diameter	51 mm
Number of drivers	7
Speaker placement	Floor
Audio output channels	- channels
Number of woofer drivers	1
Number of tweeter drivers	6
Woofer diameter (imperial)	10 \
Tweeter diameter (imperial)	2 \
Amplifier class	D
RMS rated power	1300 W
Sound pressure level (max)	118 dB
Product color	Black
Recommended usage	Stage
Bluetooth version	4.2
Connectivity technology	Wired & Wireless
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
AC adapter output current	10 A
Power consumption (typical)	110 W
Suitable for outdoor use	No

Weight and Dimensions

Depth	330 mm
Width	366 mm
Height	2005 mm
Weight	13400 g
