Madman EMS-3 Operating Manual Page 11
High Alarm:
Enter the pressure threshold for when the high alarm must be activated. Any pressure above this value will activate the
alarm.
High Caution:
Enter the pressure value for the high caution. This is the lower value of the upper yellow band.
Low Caution:
Enter the pressure value for the low caution. This is the upper value of the lower yellow band.
Low Alarm:
This enables or disables the pressure low alarm.
Low Alarm:
Enter the pressure threshold for when the low alarm must be activated. Any pressure below this value will activate the
alarm.
Alarm:
Select which output the alarm must activate.

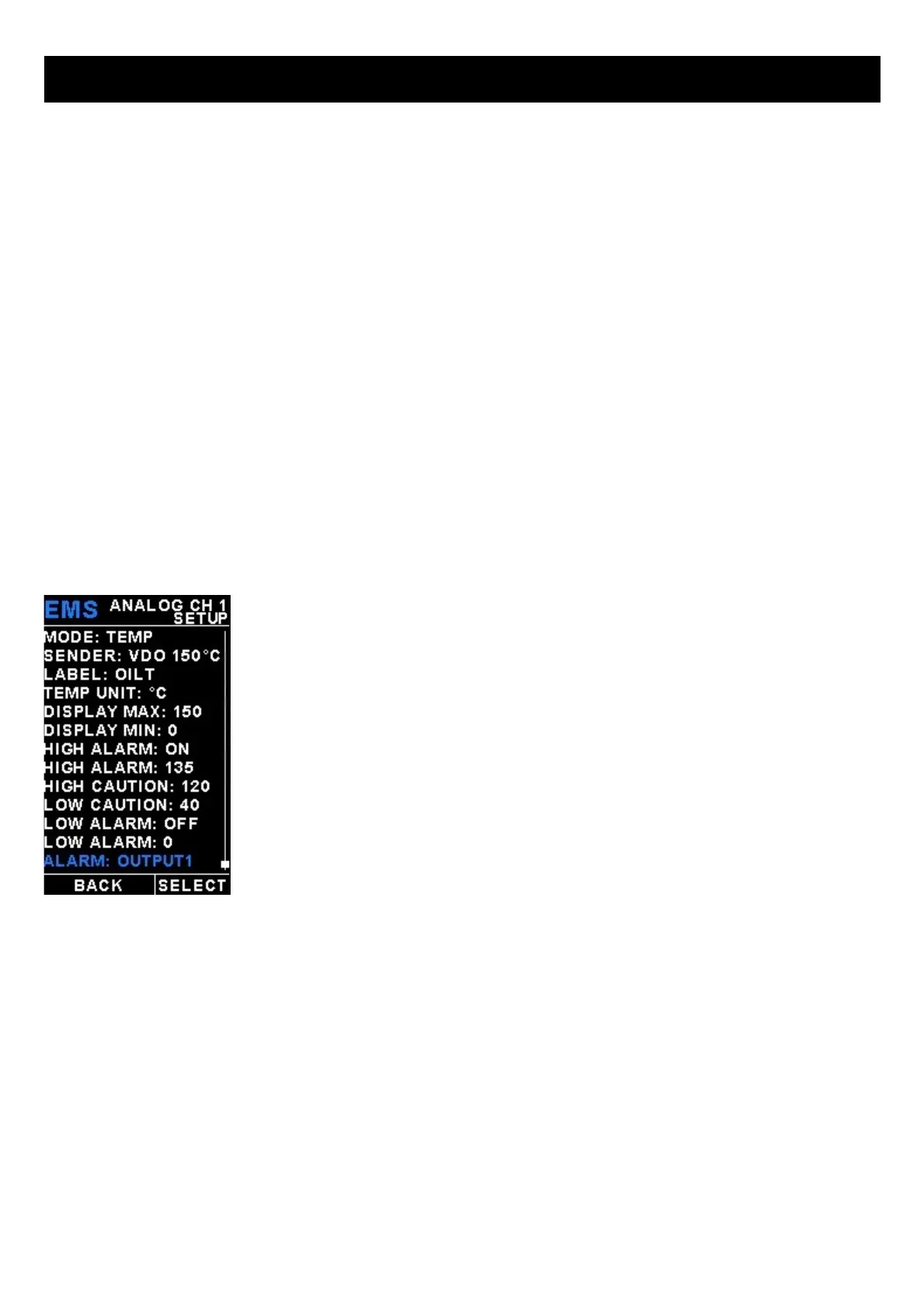

4.3.2 Temperature Setup
Mode:
Select the function for the analog channel. Options are “PRESSURE”, “TEMP” or “OFF”.
Sender:
Select what type of sender you are using. Select “VDO 120” for a VDO 120 degree sender, “VDO 150” for a VDO 150
degree sender, “ECHLIN” for a ECHLIN TS920SA sender, “LM335” for the precision temperature sender or “USER” for a
custom sender.
If the sender type is set to “USER"
CALIBRATE SENDER:
If the sender type is set to “USER”, then use this menu option to calibrate your pressure sender. See section 4.3.3 for
more information.
