Madman EMS-3 Operating Manual Page 16

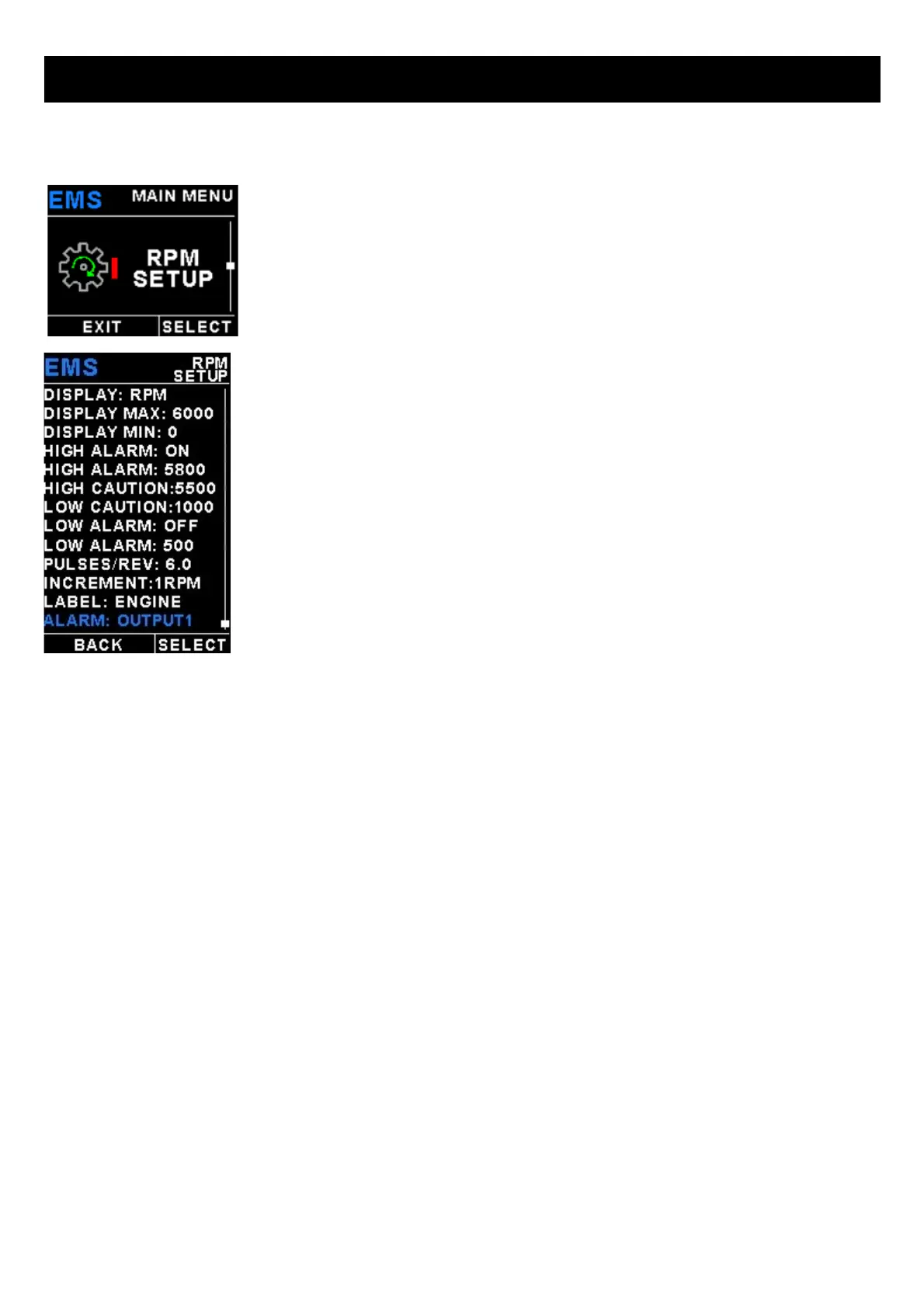

4.6 RPM Setup
Display:
Select if you want the RPM to be displayed in “RPM”, “PERCENT” or “OFF”.
RPM 100%:
Select the maximum value that you want the RPM to correlate to 100%. This is only shown if “Percent” is selected for
display.
Display Max:
Select the maximum RPM that you want the RPM dial to show. This can give you increased display resolution.
Display Min:
Select the minimum RPM that you want the RPM dial to show. This can give you increased display resolution.
High Alarm:
This enables or disables the RPM high alarm.
High Alarm:
Enter the RPM threshold for when the high alarm must be activated. Any RPM value above this value will activate the
alarm.
High Caution:
Enter the RPM value for the high caution. This is the lower value of the upper yellow band.
Low Caution:
Enter the RPM value for the low caution. This is the upper value of the lower yellow band.
