Madman EMS-3 Operating Manual Page 7

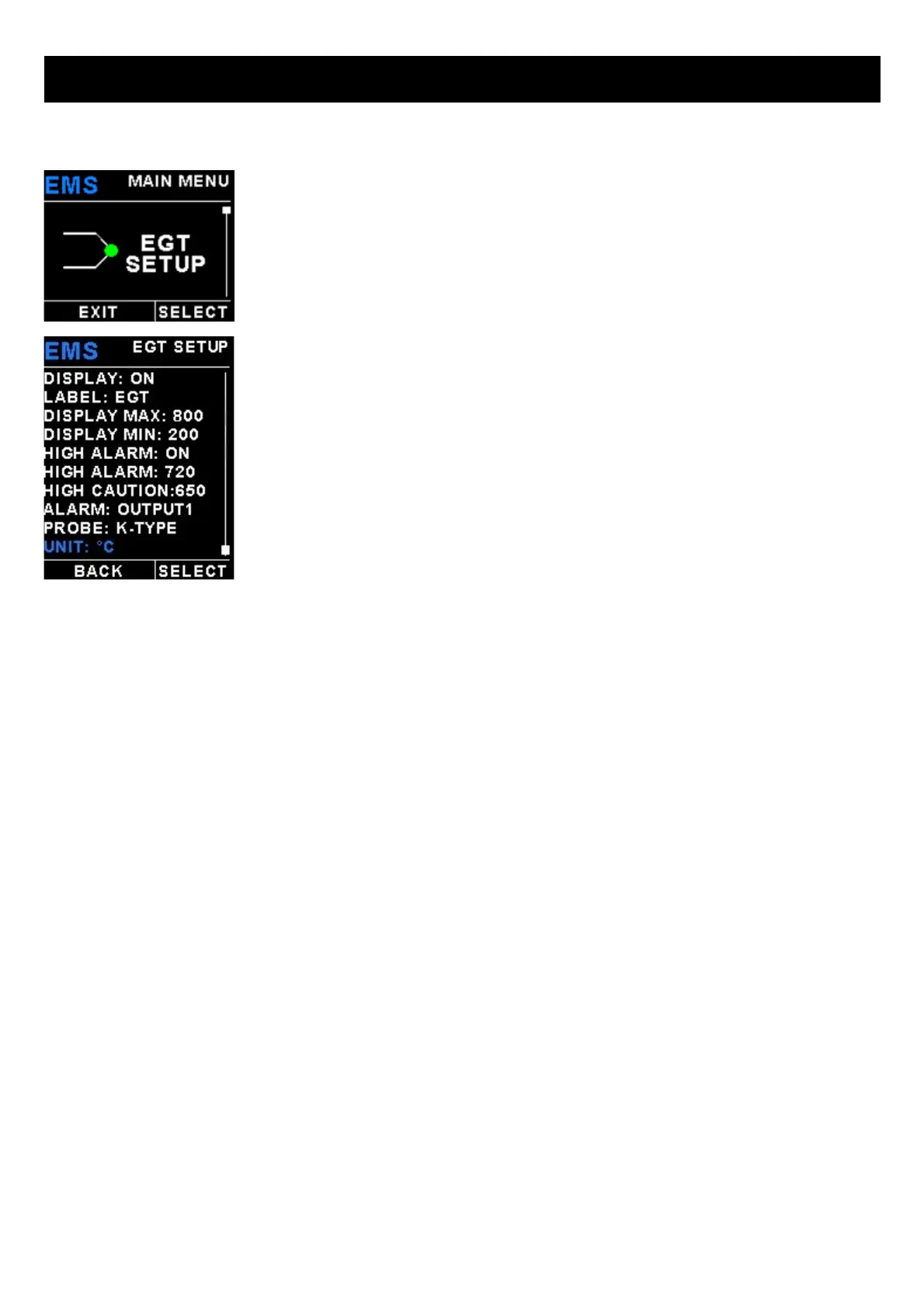

4.2 EGT (Exhaust Gas Temperature Setup)
Display:
Select "ON" to enable the EGT display.
Label:
Enter a label to suit your EGT Channel so you can easily identify it.
Display Max:
Select the maximum temperature that you want the EGT bargraph to show. This can give you increased display
resolution.
Display Min:
Select the minimum temperature that you want the EGT bargraph to show. This can give you increased display resolution.
High Alarm:
This enables or disables the EGT high alarm.
High Alarm:
Enter the temperature threshold for when the high alarm must be activated. Any temperature above this value will activate
the alarm.
High Caution:
Enter the temperature value for the high caution.
Alarm:
Select which output the alarm must activate.
