(2) Outline of FLOW ADJ (Flow-control)

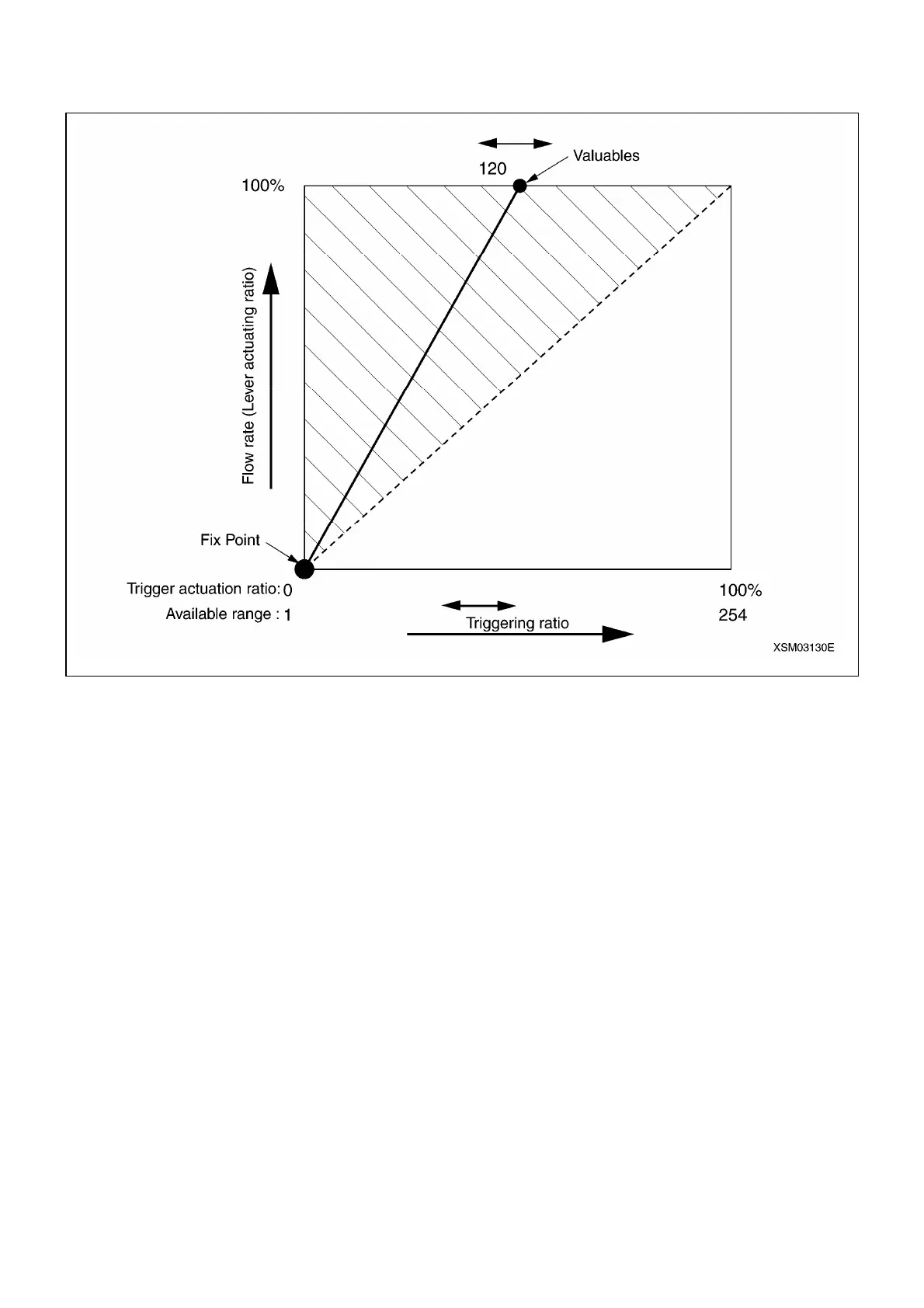

The graph below shows the correlation with triggering ratio:
Available range: 1 to 254
Value at the time of factory shipment: 120
Result
When this value is increased, the timing of the flow rate (lever) to be maximum point shall become late, against triggering ratio
Caution:
Due to dispersion of each valve or power transformer, it may miss-function when the value is set to “0”. It should stay “20” at the
minimum for proper operation.
