3. Adjustment of (8) VR ON and (9) FLOW ADJ
Actuation range of the Accelerator may be changed, by adjusting (8) VR ON (Accelerator ON position) and (9) FLOW ADJ
(Flow-control) as described above

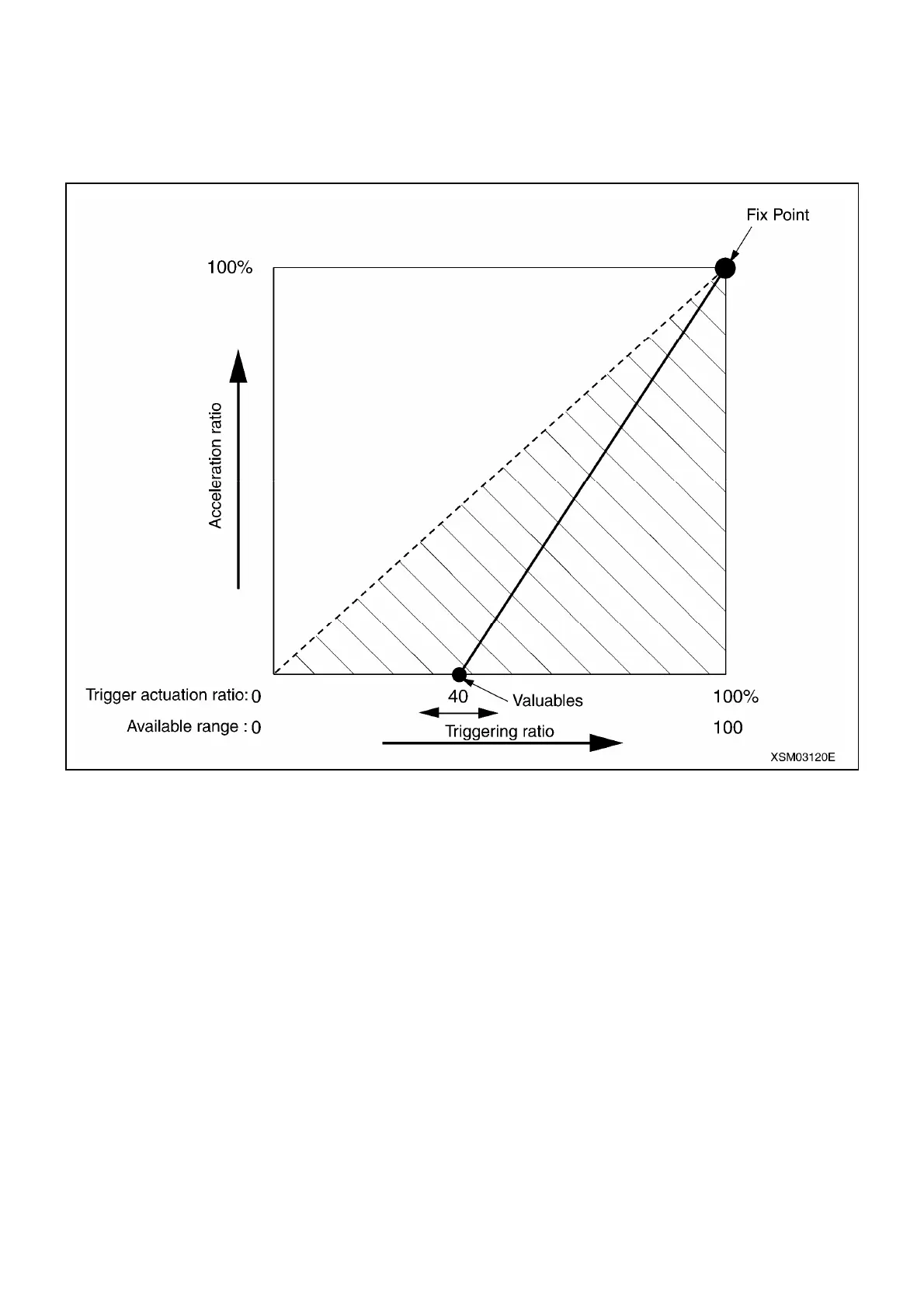

(1) Outline of VR ON (Accelerator ON position)
Available range: 0 to 100
Value at the time of factory shipment: 40
Result
When this value is increased, the timing of the accelerator to be ON position shall become late, against triggering ratio
Caution:
Due to dispersion of each valve or power transformer, it may miss-function when the value is set up to “100”. It should remain up to
“70” or below for proper operation.
