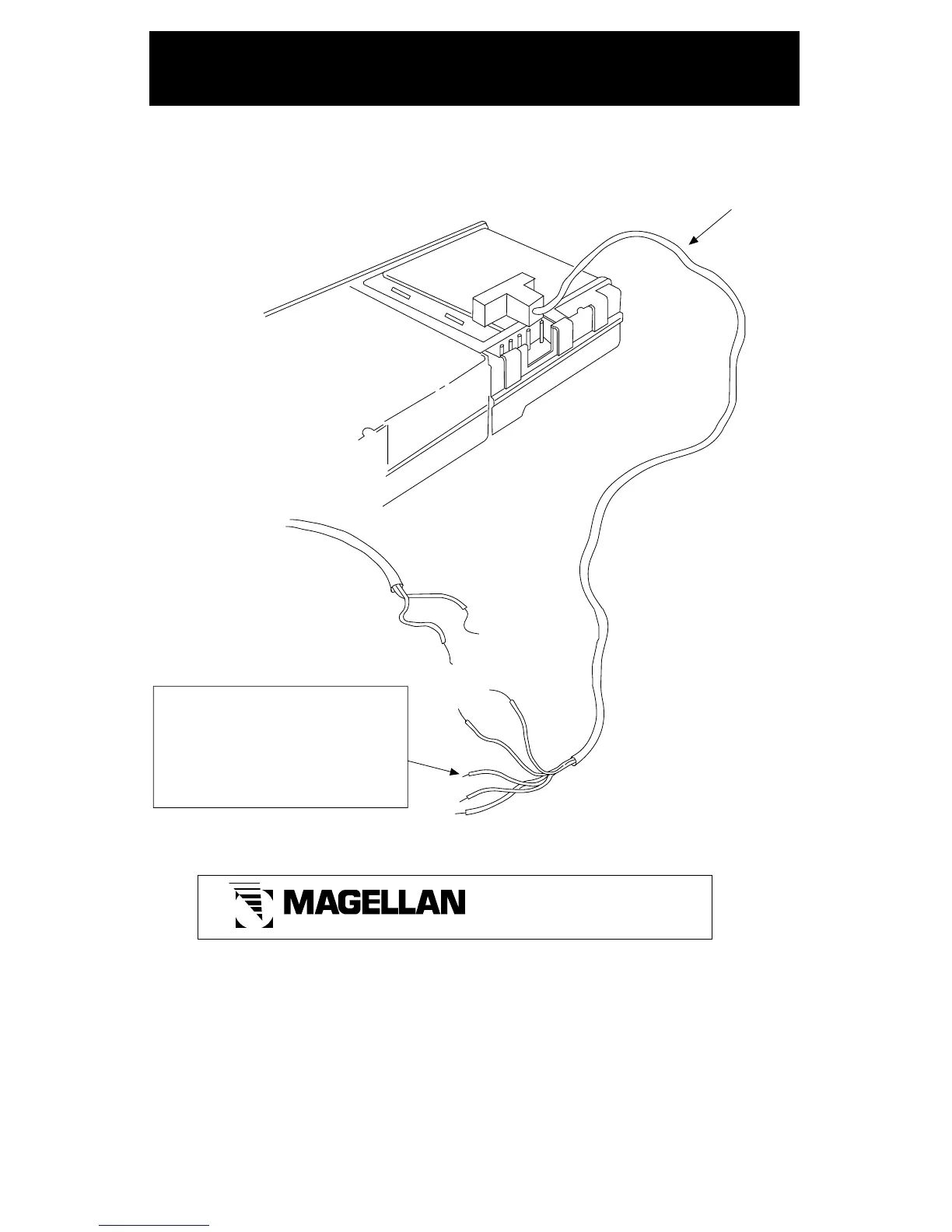

Power/Data Cable Instruction Sheet
22-60067-001
(–)
(–)
(+)
(+)
DC POWER SOURCE
(10 – 35 VDC)
or
Magellan Cigarette
Lighter Adapter connected to
10 – 35 VDC power source
[Black with white strip wire is
positive]
Black
Red
Red
Black
Orange
Yellow
White
Power (+)
Power (–) NMEA (-)/DBR (-)
NMEA (+)
DBR + (Optional)
External Alarm, (optional on
some models)
Power/Data
Cable
SYSTEMS CORPORATION
960 Overland Court
San Dimas, California 91773
(909) 394-5000
Warning - Attach the power/data cable to the port of the black Trailblazer XL, Part
No.00-62006-003 and the Black Meridian XL, Part No. 00-12004-000 ONLY.
